Echo CLS-5000 - Clearing Saw Gear Case, Shield ,Tools Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• CLS-5000 - Echo Clearing Saw
• Gear Case, Shield ,Tools

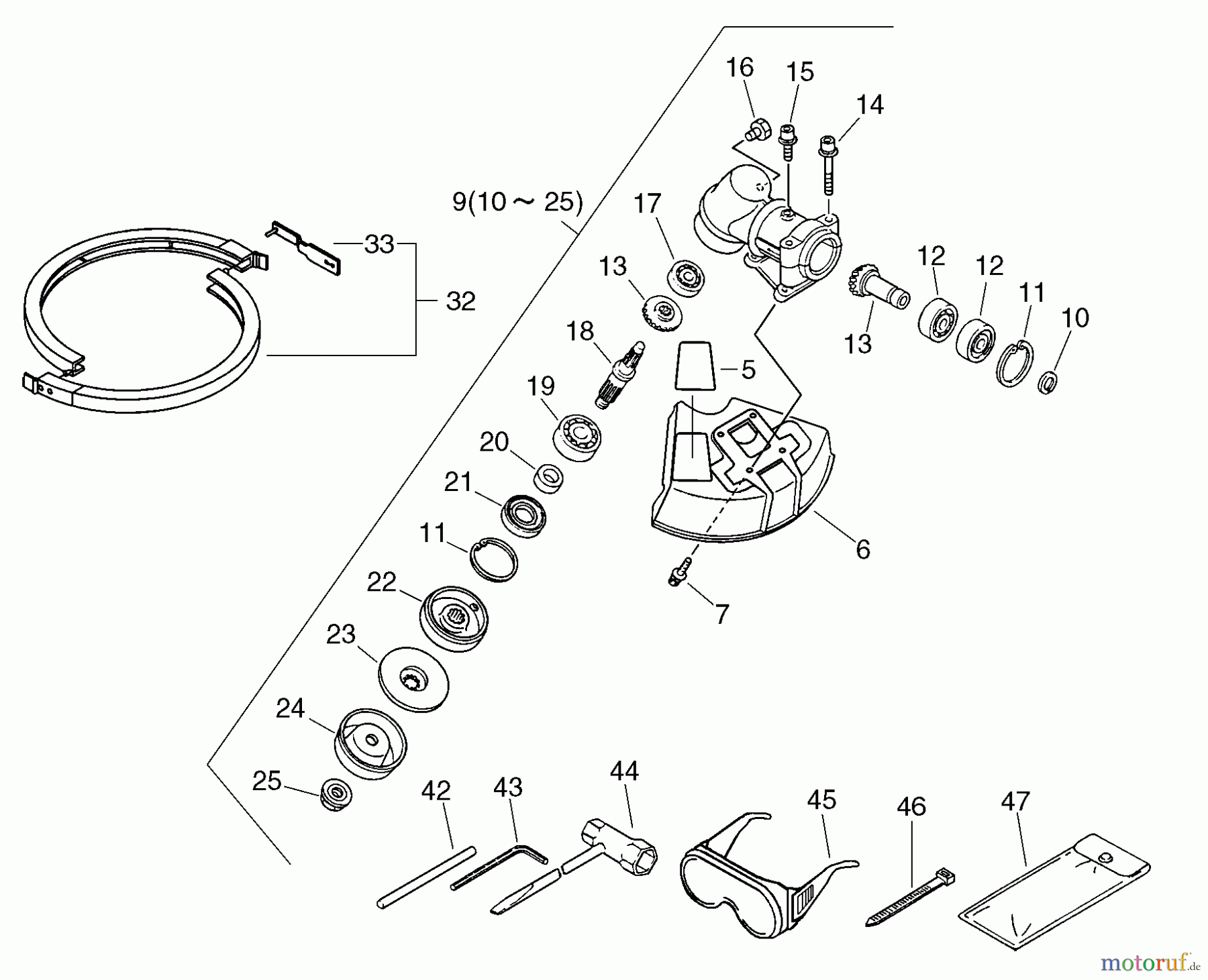

Gear Case, Shield ,Tools CLS-5000 - Echo Clearing Saw

Pos		Article Number	Description
5		16890168-41031
6		16699010-54530
7		16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
9		16-610400-51530	Zsb. Winkelgetriebe CLS-4600
10		16-900701-00015	Seegerring außen 15mm
11		16-900702-00035	Seegerring, innen, 35mm
12		16-900810-06202	Kugellager BCLS-580
13		16-610300-47530	Getriebesatz
14		16-900162-05035	Schraube CLS-5010/CS-5501/SRM-
15		16-900162-05014	Schraube M 5x14
16		16-610434-50031	Schraube(Eisen), M8
17		16-900800-36001	Kugellager,NSK (Nipppon
18		16-610310-51530	Schaft CLS-4600/4610/5010
19		16-900813-06202	Lager
20		16-610334-06230	Distanzring
21		16-610413-47530	Simmering CLS-4610, CLS-5010
22		16-610313-47530	Fixierplatte CLS 4600
23		16-610314-51530	Druckplatte
24		16-610352-47530	Gleitteller
25		16-610320-47530	Mutter M12 CLS-4610/-5010
32		16898503-54530
33		16898562-22530
42		16-897518-01131	Blockierwerkzeug
43		16-895610-00130	Imbusschlüssel - 4mm
44		16-895410-08030	Kombischlüssel
45		16102922051
46		16-178121-43230	Band PB-500
47		16-898510-39130	Werkzeugtasche
