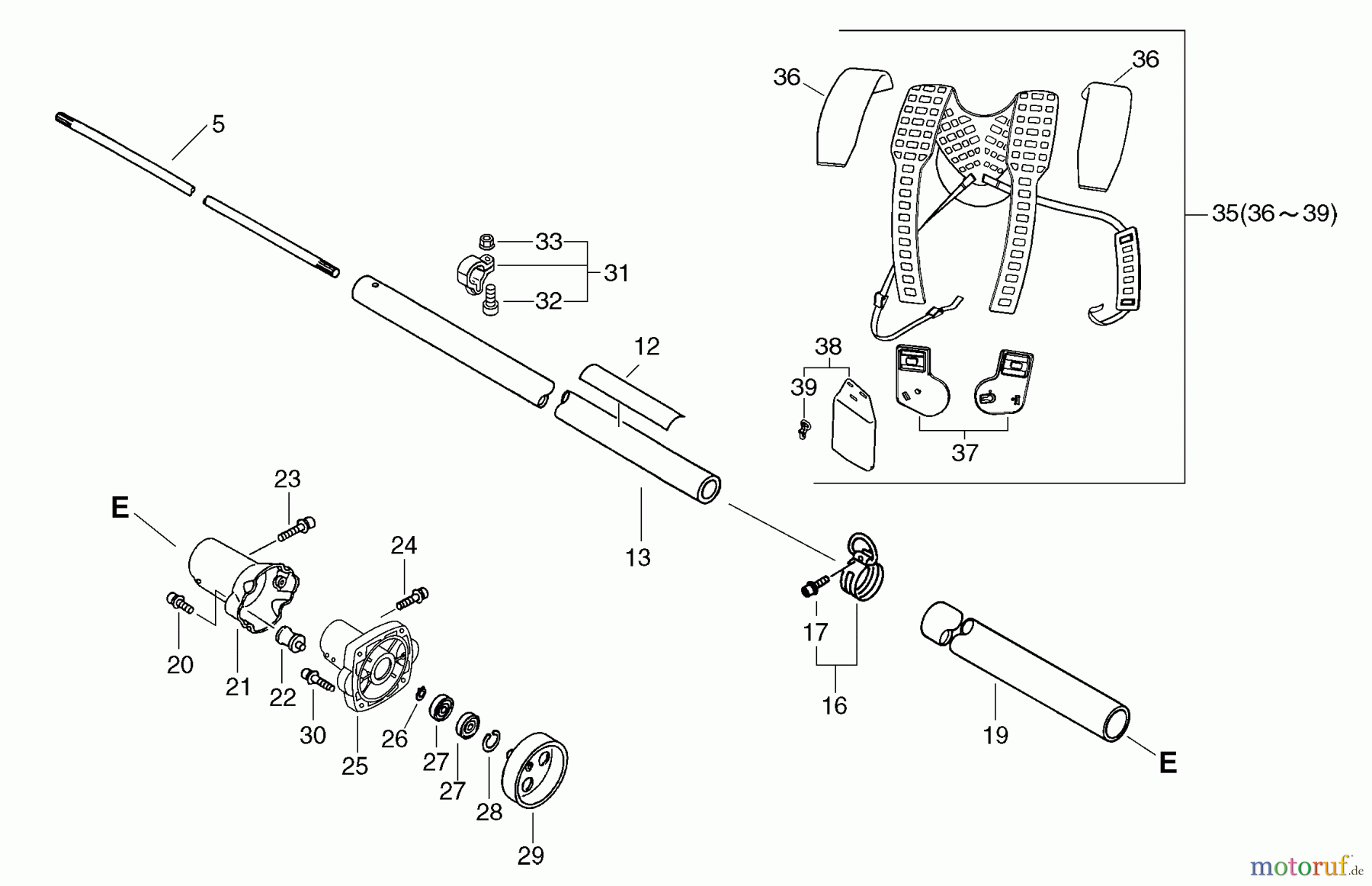

Pipe, Harness CLS-5000 - Echo Clearing Saw

Pos		Article Number	Description
5		16-610011-47530	Antriebswelle 1470lg CLS-4600
12		16890317-49030
13		16-C050-000600	ZSB-Gestänge CLS-4600, CLS-
16		16P021012710
17		16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
19		16-610258-47530	Schaftgehäuse
20		16-900162-05014	Schraube M 5x14
21		16-A575-000030	Halterung, Gestänge CLS-5010
22		16-100905-51530	Puffer
23		16-900162-05035	Schraube CLS-5010/CS-5501/SRM-
24		16-900162-05030	Schraube CS-3500,-3501, SRM-
25		16-A570-000040	Kupplungsgehäuse CLS-5010
26		16-900701-00015	Seegerring außen 15mm
27		16-900819-06202	Kugellager
28		16-900702-00035	Seegerring, innen, 35mm
29		16-A556-000290	Kupplungstrommel CLS-5010
30		16-900162-05025	Schraube 5x25 CS-5100/PB-46LN/
31		16-P021-004830	Halterung, Kabelschutz CLS-
32		16-900162-05022	Schraube CS-3500,-3501,SRM-
33		16-900516-00005	Mutter CS-3500,PB 6000,-500,
35		1699999999999
36		16P022-000880
37		16P022-000890
38		16P022-000900
39		16P022000900
