Echo GT-2400 - String Trimmer Carburetor S/N: 103575_Up Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• GT-2400 - Echo String Trimmer
• Carburetor S/N: 103575_Up

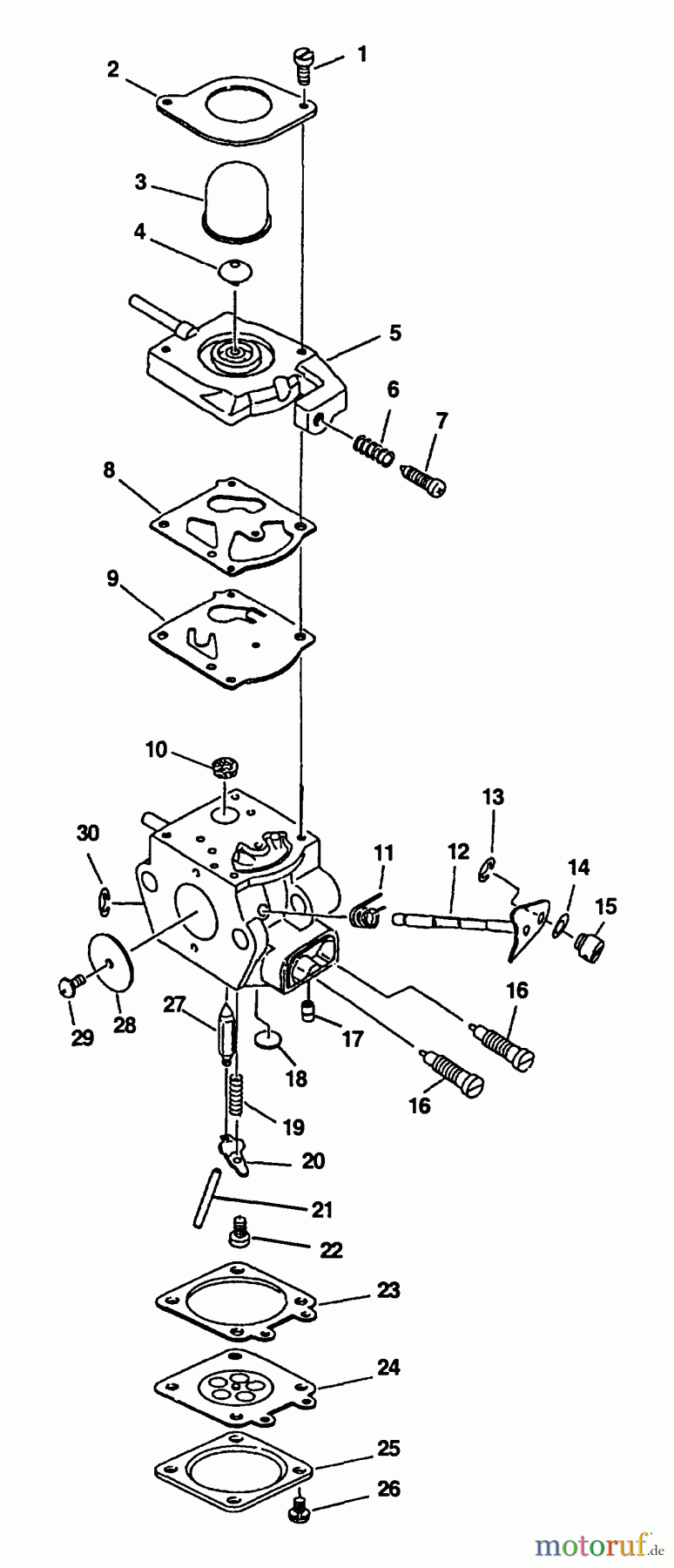

Carburetor S/N: 103575_Up GT-2400 - Echo String Trimmer

Pos		Article Number	Description
		16-123000-52132	Vergaser HCA-2400 GT-2400 ,
1		16-123110-43130	Schraube
2		16-123142-09560	Deckel PPT-2400
3		16-123181-40630	Pumpe, Primer DH2200ST/PB-500/
4		16-123171-35630	Nippel HCA-2500, PB-24LN, PPT-
5		16-123124-43230	Vergaserdeckel HCA-2400
6		16-123133-04260	Feder CS-2600/3700/452GS/PB-
7		16-123134-04260	Einstellschraube
8		16	16
9		16	16
10		16	16
11		16-123113-52130	Feder HCA-2400
12		16-123117-52130	Gasgestänge HCA-2400, GT-2150
13		16-123173-07930	Clip DH2200ST/EA-410/PPT-300ES
14		16-123149-26030	Scheibe 452GS/CSG-6700/PB-500
15		16-123172-26030	Führung, Gaszug CLS-4610, HCA-
16		16-123120-52131	Einstellnadel HCA-2400 ab
17		1612318752130
18		16	16
19		16	16
20		16	16
21		16	16
22		16	16
23		16	16
24		16	16
25		16-123142-03930	Deckel CS-2600/3700/SRM-320/
26		16	16
27		16	16
28		16-123116-52130	Drosselklappe HCA-2400
29		16-123114-03930	Schraube
30		16-123127-15030	Ring CS-2600/3700/6702/452GS/
		16-123100-52130	Vergaserrep-Satz Walbro WT-424
		16-123101-52130	Membransatz Walbro WT-424 PPT-
