Echo GT-2400 - String Trimmer Intake, Air Cleaner Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• GT-2400 - Echo String Trimmer
• Intake, Air Cleaner

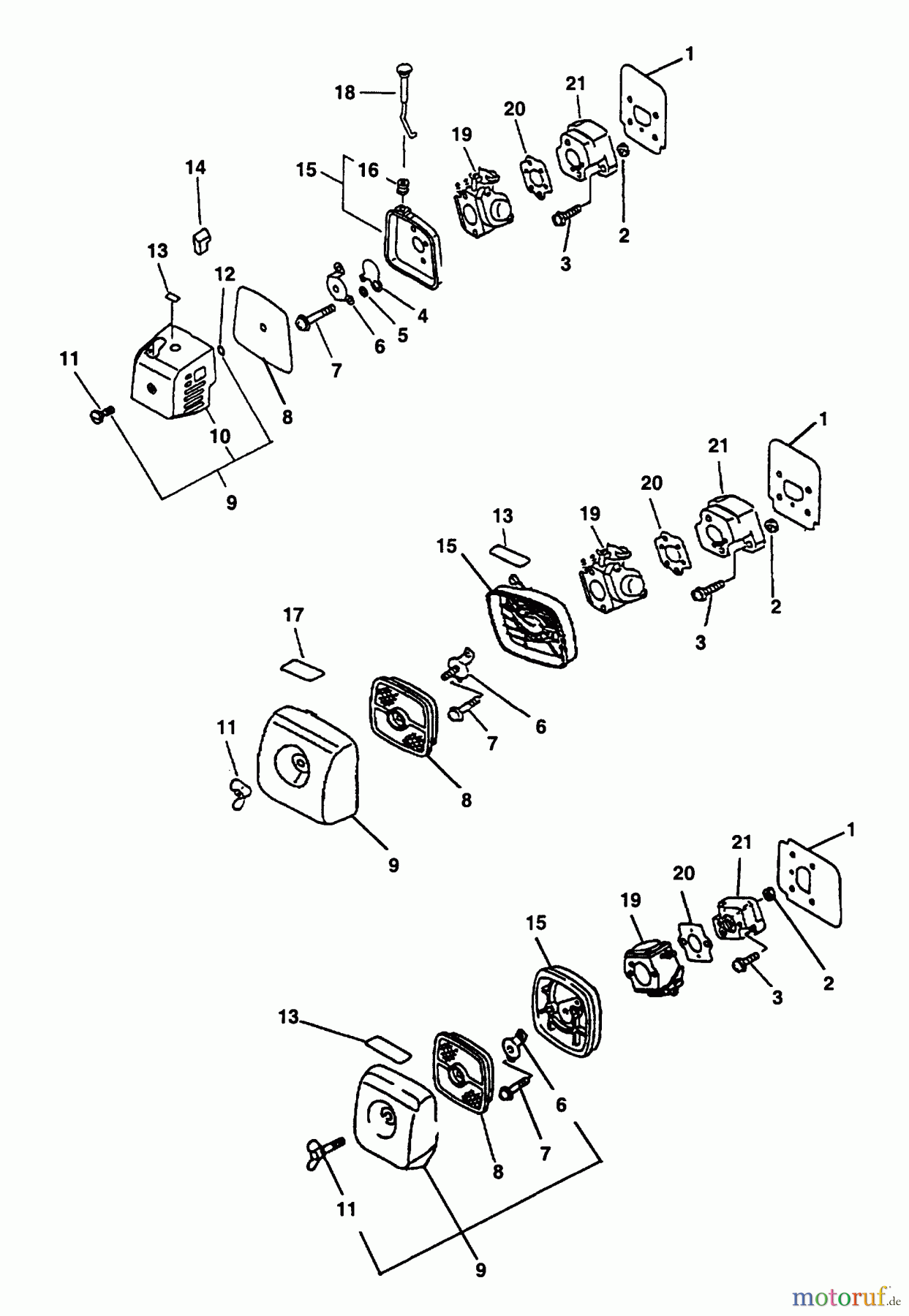

Intake, Air Cleaner GT-2400 - Echo String Trimmer

Pos		Article Number	Description
1		16-V103-001360	Dichtung, Ansaugleitung SHR-
2		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
3		16-900238-05020	Schraube 5x20
4		16-178515-04560	Chokeklappe
5		16-178516-00830	Distanzring GT-2150, HCA-2500,
6		16-130410-44730	Halterung, Luftfilter
6		16-129011-05060	Halterung
6		16-129011-06361	Halteplatte HC-1500, GT-2400,
7		16-900242-05057	Schraube PB/HC
7		16-900242-05065	Schraube
8		16-130310-04560	Luftfilter (weiß) ES-10<027687
8		16-A226-001410	Luftfilter mit Gummirand HC-
9		16-130302-50630	Luftfilterdeckel
9		16-130313-06561	Luftfilterdeckel HC-1600
9		16-130302-06561	Luftfilterdeckel HC-1600
10		16-130313-50630	Luftfiltergehäuse SRM-2455S
11		16-130415-40630	Schraube
11		16-900528-00005	Flügelmutter
11		16-210417-52730	Flügelschraube HC-2300W/-2400/
12		16-900720-00004	O- Ring/SHR-170SI
13		16-X506-000070	Aufkleber CHOKE HCR-1510
13		16-890121-06360	Aufkleber CHOKE
14		16-130336-52130	Dämpfer SRM-2450, SRM-2455
15		16-130301-04560	Luftfiltergehäuse
15		16-P021-002921	Luftfiltergehäuse grau HC-
16		16-178810-05230	Dichtring HCA-2500, HCR-1510,
17		1689018706960
18		16-178510-48830	Chokegestänge
19		1612520013313
19		16-123000-52132	Vergaser HCA-2400 GT-2400 ,
20		16-130016-42031	Dichtung(Papier)
21		16-130017-42031	Zwischenflansch HC-2400, SRM-
		16-889000-05063	Dichtungssatz ES-2000/PB-1000
		1690008
