Echo PAS-211 - Power Unit Fan Housing Assembly, Clutch, Ignition Spareparts

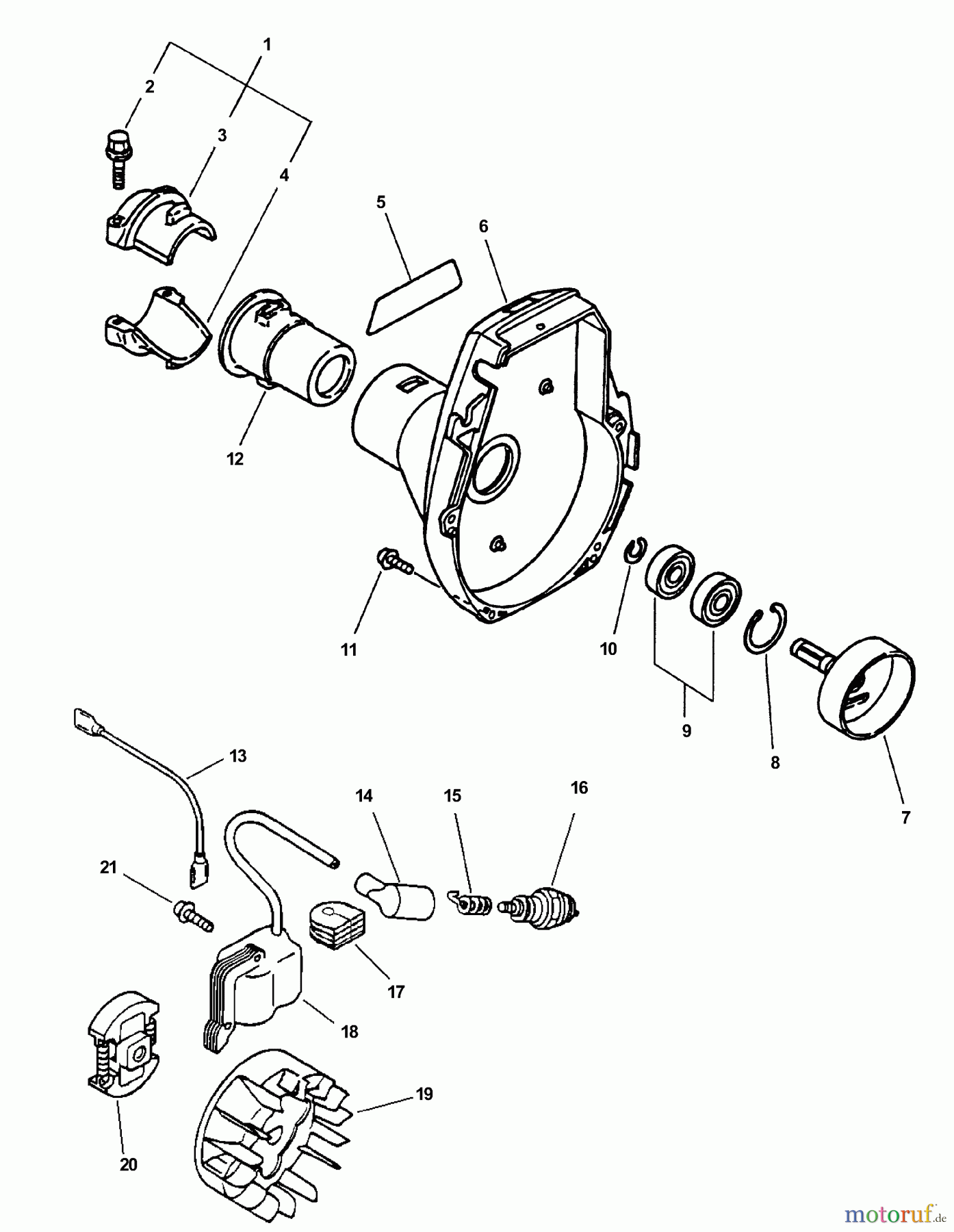

Fan Housing Assembly, Clutch, Ignition PAS-211 - Echo Power Unit

Echo Trimmer, Faden / Bürste PAS-211 - Echo Power Unit Fan Housing Assembly, Clutch, Ignition
PosArticle NumberDescription
1 16-610903-55230Gestängehalterung SRM-2100SB
2 16-900142-05025Schraube HCA-2400, PAS-2400,
3 16-610922-27432Halter HCA-2410
4 16-A575-000100Halterung unten, Gestänge,
5 16X503001390
6 16-101503-52131Kupplungsgehäuse HCA-2410
7 16-175005-48931Kupplungstrommel HCA-2400/2410
8 16-900702-00028Seegerring, innen, 28mm
9 169405106001
10 16-900701-00012Seegerring außen 12mm
11 16-900163-04016Schraube
12 16-610910-55230Gummilager HCA-2400/2410
13 16-V485-001080Kabel CS-310ES
14 16-159012-01620Zündkerzenkappe SRM-2010, CS-
15 16-159011-03432Kontaktfeder CS-2600/4200/PB-
16 16-159010-10630Zündkerze
17 16-156112-40630Dichtring/T-226
18 1615660152131
19 16-A409-000100Polrad HCA-2410/WP-1000/HC-
20 16-175000-56831Kupplung SRM-220ES/T-226
21 16-900162-04022Schraube (10)
