Echo SRM-1501 - String Trimmer, S/N:0083387 - 0135000 Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Spareparts

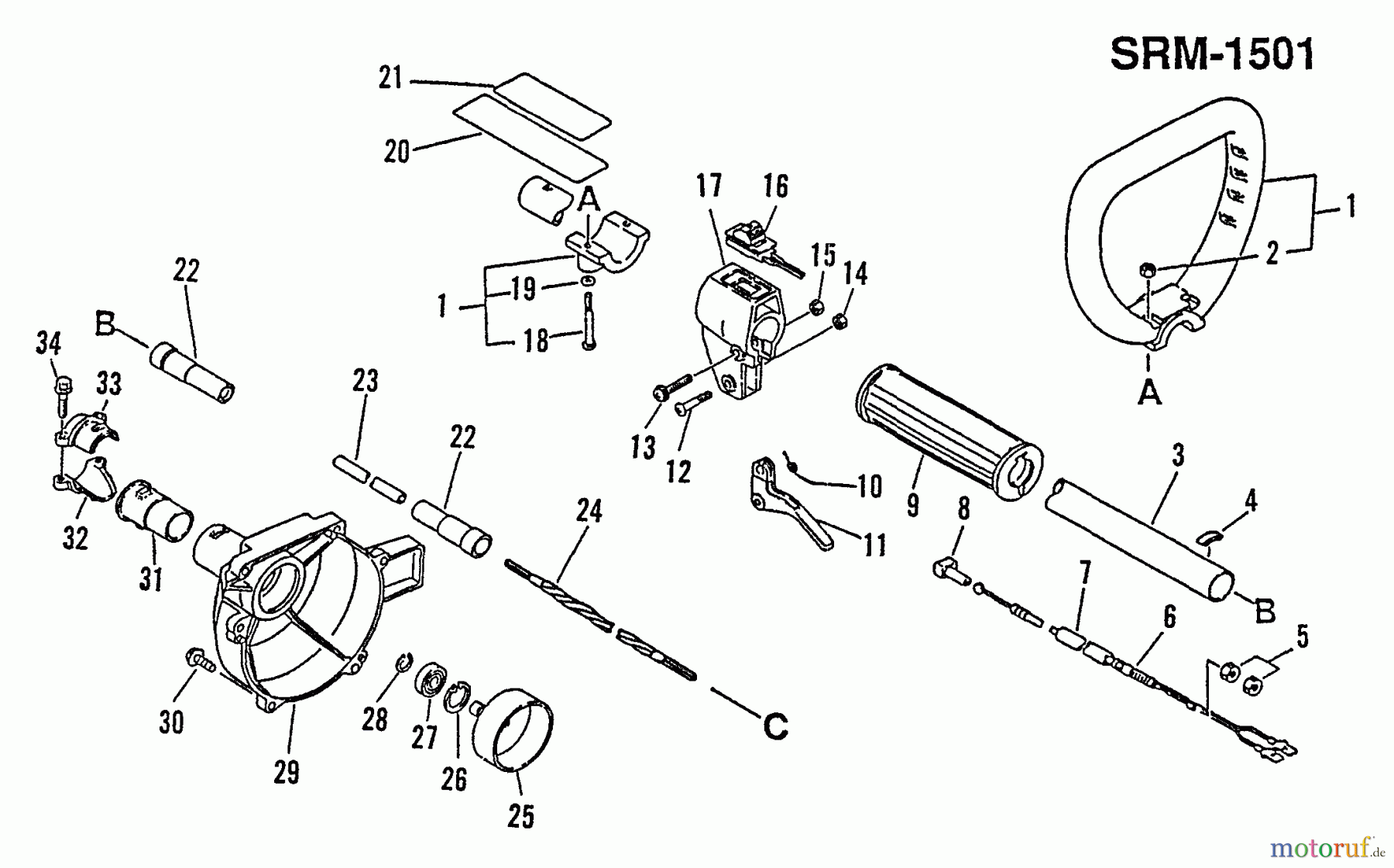

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing SRM-1501 - Echo String Trimmer, S/N:0083387 - 0135000

Echo Trimmer, Faden / Bürste SRM-1501 - Echo String Trimmer, S/N:0083387 - 0135000 Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing
PosArticle NumberDescription
1 16-351201-08930Zsb. Griff
2 16-900500-00005Mutter PPT-300ES/T-226 EDR-
3 16-610609-44730Gestänge
4 16-890152-04930Aufkleber
5 16-900502-00006Mutter SRMF-340 6 (3N)
6 16-178001-44430Gaszug GT-2400/HCA-2400/SRM-
7 16-178127-24030Tülle
8 16-178048-05630Halterung RM-310, SRM-200AE,
9 1635101244730
10 16-178043-06930Feder RM-310, SRM-200AE, SRM-
11 1699999999999
12 16-178110-05330Schraube
13 16-900242-05030Schraube
14 16-900560-00005Mutter M5, selbstsichernd (10)
15 16-900500-00005Mutter PPT-300ES/T-226 EDR-
16 16-163401-55631Stop-Schalter PPT-2100,PPT-
17 1617802449230
18 16-900220-05040Schraube
19 16-900600-00005Scheibe PB-500/452GS/DH2200ST
20 1689016052730
21 1689016049630
22 16-610246-44730Führung HCA-2400
23 16C507000260
24 16-C506-000390Antreibswelle flexibel C-225S
25 16-175005-42030Kupplungstrommel PPT-2100/-
26 16-900702-00028Seegerring, innen, 28mm
27 16-94054-06201Kugellager
28 16-900701-00012Seegerring außen 12mm
29 1610153548930
30 16-900238-04016Schraube 4x16
31 16-610910-27832Gummilager SRM 2450
32 16-610923-27432Halter
33 16-610922-27432Halter HCA-2410
34 16-900142-05025Schraube HCA-2400, PAS-2400,
