Echo SRM-201F - String Trimmer Driving Gear and Shaft Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• SRM-201F - Echo String Trimmer
• Driving Gear and Shaft

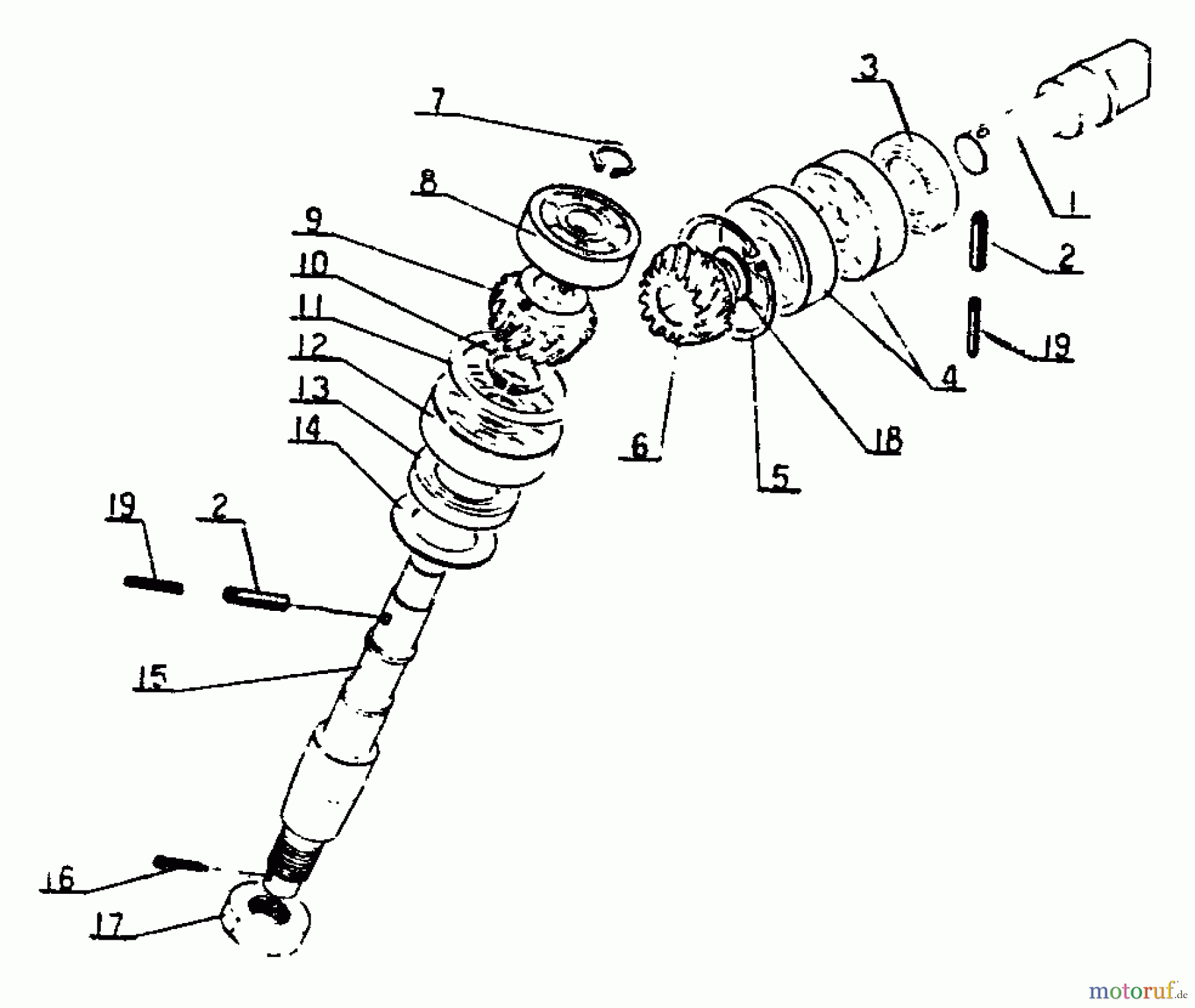

Driving Gear and Shaft SRM-201F - Echo String Trimmer

Pos		Article Number	Description
		16EK6104000
1		16EK6103240
2		16EK6103220
3		16AK6104190
4		16BB6200
5		16-900702-00030	Seegerring, innen, 30mm
6		16EK6103110
7		16-900706-00009	Haltering 9 (10) SRM-200BE,
8		16-900803-00609	Kugellager
9		16EK6103120
10		16-900706-00012	Haltering PPT-300ES
11		16EN6103160
12		16-94035-36201	Kugellager EA-410/SHR-170SI
13		16EK6104130
14		16EN6104160
15		16EK6103100
16		16-900300-20022	Splint PAS-2400, RMA-2530, RM-
17		16EK6103200
18		16EK6103170
19		16EK6103230
