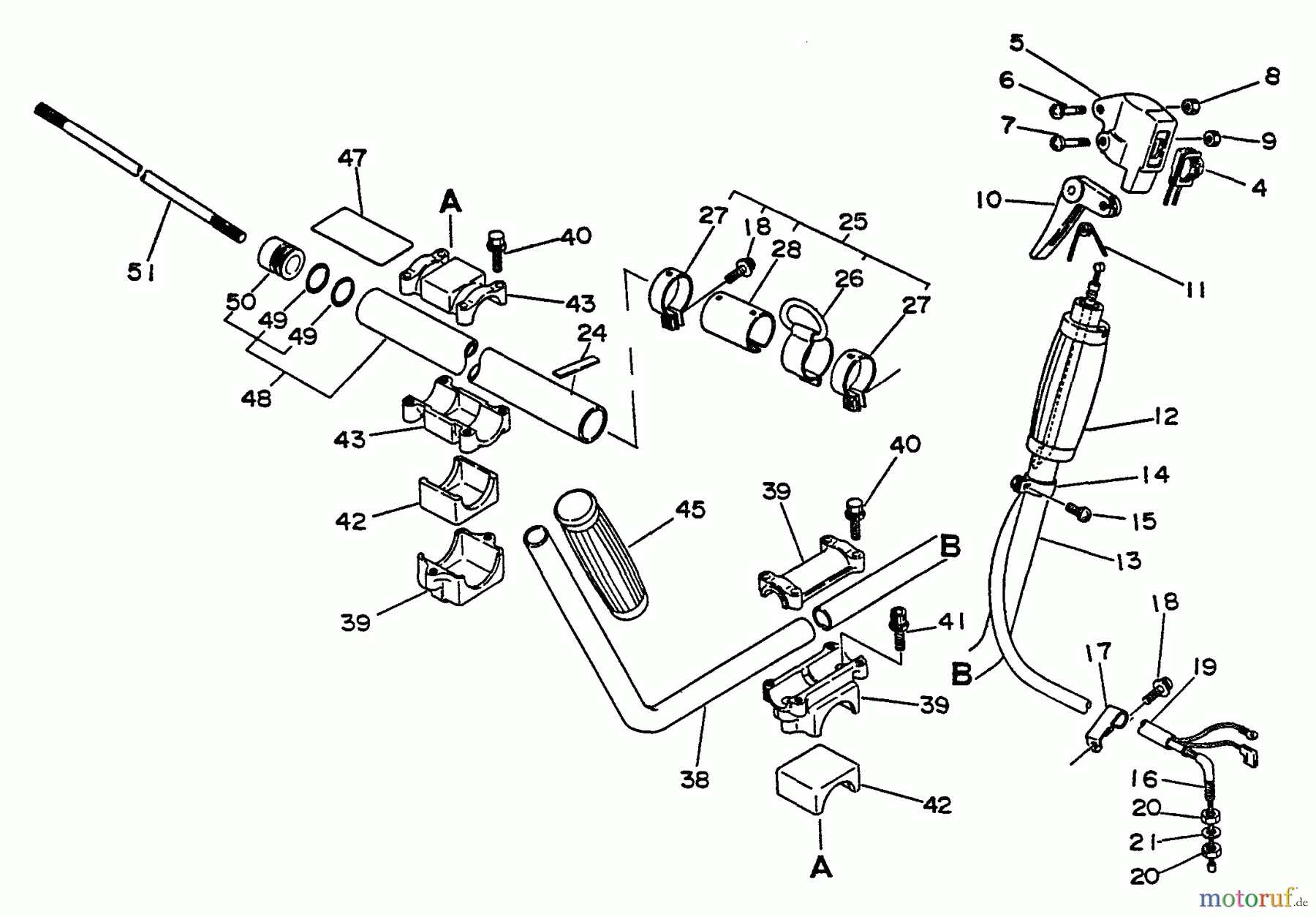

Echo SRM-400BE - String Trimmer Driveshaft, Handles, Ignition Switch, Throttle Spareparts

Driveshaft, Handles, Ignition Switch, Throttle SRM-400BE - Echo String Trimmer

Echo Trimmer, Faden / Bürste SRM-400BE - Echo String Trimmer Driveshaft, Handles, Ignition Switch, Throttle
PosArticle NumberDescription
4 1616340124530
5 1617802441830
6 16-178110-05330Schraube
7 16-900220-05025Schraube
8 16-900560-00005Mutter M5, selbstsichernd (10)
9 16-900500-00005Mutter PPT-300ES/T-226 EDR-
10 16-178010-05330Gashebel
11 16-178043-05230Feder
12 16-351315-22130Handgriff
13 16-351010-05530Griff
14 16-178106-05330Band
15 16-900220-05010Schraube
16 1699999999999
17 16-178111-06230Clip SRM-2655, SRM-310E
19 16V475002270
20 16-900502-00006Mutter SRMF-340 6 (3N)
21 16-900600-00006Scheibe
24 16-890152-04930Aufkleber
25 16-301200-06230Aufhänger 28MM Rohr
18 1690024005014
25 16-301200-06230Aufhänger 28MM Rohr
26 16-301207-05630Halterung
27 16-301224-06230Führung
28 16-301224-06230Führung
38 16-351210-05530Griffrohr links SRM-3800
39 1635130140530
40 16-900142-05025Schraube HCA-2400, PAS-2400,
41 16-900162-05025Schraube 5x25 CS-5100/PB-46LN/
42 1635133540530
43 1661060140530
45 16-351311-02330Griff SRM-2015,2305,2455,2655,
47 1689016044730
48 16-610206-04231ZSB-Gestänge Produktion
49 16-610112-04230Ring Produktion eingestellt !!
50 16-610105-04230Antriebsstück Produktion
51 16-610011-06230Antriebswelle SRM-3150, 4600
