Trennschneider, Cut-Off FUEL TANK #2 Spareparts

• Start
• Trennschneider, Cut-Off
• K750, 2009-07
• FUEL TANK #2

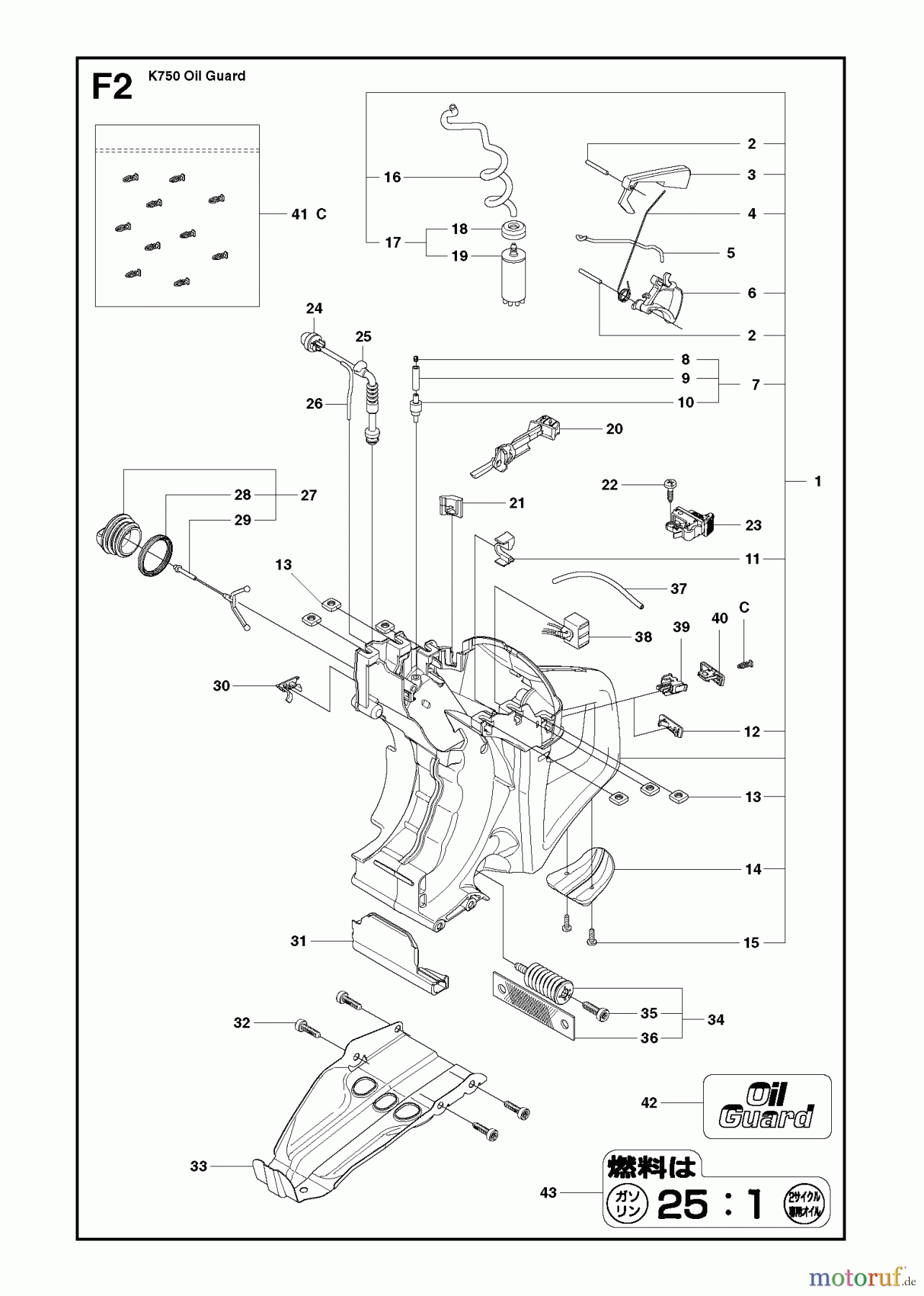

FUEL TANK #2 K750, 2009-07

Pos		Article Number	Description
1		506 38 65-08	BENZINTANK M.ENTLUEFTUNG
1		506 38 65-12	BENZINTANK KPL.
2		720 12 40-20	STIFT
3		506 22 28-02	GASSPERRE
3		506 22 28-03	GASZUG
4		506 37 95-01	FEDER
5		506 37 13-01	GASGESTAENGE
6		506 37 20-03	GASHEBEL
6		506 37 20-04	GASHEBEL
7		506 38 66-01	TANKENTLÜFTUNG
8		504 35 72-01	BENZINFILTER F.M-510
9		544 32 49-29
10		503 16 40-01	VENTIL
11		544 39 32-01	SCHLAUCHHALTER
12		501 37 13-01	SPERRE
13		503 22 65-04	MUTTER
14		506 38 67-02	BODENSTUETZE
15		503 21 45-16	SCHRAUBE
16		544 32 50-03	SCHLAUCH
17		506 26 41-11	BENZINFILTER
18		506 27 11-01	GEWICHT
19		506 26 41-01	FILTER
20		544 22 90-02	CHOKEHEBEL
21		506 37 80-01	FUEHRUNG
22		503 21 28-10	SCHRAUBE
23		506 31 86-02	STOPPSCHALTER
24		503 93 66-01	PRIMER
25		505 19 52-01	BREMSSCHLAUCH
26		537 04 24-14	BREMSSCHLAUCH L=50
27		506 25 59-03	TANKDECKEL KPL.
28		506 29 21-01	DICHTUNG
29		503 57 89-01	HALTER
30		506 39 46-02	HALTER F.TANK GRAU
31		506 38 15-01	SCHILD
32		503 21 54-20	SCHRAUBE
33		506 37 19-02	GRUNDPLATTE
34		537 21 03-07	VIBRATIONSDAEMPFER
35		544 06 12-01	SCHRAUBE
36		544 23 82-01	BAND
37		544 32 49-37	KRAFTSTOFFSCHLAUCH
38		544 38 41-01	ELEKTRONIKBOX
39		501 01 88-01	GEHAEUSE
40		501 01 94-01	SCHALTER
41		502 23 33-01	STIFT(10STUECK)
42		501 31 89-01	AUFKLEBER
43		506 31 30-01	Aufkleber
