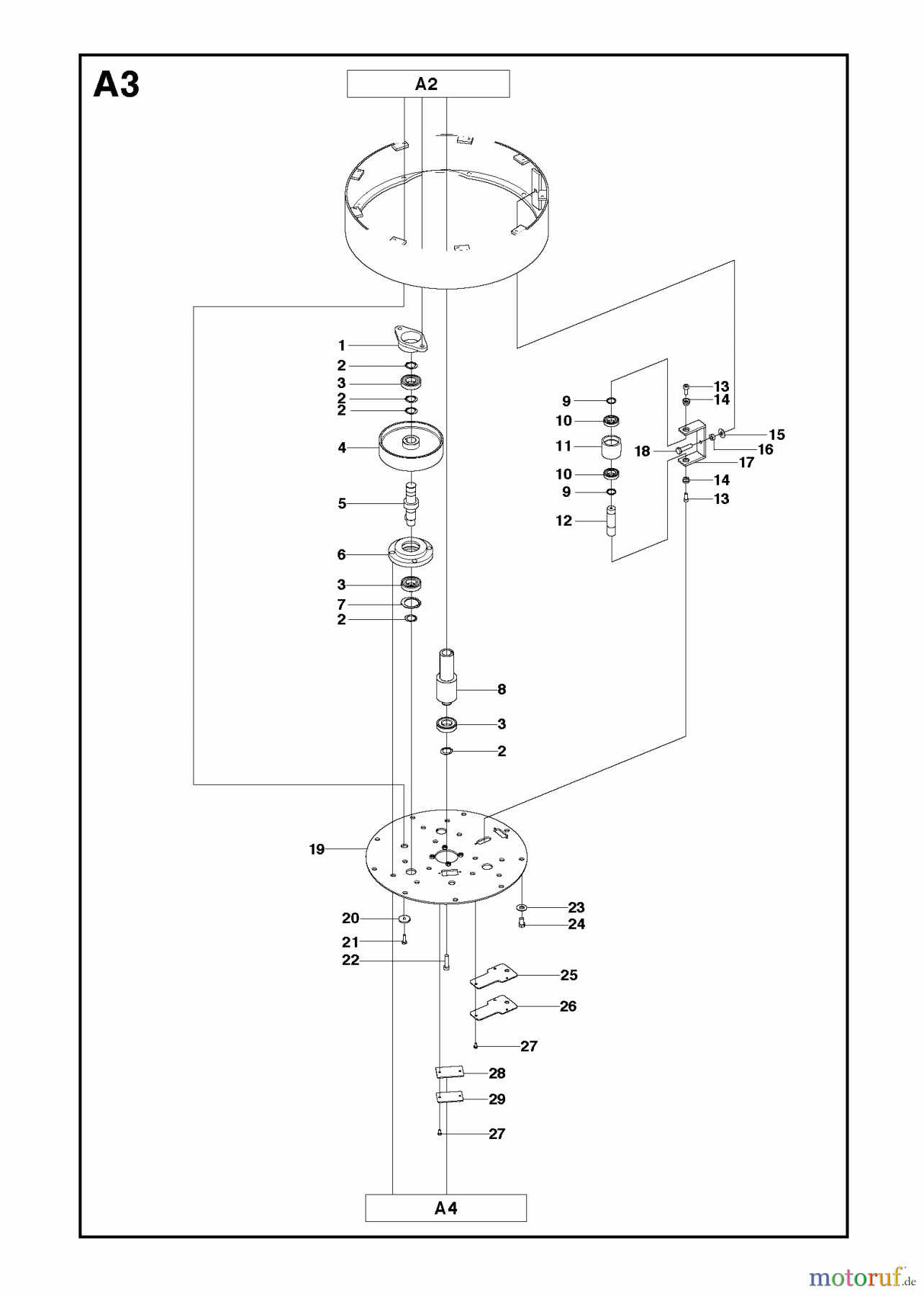

Grinding Head 2 PG 530, Machine 0904-01 and forward, 2010-02

Pos		Article Number	Description
1		502 56 07-01	MANDEL
2		735 31 30-00	FEDERRING
3		502 56 24-01	LAGER
4		502 56 00-01	RIEMENSCHEIBE
5		502 56 02-01	WELLE
6		502 56 06-01	MANDEL
7		502 56 33-01	SPRENGRING
8		502 56 01-01	RIEMENSCHEIBE
9		735 31 26-00	SPERRING
10		502 56 28-01	LAGER
11		502 56 04-01	RIEMENSCHEIBE
12		502 56 05-01	WELLE
13		725 54 51-01	SCHRAUBE M8X20
14		504 72 42-01
15		734 11 72-01	Scheibe 3/8
16		731 23 20-01	MUTTER
17		502 56 19-01	RAHMEN
18		725 24 99-71	SCHRAUBE M6S 10X40
19		502 56 12-01	PLATTE
20		543 04 66-47	SCHEIBE 8,5X35,8X3
21		725 24 51-76	SCHRAUBE M8x20 Hex FT 10.9
22		522 62 02-01	SCHRAUBE
23		734 11 78-01	SCHEIBE
24		725 25 34-71	SCHRAUBE
25		522 65 95-01	DICHTUNG
26		504 72 55-01
27		725 23 66-71	SCHRAUBE
28		516 05 85-01	DICHTUNG
29		504 72 79-01	ABSTANDSSTUECK
