Jonsered ST 2111 E (96191002204) - Snow Thrower (2008-09) DRIVE #3 Spareparts

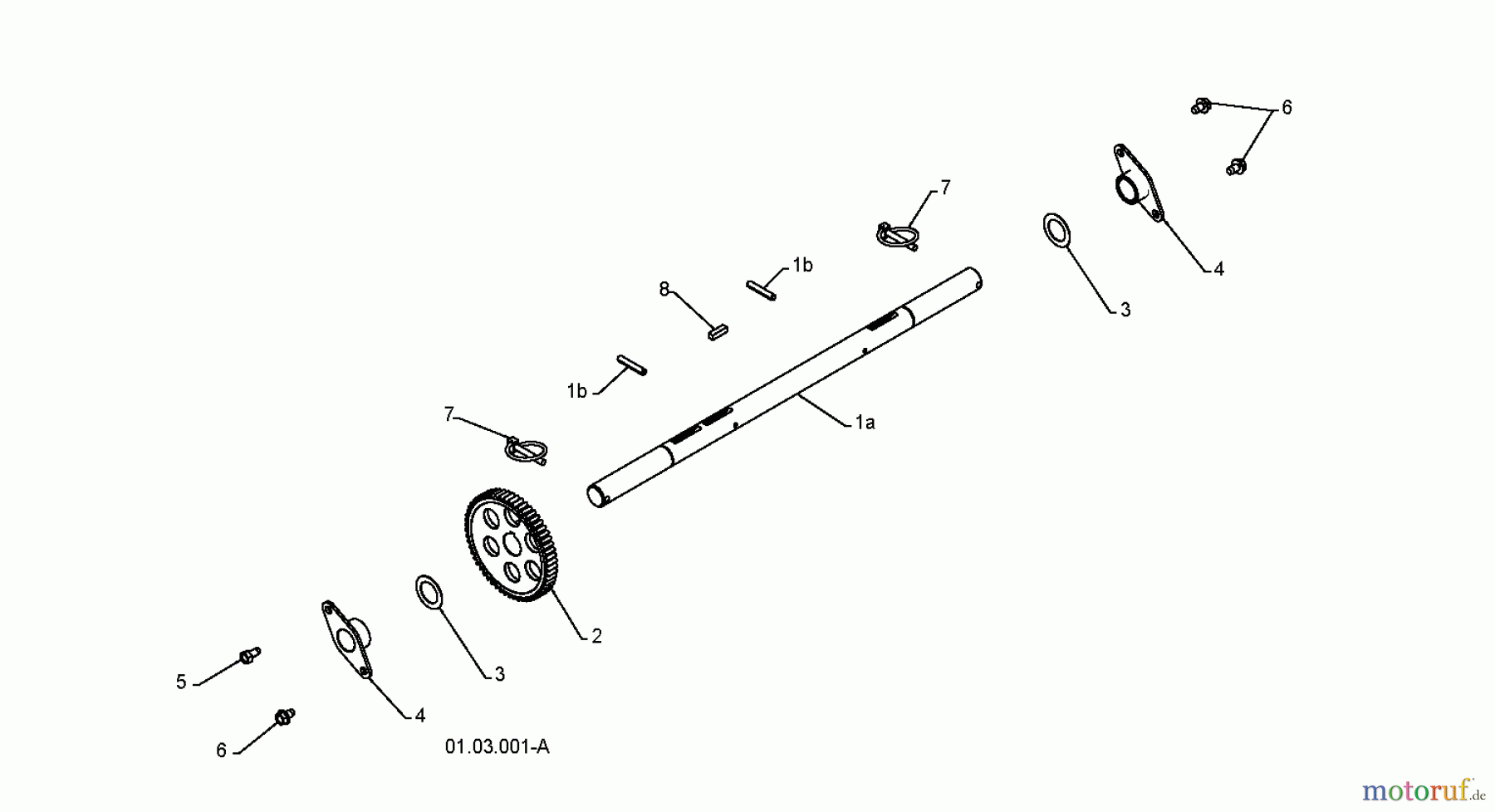

DRIVE #3 ST 2111 E (96191002204) - Jonsered Snow Thrower (2008-09)
| Pos | Article Number | Description | |
| 532 40 49-23 | ACHSE | ||
| 1a | 532 40 43-07 | WELLE | |
| 1b | 532 18 42-06 | STIFT | |
| 2 | 532 18 76-55 | GETRIEBE | |
| 3 | 532 00 73-96 | Scheibe | |
| 4 | 532 17 98-30 | LAGER | |
| 5 | 532 14 63-15 | SCHRAUBE | |
| 6 | 817 49 05-08 | SCHRAUBE | |
| 7 | 532 15 54-43 | STIFT | |
| 8 | 532 18 92-82 | KEIL | |
