Murray 1332PE (LP37059) (1696045) - John Deere 32" Professional Snow Thrower (2011) Auger Drive Group (2989120) Spareparts

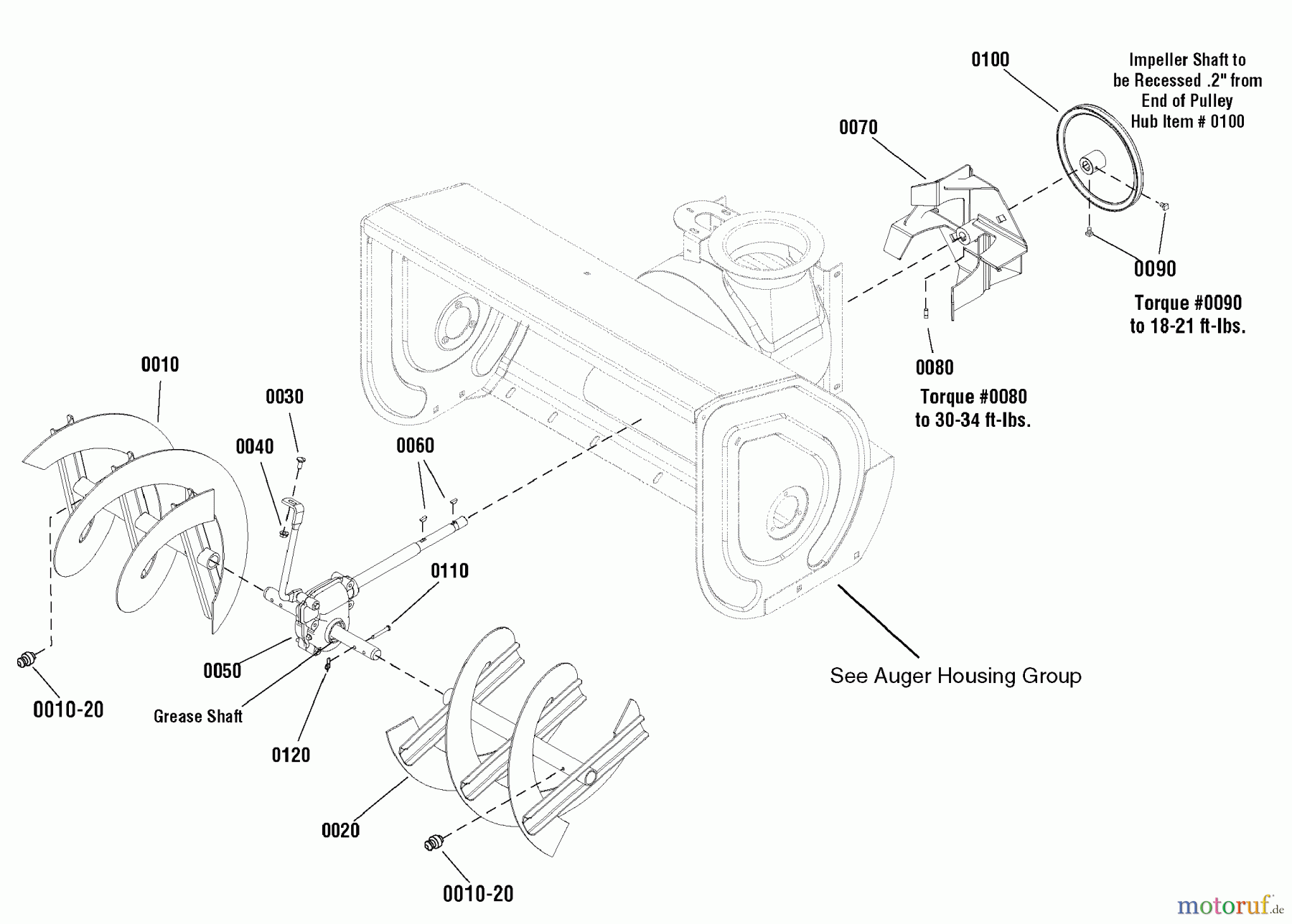

Auger Drive Group (2989120) 1332PE (LP37059) (1696045) - John Deere 32" Professional Snow Thrower (2011)
| Pos | Article Number | Description | |
| 0010 | BS1734678BCYP | SPINDELMESSER KOMPL. 32" RECHT | |
| 0020 | BS1734677BCYP | SPINDELMESSER, 32" LINKS | |
| 0010-20 | BS2821133SM | LUBE FITTING, .250 DR | |
| 0030 | BS1931333SM | BOLT | |
| 0040 | BS1931277SM | MUTTER - HEX | |
| 0050 | BS1732303SM | GEAR CASE | |
| 0060 | BS2818312SM | KEY, WOODRUFF | |
| 0070 | BS1612187BCYP | IMPELLER KOMPL. | |
| 0080 | BS1960474SM | SET SCREW | |
| 0090 | BS1928721SM | SET SCREW | |
| 0100 | BS1732468SM | PULLEY-09.000OD 0.752 | |
| 0110 | BS1739295YP | SICHERUNGSSTIFT | |
| 0120 | BS1739292YP | SICHERUNGSSPLINT | |
