Murray 1696079 - Canadiana 24" Dual Stage Snowthrower (2011) Handles & Controls Group (2990043) Spareparts

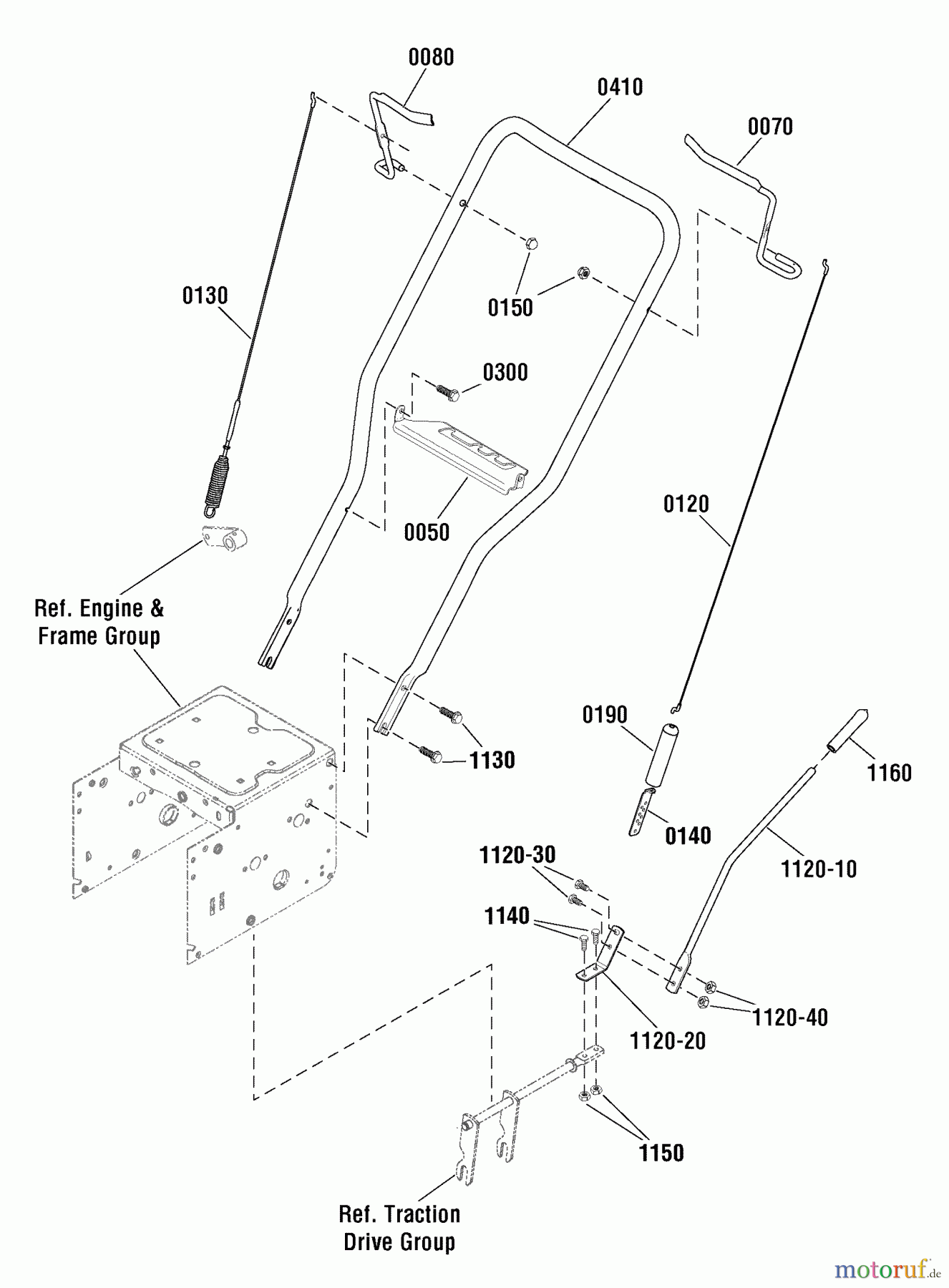

Handles & Controls Group (2990043) 1696079 - Canadiana 24" Dual Stage Snowthrower (2011)
| Pos | Article Number | Description | |
| 0050 | BS1752386AYP | BRACKET, GEAR SELECT | |
| 0070 | BS1752027BNYP | BAIL, DRIVE, LH | |
| 0080 | BS1752028BNYP | BAIL, DRIVE, RH | |
| 0120 | BS1502113MA | BLECHLEISTE | |
| 0130 | BS1737544YP | ZUG UND FEDER KOMPL. | |
| 0140 | BS313441MA | BRACKET, CABLE ADJ BL | |
| 0150 | BS1960093SM | NUT, PUSH | |
| 0190 | BS308146MA | BOOT, CLUTCH SPRING | |
| 0300 | BS26X263MA | SCREW.25-20 S-T | |
| 0410 | BS1751584AYP | HANDLE | |
| 1120-10 | BS1752853AYP | ROD, SHIFT | |
| 1120-20 | BS760564MA | LEVER,SPRING SHIFT | |
| 1120-30 | BS302628MA | SCHRAUBE, 1/4-20X .75 HH | |
| 1120-40 |  | BS73826MA | NUT.25-20 HEX CTRL0CK |
| 1130 | BS1752940YP | BOLT, 5/16-18 X 1 | |
| 1140 | BS302628MA | SCHRAUBE, 1/4-20X .75 HH | |
| 1150 | | BS73826MA | NUT.25-20 HEX CTRL0CK |
| 1160 | BS331624MA | KNOB, SLIP PLASTISOL | |
