Snapper 1694404 - 47" Two Stage Snowthrower Attachment Skid Shoe Group (986390) Spareparts

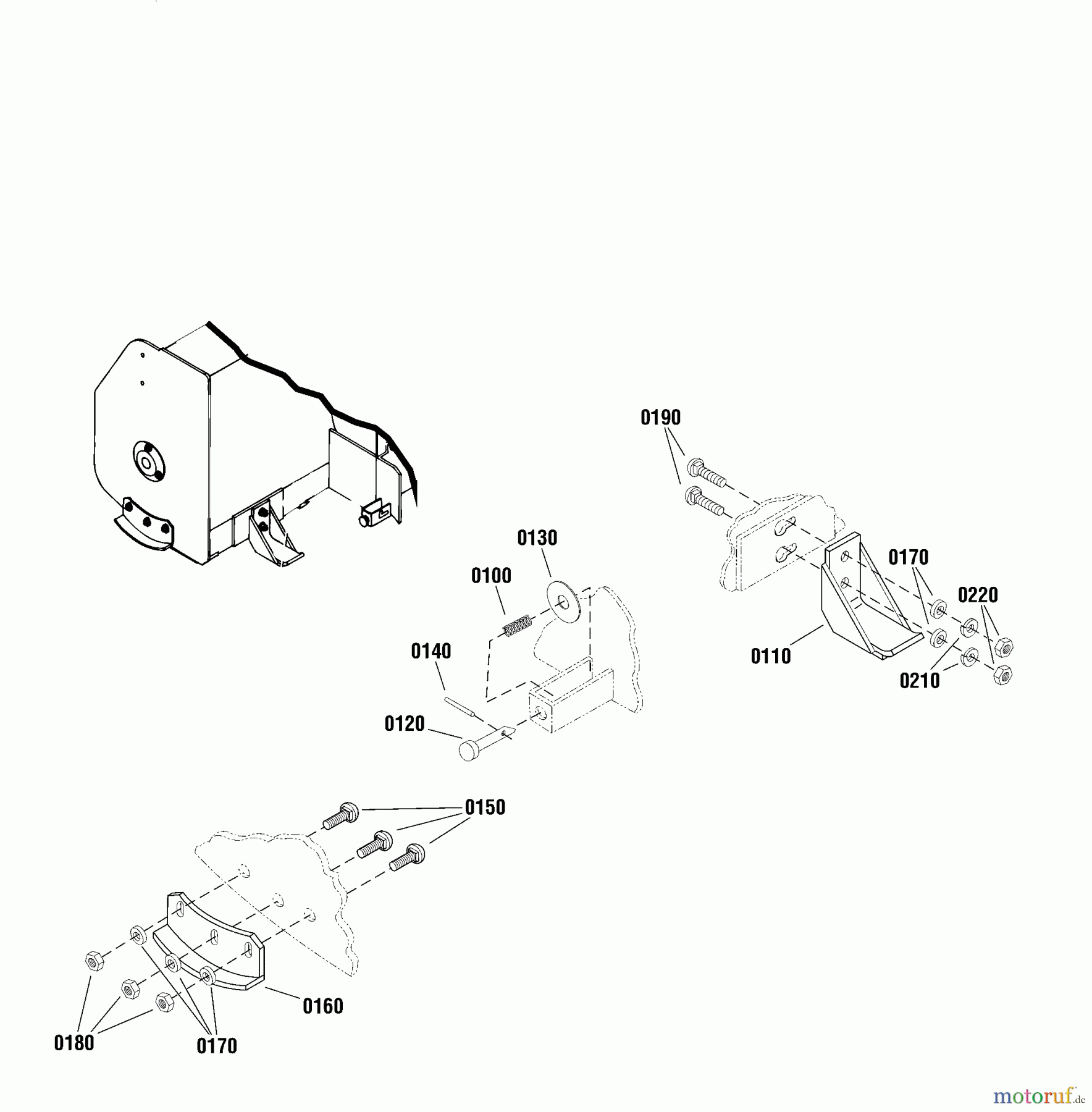

Skid Shoe Group (986390) 1694404 - Snapper 47" Two Stage Snowthrower Attachment
| Pos | Article Number | Description | |
| 100 | BS1709660SM | ||
| 110 | BS1709656AYP | SKID & PLATE ASMY | |
| 120 | BS1709659SM | ||
| 130 | BS1924366SM | WASHER-0.625(0.66IDX1 | |
| 140 | BS1960587SM | ||
| 150 | BS1960282SM | BOLZEN | |
| 160 | BS1709658ASM | SKID SHOE & PLATE ASM | |
| 170 | BS703302 | U-SCHEIBE, 5/16 | |
| 180 | BS703164 | MUTTER | |
| 190 | BS1960223SM | BOLZENACHSE HD SH SQ NK5 | |
| 210 | BS703116 | LCKWSHR | |
| 220 | BS7091511SM | MUTTER, 5/16C GR5 YZ | |
