Snapper 7082797 - TA520 Tiller Attachment Cover Group Spareparts

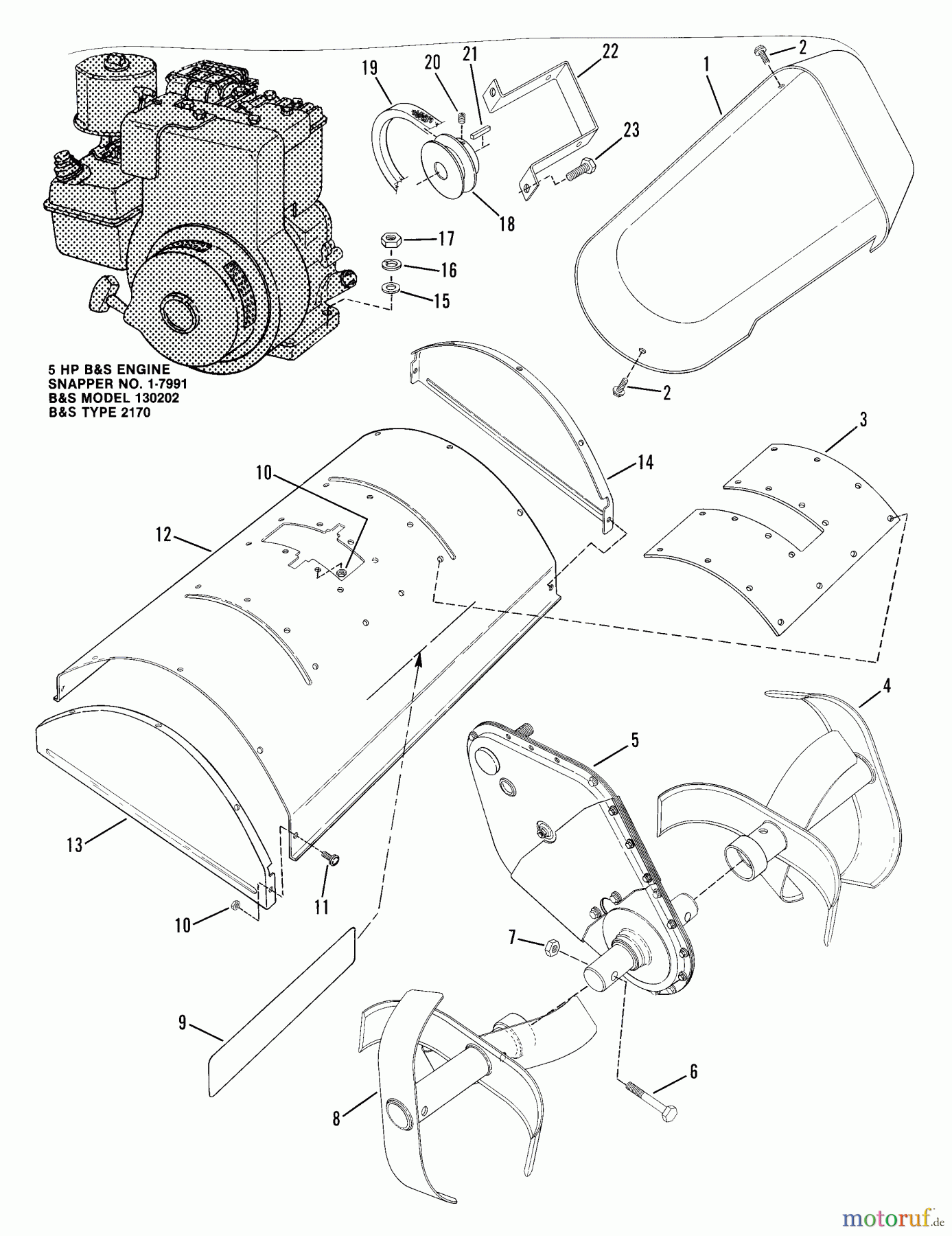

Cover Group 7082797 - Snapper TA520 Tiller Attachment

Snapper Zubehör, Fräsen und Kultivierer 7082797 - Snapper TA520 Tiller Attachment Cover Group
PosArticle NumberDescription
1 BS7019781YPCOVER, BELT
2 BS7091084YPHWST, 1/4C X3/8 BZ
3 BS35061
4 BS7075159YPWELD, TINE, 11.5, RH
5 BS7059691
6 BS7014586YPABSCHERBOLZEN GR5 YZ
7 BS703458MUTTER, 3/8-24
8 BS7049941
9 BS7019295YPDECAL, SNAPPER
10 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
11 BS703798BOLT, 5/16-18X0.50
12 BS7035098YPCOVER, TINE
13 BS7035062
14 BS7035063YPPLATE, SIDE, RH
15 BS703350U-SCHEIBE, 5/16
16 BS7090187SMSLW, .318X.583X.078 Z
17 BS7091511SMMUTTER, 5/16C GR5 YZ
18 BS7011809YPPULLEY, YELLOW
19 BS7015329YPV-BELT, 3 POINT TILLE
20 BS7090201SMHRSS, 5/16C X5/16
21 BS7010061SM
22 BS7038231YPBELT GUIDE
23 BS7090322YPHHCS, 5/16F X1/2 GR5
