Snapper 7082797 - TA520 Tiller Attachment Gear Box Group Spareparts

• Start
• Snapper
• Zubehör, Fräsen und Kultivierer
• 7082797 - Snapper TA520 Tiller Attachment
• Gear Box Group

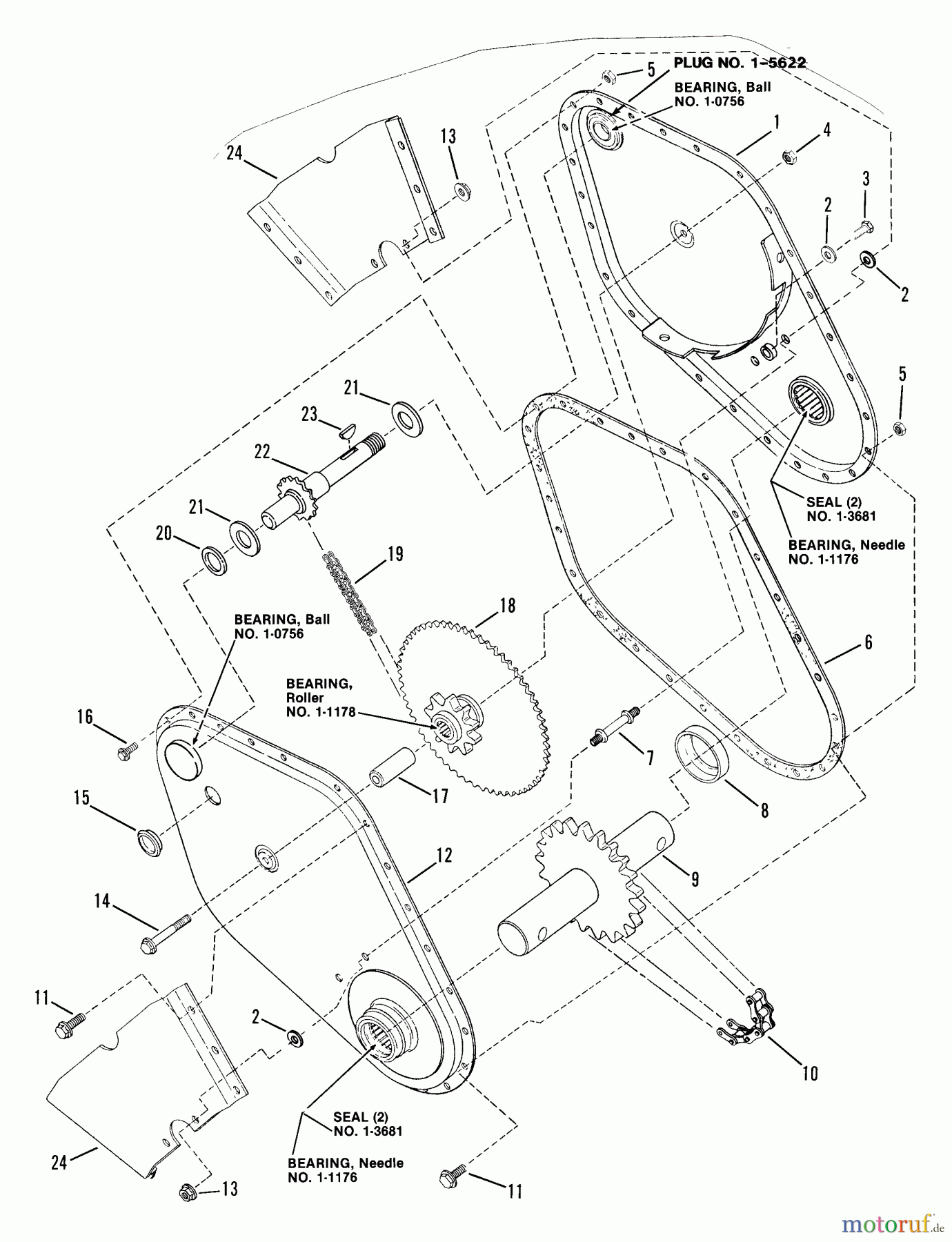

Gear Box Group 7082797 - Snapper TA520 Tiller Attachment

Pos		Article Number	Description
1		BS7051408YP	CHAIN CASE ASSY.
10756		BS7010756YP	KUGELLAGER
11176		BS7011176YP	BEARING, ROTOR SHAFT
13681		BS7013681YP	DICHTUNG
13681		BS7023775
15622		BS7015622YP	DICHTUNG
2		BS7014980YP	WASHER, SEAL
3		BS7090554YP	HWST, 5/16C X3/8 ZP
4		BS703459	NUT, HEX, 5/16-24
5		BS703164	MUTTER
6		BS7019716YP	GASKET
7		BS7014677YP	STUD, 5/16CX2.6
8		BS7011181YP	SPACER, SHAFT
9		BS7040364YP	ROTOR SHAFT
10		BS7014313
11		BS7091318
12		BS7051363
--		BS7049701
--		BS7010756
--		BS7011176
--		BS7013681
--		BS7023775
13		BS703409	MUTTER, 5/16-18, GR5
14		BS7090838YP	HHCS, 5/16F X2-1/4 GR
15		BS7011024YP	STOPFEN
16		BS7090858YP	MUTTER, 5/16-18X1/2 SELBSTS.
17		BS7021752YP	RACE, BEARING
18		BS7050724
--		BS7040437YP	SPROCKET, INTERMEDIAT
11178		BS7011178
19		BS7014312YP	CHAIN, DRIVE
20		BS7013681
21		BS7010690YP	WASHER, SHIM, .625X.8
22		BS7019102YP	SHAFT, DRIVE
23		BS7010211YP	FEDERKEIL, #9
24		BS7038090
25		BS7015017YP	TOLERANCE RING, .625
