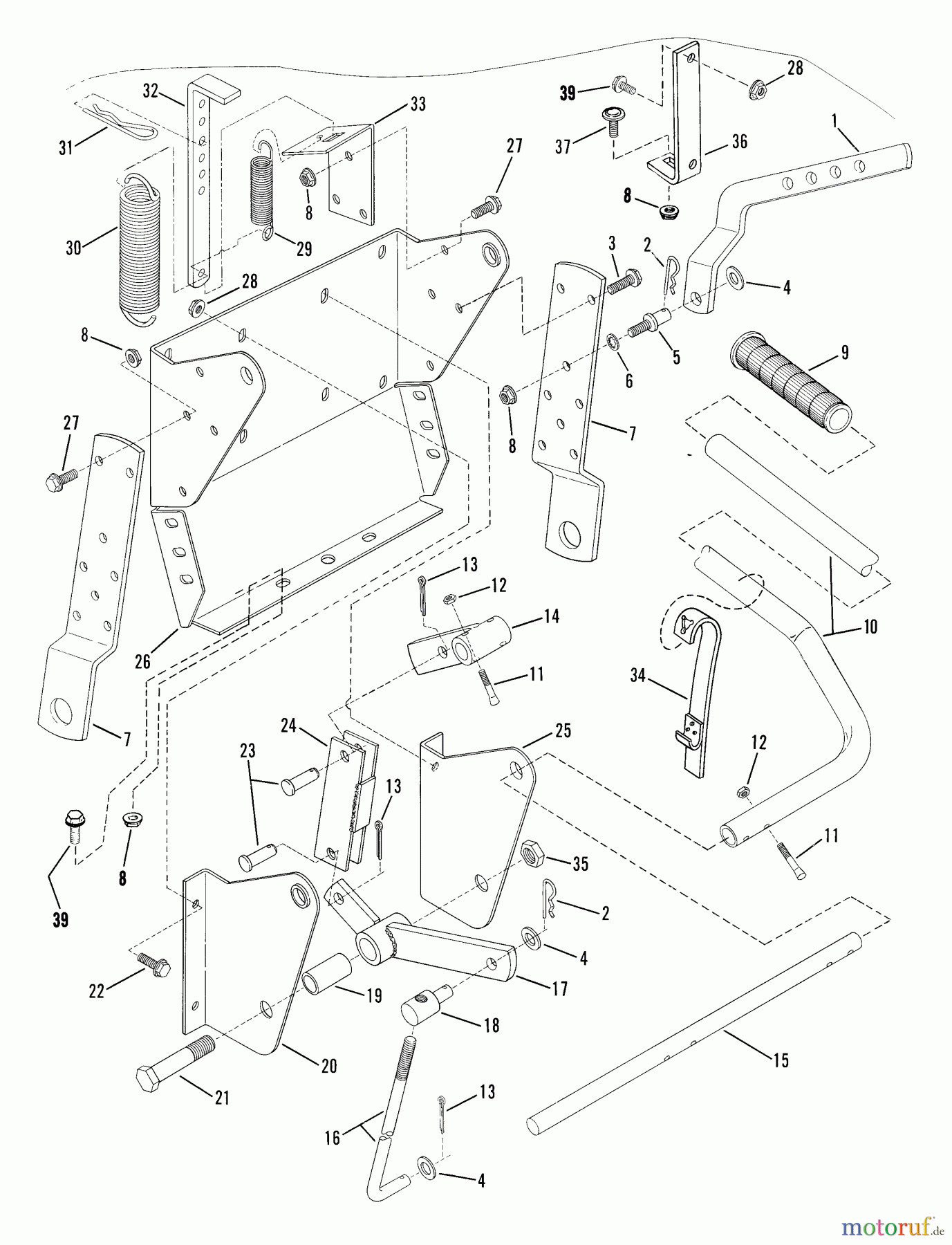

Tine Group 7082797 - Snapper TA520 Tiller Attachment

Pos		Article Number	Description
1		BS7036158YP	STABILIZER, CENTER
2		BS703300	PIN, 3/32 X 1.6
3		BS7027198YP	(C) HFLB, 3/8C X1 YZ
4		BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
5		BS7018791YP	PIN, STABILZER
6		BS703930	WASHER, INT LCK, 3/8
7		BS7038224
8		BS703333	MUTTER, 3/8-16
9		BS1726317SM	GRIP, FOAM
10		BS7038228
11		BS7011035YP	ACHSBOLZEN LINKS
12		BS703459	NUT, HEX, 5/16-24
13		BS7091516SM	SPLINT, 5/32X1 YZ
14		BS7047879
15		BS27655
16		BS7021983YP	LINKAGE, LIFT
17		BS7047878
18		BS7015332YP	PIN, LIFT ##
19		BS7015334
20		BS36156
21		BS7090918YP	HHCS, 3/4F X3 GR2 ZP
22		BS9357MA	SCHRAUBE, 5/16-18X .75WD
23		BS7012802SM
24		BS47880
25		BS36157
26		BS7035096YP	FRAME, MAIN
27		BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
28		BS703409	MUTTER, 5/16-18, GR5
29		BS7015335YP	SPRING, DRAFT CONTROL
30		BS7015336YP	SPRING, LIFT ASSIST
31		BS7012844
32		BS32487
33		BS7032489YP	BRKT, DRAFT CONTROL
34		BS7057434YP	STRAP ASSY.
35		BS7090283YP	HJN, 3/4F ZP
36		BS7032505
37		BS7090645
38		BS7091619
39		BS7090661YP	HFLB, 5/16C X1 ZP
40		BS7090815YP	SCHRAUBE, 3/8-16 X 3/4
