Snapper BH140H33BBV (80878) - 33" Lawn Tractor, 14 HP, Hydro Drive, Series B Electrical Components Spareparts

• Start
• Snapper
• Rasen- und Gartentraktoren
• BH140H33BBV (80878) - Snapper 33" Lawn Tractor, 14 HP, Hydro Drive, Se
• Electrical Components

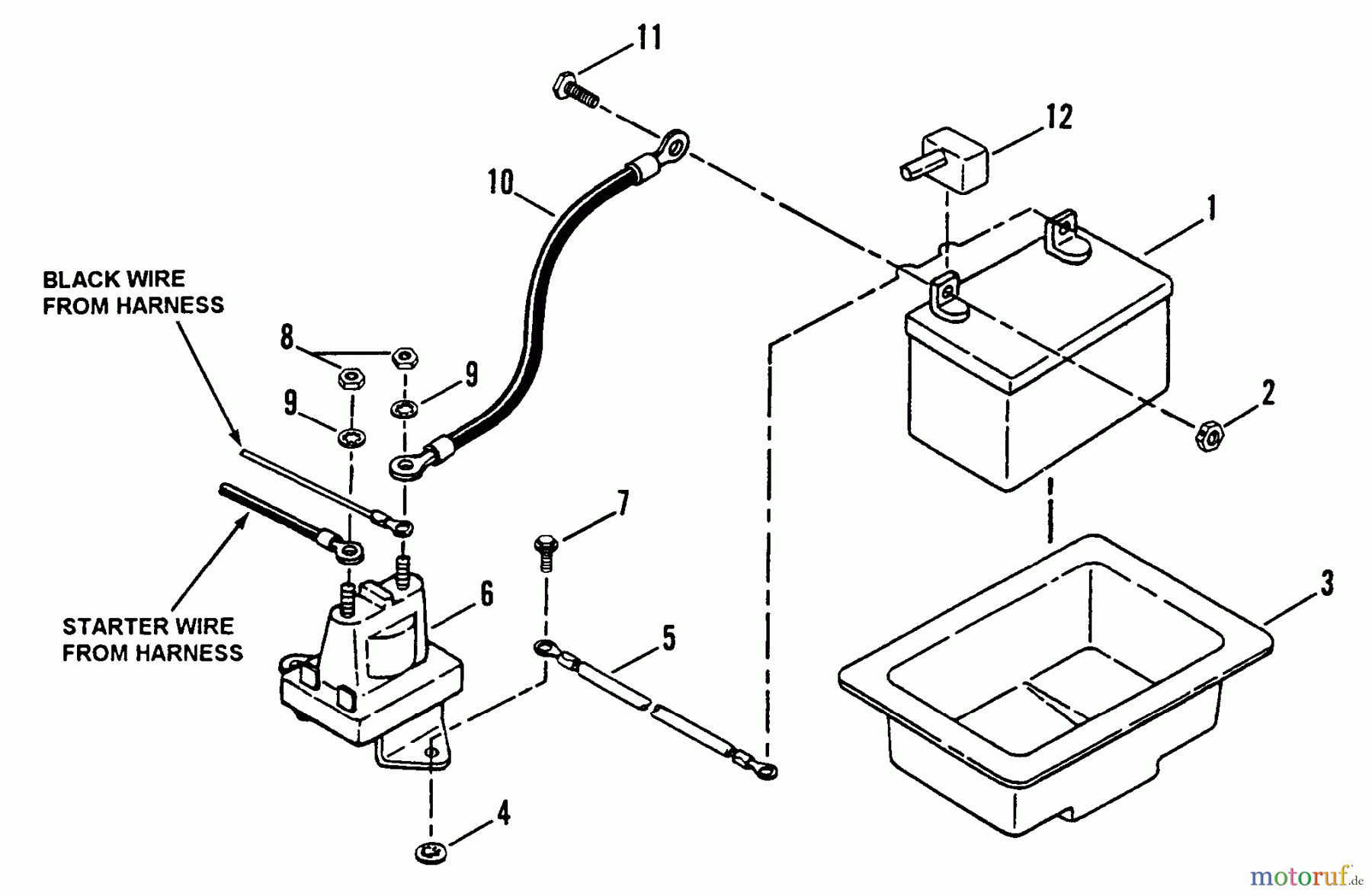

Electrical Components BH140H33BBV (80878) - Snapper 33" Lawn Tractor, 14 HP, Hydro Drive, Series B

Pos		Article Number	Description
1		BS7060618
2		BS703954
3		BS7017853YP	TRAY, BATTERY
4		BS7012485YP	RETAINER, 1/4"
5		BS7026414YP	WIRE, BATTERY TO GROU
6		BS1755382YP	SOLENOID
7		BS7091122
8		BS7090977YP	HJN, 1/4C GR5 BZ
9		BS703462	U.-SCHEIBE, 1/4
10		BS7014476YP	KABEL, SOLENOID
11		BS001X38MA	BOLT,HEX .25-20X0.62
12		BS7012444YP	ABDECKUNG, BATTERIEKABEL
