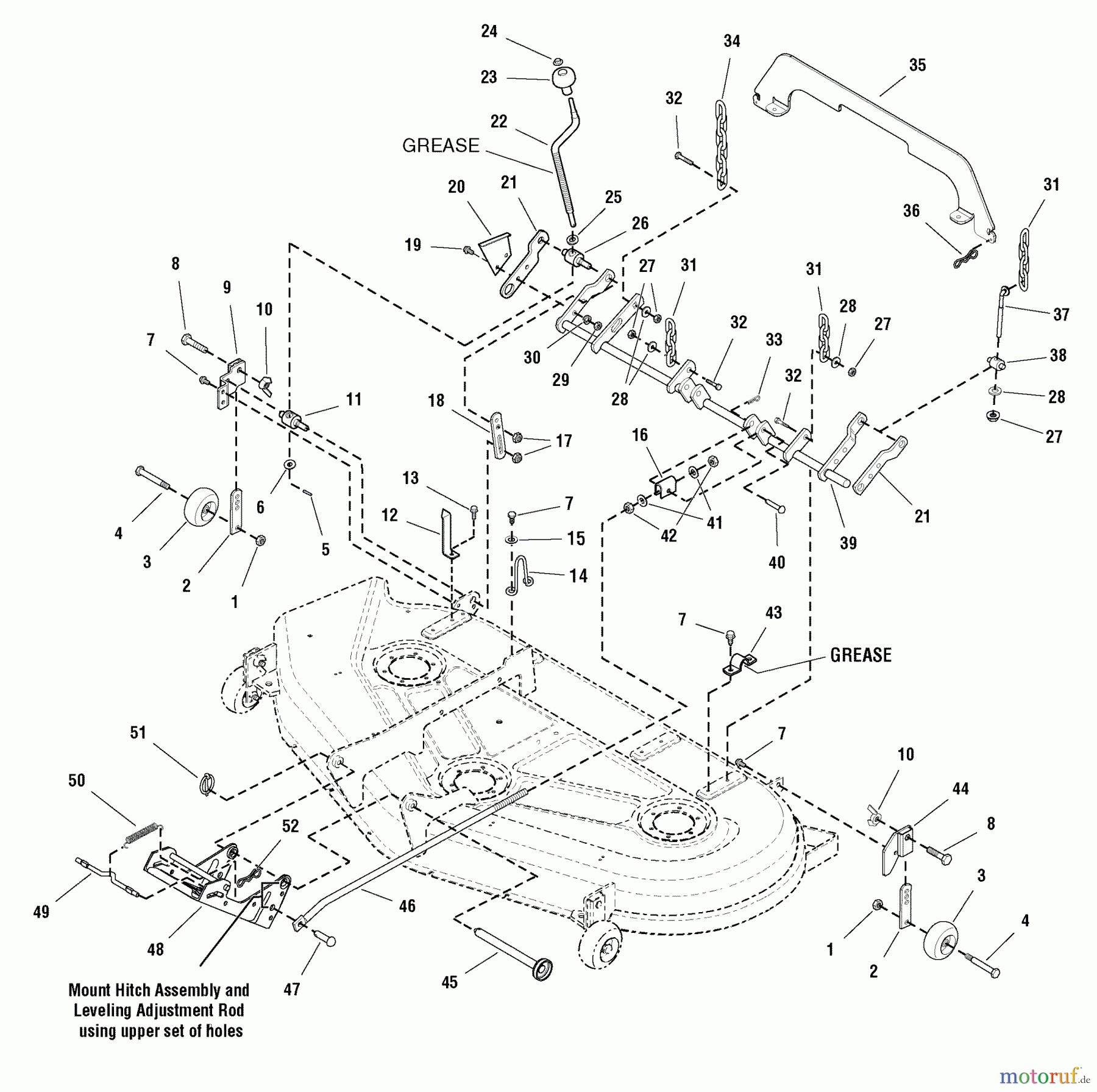

Snapper GT2354 (1694621) - 54" Garden Tractor, 23 HP, Hydro Drive 54" Mower Deck - Height Adjustment & Roller Bar Group Spareparts

54" Mower Deck - Height Adjustment & Roller Bar Group GT2354 (1694621) - Snapper 54" Garden Tractor, 23 HP, Hydro Drive

Snapper Rasen- und Gartentraktoren GT2354 (1694621) - Snapper 54
PosArticle NumberDescription
1 BS703893NUT, CNTR LCK, 3/8-16
2 BS7035835SMPOST, ANTI-SCALP, YEL
3 BS1700184SMRAD - 2.60 BREIT 4.9
4 BS7029265SMSCHRAUBBOLZEN, 3/8-16X3
5 BS2816001SMSPANNSTIFT .188 X 1.0
6 BS1704097SMSICHERUNGSMUTTER .516ID
7 BS703228SCHRAUBE, 5/16-18 X .75
8 BS703871KOPFSCHRAUBE,3/8-16X1.25
9 BS1727612ASMAUFNAHME KOMPL. RECHTS
10 BS7091049SMFLUGELMUTTER .375-16 NYLO
11 BS1724009SMLAGERZAPFEN
12 BS1720643ASMINDICATOR-HEIGHT-BLAC
13 BS703167SCHRAUBE
14 BS1719929SMSTOP-UP .312WIRE
15 BS703878WASHER, FLAT
16 BS1706645ASMLAGERZAPFEN-2.00WD-SCHWARZ
17 BS1930644SMBUNDMUTTER 1/2-1
18 BS1727143ASMSTOP-HOHENVERST.250T
19 BS1921977SMCAPSCREW - HEX HD
20 BS1704116ASMHALTEBLECH -SCHITTHOHE
21 BS1720637ASMARM-MOWER ADJ 54-BLAC
22 BS1719901SMCRANK-HEIGHT ADJ
23 BS1714084SMKNOB, SPINNER
24 BS703948DRUCKMUTTER, 3/8
25 BS703853WASHER, 0.516IDX1OD
26 BS1704087SMTRUNNION-1.25 &
27 BS1919438SM
28 BS703298U-SCHEIBE, GR5, 5/16
29 BS7091511SMMUTTER, 5/16C GR5 YZ
30 BS703116LCKWSHR
31 BS1708088ASMKETTENVERBIND. 06.08 SCHWARZ
32 BS1930570SMCAPSCREW-HEX HD 5/16
33 BS703300PIN, 3/32 X 1.6
34 BS1708266ASMKETTENVERBIND. 8.4 LG 06
35 BS1727949ASMAUFNAHME- MAHER HANGER
36 BS1960033SMSICHERUNGSSPLINT .125
37 BS703827ROD, ADJUSTER
38 BS1704086SMTRUNNION-1.25 &
39 BS1727140A
40 BS2118053SMSICHERUNGSSTIFT 3
41 BS1924366SMWASHER-0.625(0.66IDX1
42 BS7090537YPHN, 5/8C GR.A ZP
43 BS1720147A
44 BS1727613ASMSUPPORT ASSY
45 BS1734011SMPIN & WASHER ASSY
46 BS1722995SMGESTANGE JUSTIERUNG 54
47 BS1960116SMSICHERUNGSBOLZEN 494 DIA.X
48 BS1722997ASM
49 BS1715759SMSTECKACHSE 375DIA 08.0
50 BS2156302SMFEDER-EXTN 0.63
51 BS1709189SMSTECKVERBINDUNG 188DIA 1.2
52 BS1722320SMSICHERUNGSSPLINT .0
