Snapper YT2452F (2691047-00) - 52" Yard Tractor, 24 HP, 4WD, Hydro Drive RMO, YT400 Series Hood, Grille & Dash Group Spareparts

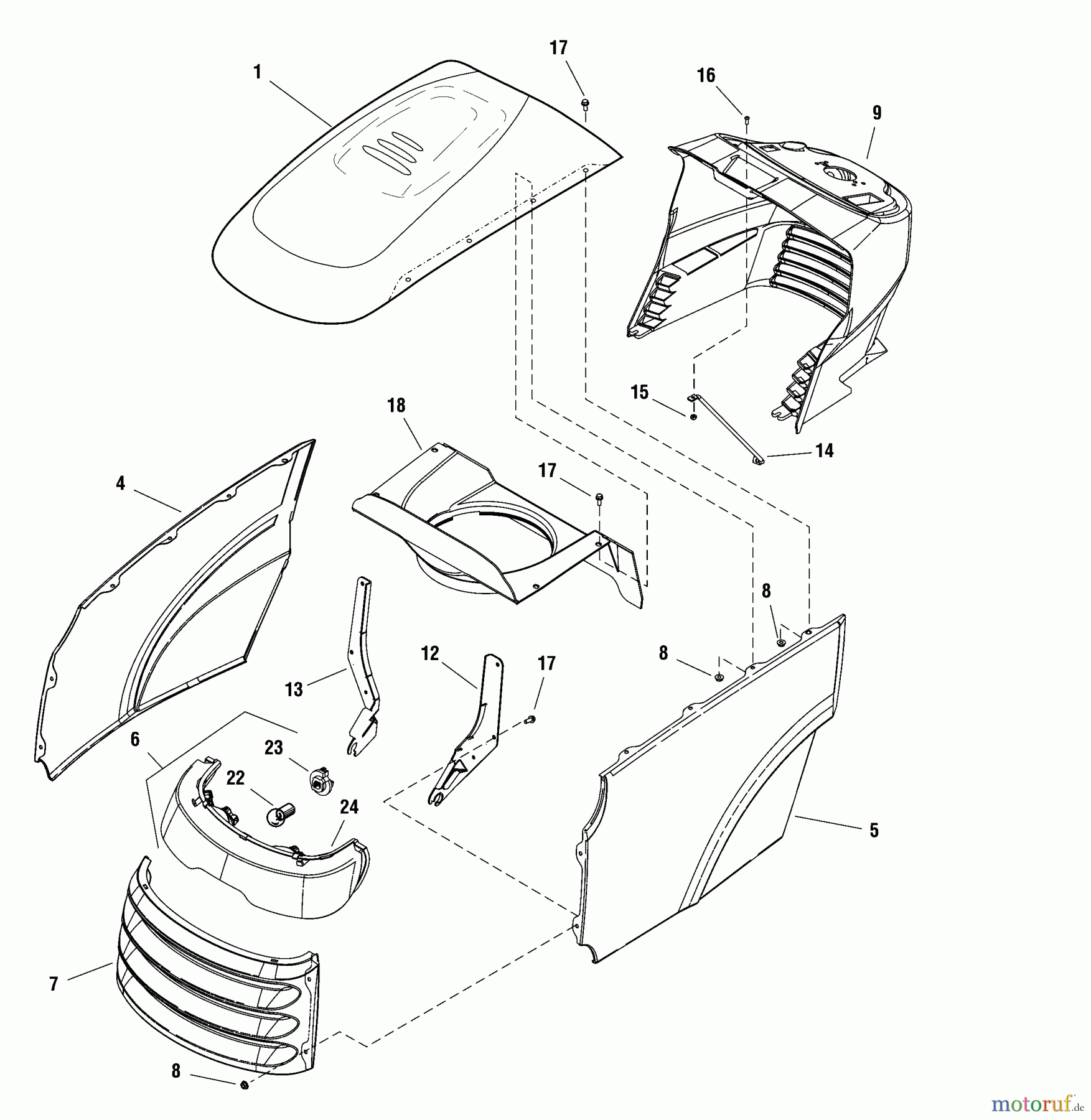

Hood, Grille & Dash Group YT2452F (2691047-00) - Snapper 52" Yard Tractor, 24 HP, 4WD, Hydro Drive RMO, YT400 Series

Snapper Rasen- und Gartentraktoren YT2452F (2691047-00) - Snapper 52
PosArticle NumberDescription
1 BS1722110DSMHOOD-W/BULGE+LOUVERS
4 BS1721804DSMPANEL-RH SIDE CO-RED
5 BS1721803DSMPANEL-LH SIDE CO-RED
6 BS1721810SMHEADLIGHT ASMY-4
7 BS1721802DSMGRILLE-CONQ,PRES-RED
8 BS703161MUTTER
9 BS1687054SMDASHBOARD REPL KIT FO
12 BS5410606A
13 BS5410607A
14 BS1723123SMSTREBE 250DIA 10" LG D
15 BS15X146MAMUTTER,10X24 NYLOCK YZ
16 BS1933737SMSECHSK. SCHRAUBE HD SLO
17 BS1960295SMSCREW-HEX WZ LOCK FL
18 BS7102326YPLUFTKANAL, VERTEILERSCH.
22 BS1677371SMBULB-HEADLIGHT 1
23 BS1723451SMSOCKET ASMY-SEAL
24 BS1722902
