Snapper SPXV22725 (7800832) - 22" Walk-Behind Mower, 7.25 HP, 3N1 Self-Propelled Manual Start Mower Deck Group Spareparts

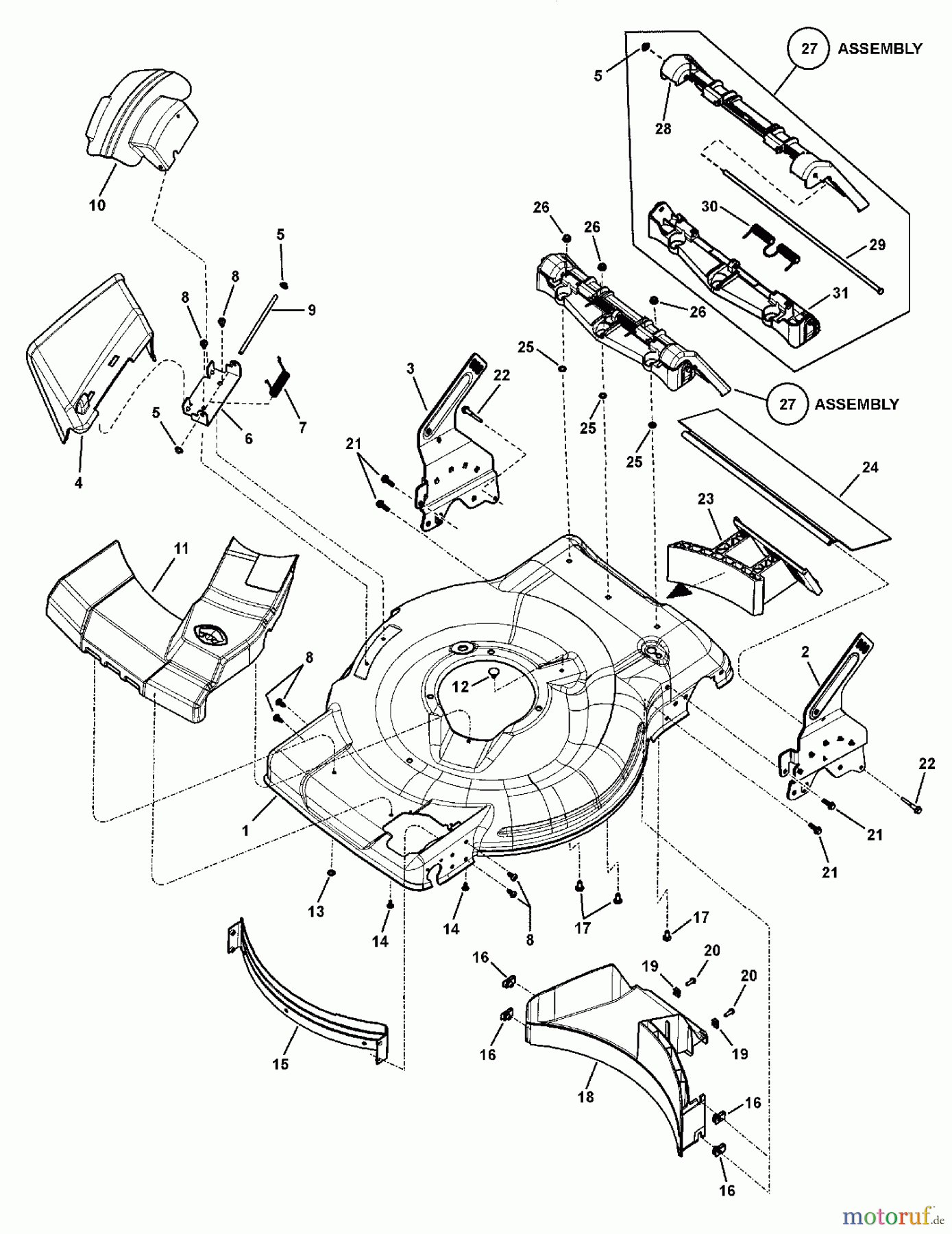

Mower Deck Group SPXV22725 (7800832) - Snapper 22" Walk-Behind Mower, 7.25 HP, 3N1 Self-Propelled Manual Start

Snapper Rasenmäher SPXV22725 (7800832) - Snapper 22
PosArticle NumberDescription
1 BS7600156YPKIT, DECK SNP MY2010,
2 BS7301089BH
3 BS7301088BH
4 BS7103299YPCHUTE, SIDE DISCHARGE
5 BS704005PUSHNUT, CAP, 1/4
6 BS7300855DYPHALTER, SCHACHT
7 BS166X38MATORSIONSFEDER
8 BS7900067YPSCHRAUBE, 1/4-20X11/16
9 BS7101067YPGESTANGE
10 BS7103298YPCOVER, MULCHING
11 BS7502426YPBELT COVER
12 BS0193X1MAFASTENER-PANEL
13 BS7900079YPPUSH NUT, 3/16
14 BS7900018YPSCREW, ROUND WASHER H
15 BS7301020YPFRONTBLECH
16 BS7023295SMBUNDMUTTER, 1/4C
17 BS7090803YPBOLT, 1/4-20X5/8
18 BS7103452YPBAFFLE, REAR/FRONT DR
19 BS1960593SMNUT, RETAINER SPEED#1
20 BS7091075SMSCHRAUBE, SELF TAPPING
21 BS1935450SMCAPSCREW-HEX WSHR HD
22 BS7900073YPBOLT, DRAG SHIELD
23 BS7103453YPPLUG, MULCH 22" DECK
24 BS7103323YPGUARD, REAR, 22
25 BS703826BOLT, PUSHNUT 1/4
26 BS7001278MACHUTE HDWARE KIT SEAR
27 BS7501541YPKLAPPE KOMPL. 22 WBM
28 BS7103291
29 BS7103322YPROD, PIVOT, REAR DOOR
30 BS7103309YPSPRING, REAR DOOR
31 BS7103292YPHINGE, DOOR, REAR DIS
