Snapper 400ZB2448 (5901275) 48" Zero-Turn Mower, 24 HP, ZTR 400Z Series Main Frame & Front Casters Group Spareparts

• Start
• Snapper
• Nullwendekreismäher, Zero-Turn
• 400ZB2448 (5901275) Snapper 48" Zero-Turn Mower, 24 HP, ZTR 400Z Serie
• Main Frame & Front Casters Group

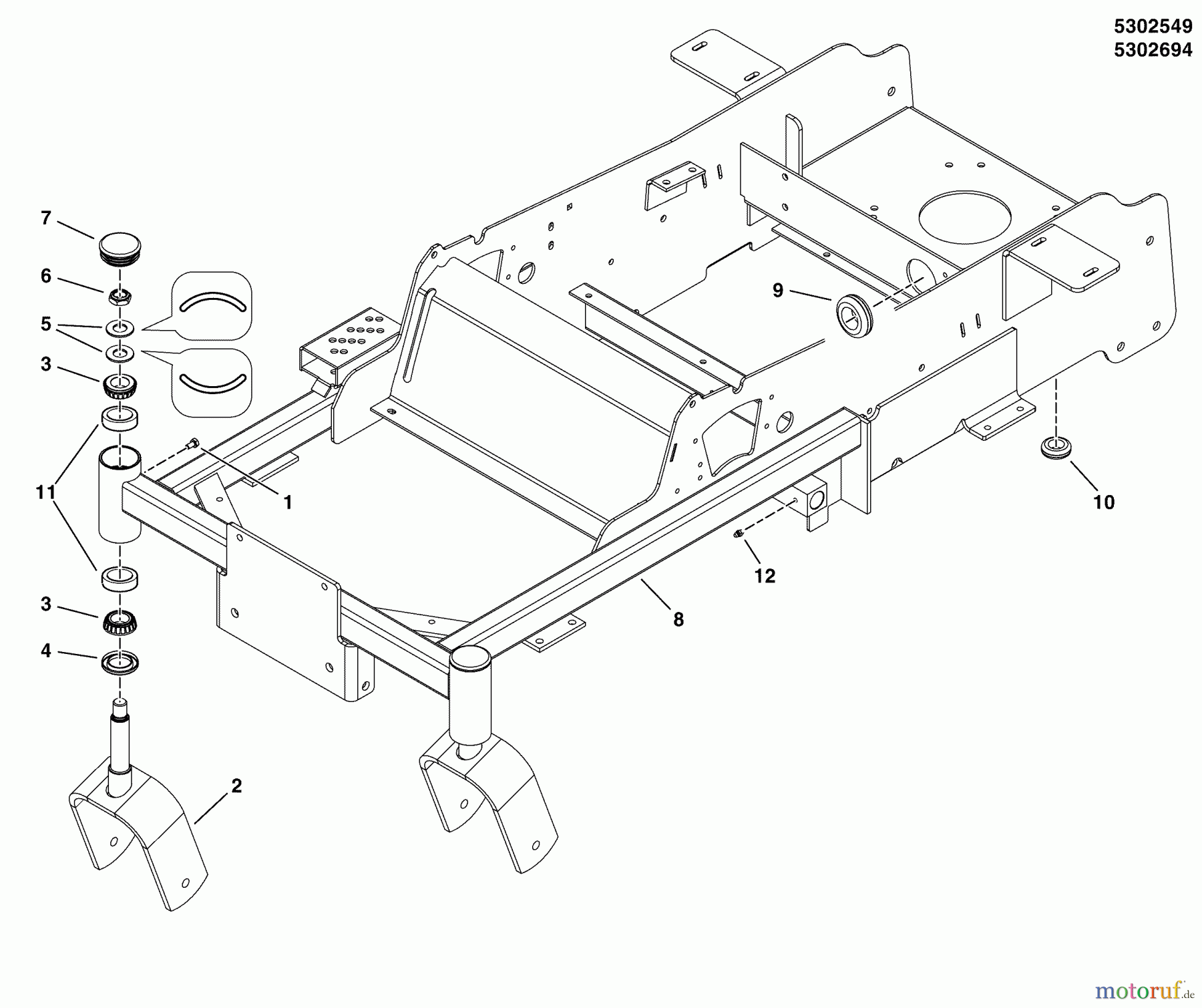

Main Frame & Front Casters Group 400ZB2448 (5901275) Snapper 48" Zero-Turn Mower, 24 HP, ZTR 400Z Series

Pos		Article Number	Description
1		BS5025457SM
2		BS5402539DYP	WELD, CASTER YOKE, IS
3		BS5020884SM	BEARING, TAPERED ROLL
4		BS5021072SM	SEAL, GREASE
5		BS5025449SM
6		BS5025448SM
7		BS5102929YP	CAP, LOW PROFILE
8		BS5411129D
8		BS5403794D
8		BS5406614D
9		BS5100716YP	GROMMET, 2" ID
10		BS5021379SM	GUMMIDICHTUNG
11		BS5020883SM
12		BS5020095SM	SCHMIERNIPPEL , 1/4-2
