Snapper NZMJ23521KH (84938) - 52" Zero-Turn Mower, 23 HP, Kohler, Mid Mount, Z-Rider Commercial Lawn & Turf Series 1 52" CUTTING DECK ASSEMBLY PT.1 Spareparts

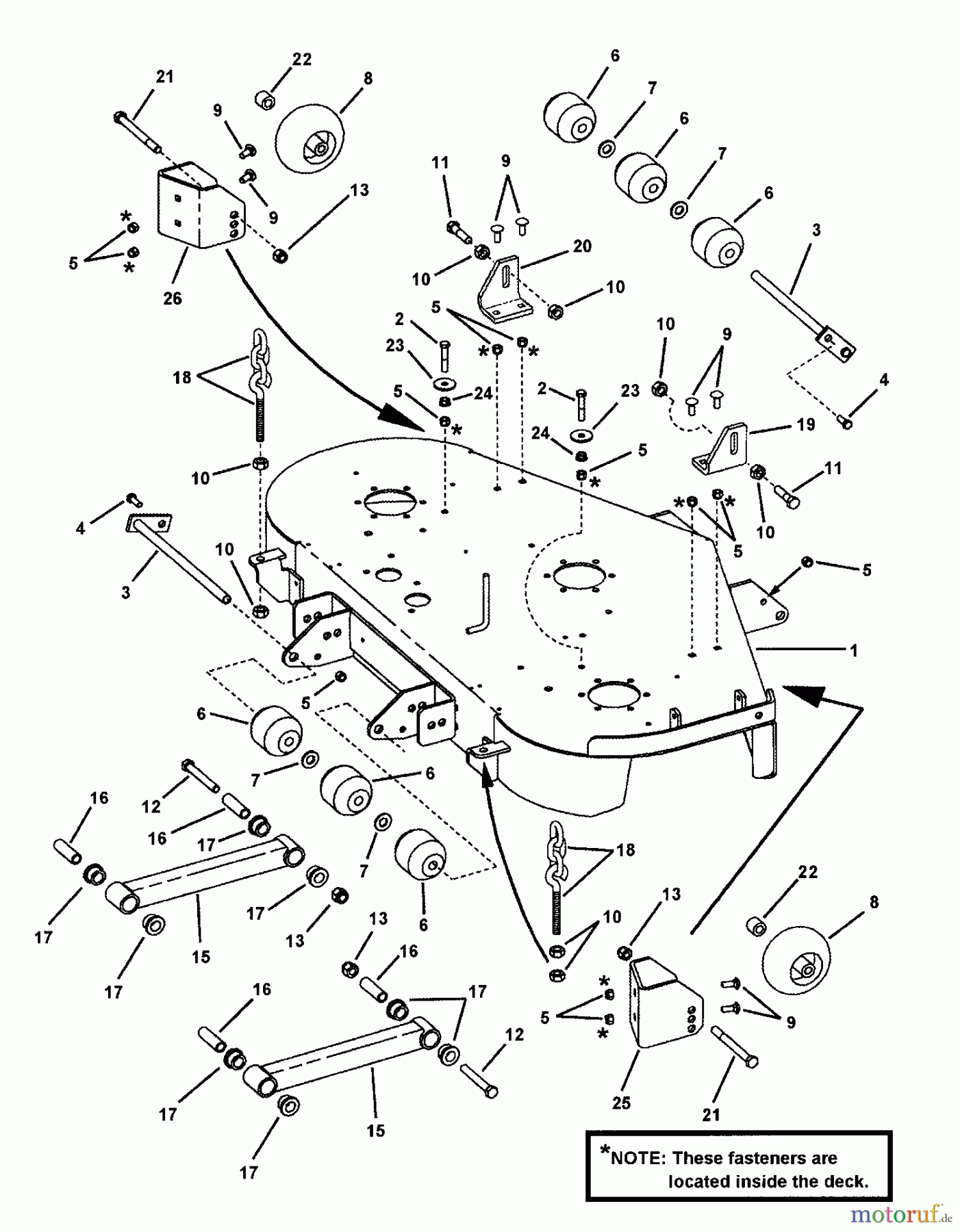

52" CUTTING DECK ASSEMBLY PT.1 NZMJ23521KH (84938) - Snapper 52" Zero-Turn Mower, 23 HP, Kohler, Mid Mount, Z-Rider Commercial Lawn & Turf Series 1

Snapper Nullwendekreismäher, Zero-Turn NZMJ23521KH (84938) - Snapper 52
PosArticle NumberDescription
1 BS5600417YPDECK SHELL W/DECALS,
2 BS7091305SMHHCS, 3/8C X2 GR5 YZ
3 BS7027327YP(C) WELD, PIVOT PIN,
4 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
5 BS5025096SMMUTTER, 3/8-16 HEX NYLON
6 BS7073142YPROLLER, DECK, BLACK
7 BS7027344SMFW, .668X1.324X.098 Y
8 BS1700184SMRAD - 2.60 BREIT 4.9
9 BS703814BOLT, RD HD, 3/8-16X1
10 BS7091316YPHN, 1/2C GR.B YZ
11 BS703817CAPSCREW,1/2-13X2,GR5
12 BS7029355YPHHCS, 1/2C X3-3/4
13 BS703453STOPMUTTER, 1/2-13,GR5
14 BS7059107YPPUSHER BAR ASSY.
15 BS7059108YP(C) WELD, PUSHER BAR
16 BS7029263YPSLEEVE, SUSPENSION
17 BS7029258YPBUSHING, SUSPENSION
18 BS7053562YPCHAIN & EYEBOLT ASSY.
19 BS7075582YPBRKT, DECK LIFT, 52",
20 BS7075583YPBRKT, DECK LIFT, 52",
21 BS703886CAPSCREW, 1/2-13X5
22 BS7036456YPSPACER, YZ
23 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
24 BS703333MUTTER, 3/8-16
25 BS7074789YP(C) BRKT, GAGE WHEEL,
26 BS7074790YP(C) BRKT, GAGE WHEEL,
