Snapper 521E (1695702) - 21" Snowthrower, 5 HP, Single Stage Engine and Frame Group Spareparts

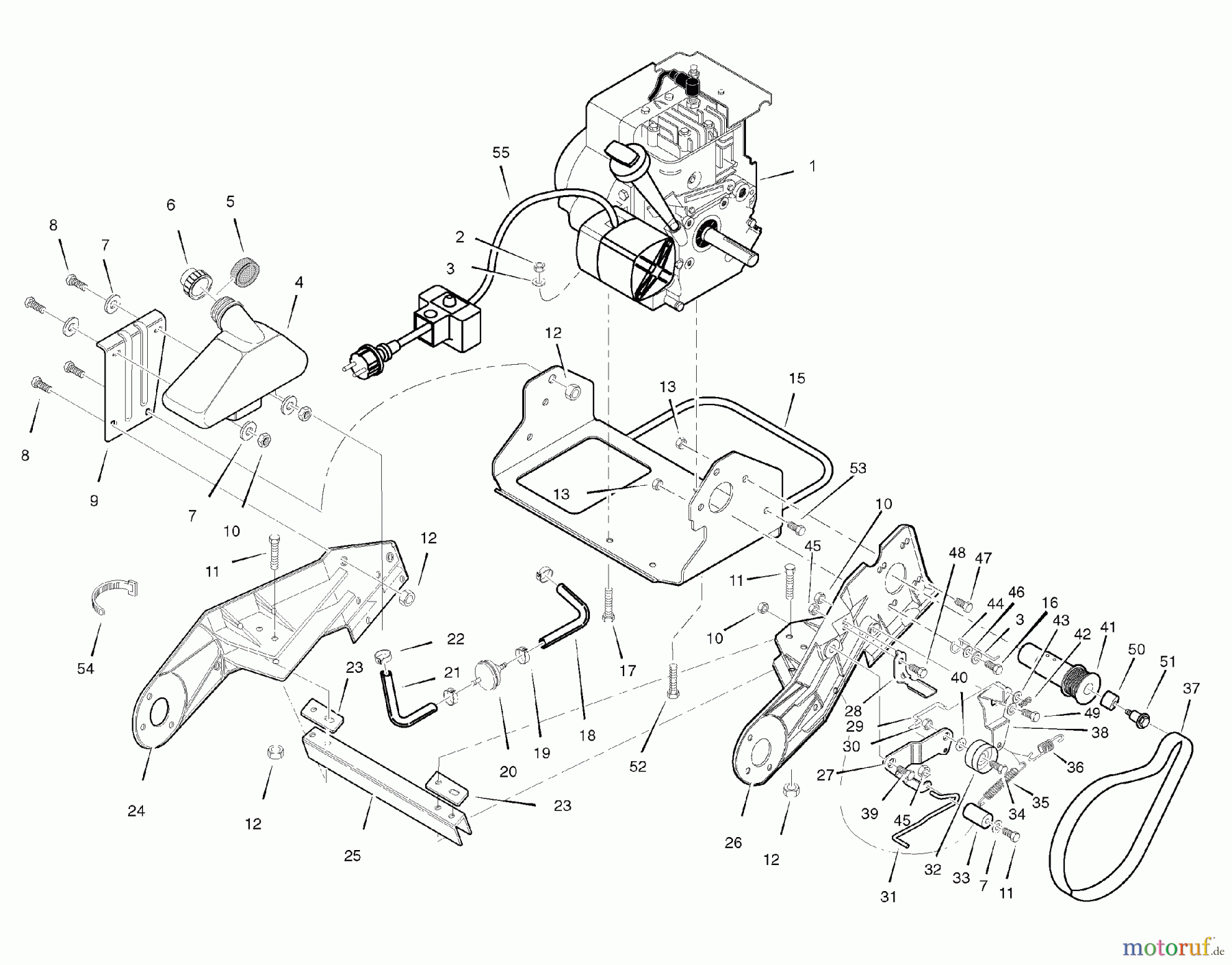

Engine and Frame Group 521E (1695702) - Snapper 21" Snowthrower, 5 HP, Single Stage

Snapper Schneefräsen 521E (1695702) - Snapper 21
PosArticle NumberDescription
1 BS09A413-0202-E1
2 BS7091511SMMUTTER, 5/16C GR5 YZ
3 BS1501670MAM-BAG,2LBG.38 K25 N
4 BS333739MATANK,FUEL 1.5QT 3/21
5 BS1740032MAMOOSGUMMIRING
6 BS722262
7 BS71067MAUNTERLEGSCHEIBE
8 BS703186BOLT,HEX
9 BS333749E701MAHALER,KRAFTSTOFFTANK 1.5QT
10 BS271163MANUT,
11 BS180044MASCHRAUBE 25-20X2.00 HHC
12 BS71034MASECHSKANTMUTTER 25 - 20
13 BS1101253MAIDLER SUPT ASSY 22SD
15 BS729752
16 BS180077MASCREW 5/16-18X.75 HHC
17 BS001X81MASECHSKANTBOLZEN.31-18X1.62 Z
18 BS1502028MABENZINSCHLAUCH
19 BS323387MACLAMP,HOSE
20 BS298090VERWEIS ZU
21 BS791893BENZINLEITUNG
22 BS47345MACLAMP, SCREW TYPE
23 BS335351MAPLATE, SUPPORT
24 BS1501871E701MAFRAME, RH
25 BS333987MAKANAL,RAHMENUNTERSTUTZUNG
26 BS722321
27 BS1741727YPHALTER
28 BS333970MABRAKE PAD,11 GA BLACK
29 BS313436MAROD,CTRL LINKAGE 954
30 BS590MAMUTTER.38-16 HEX JAM CTR
31 BS1501009MADRAHT FORM,BREMSE 5.0/2
32 BS48924MAPULLEY,IDLER BB 1.88O
33 BS1501010MAANDRUCKROLLE; ABSENKROLLE
34 BS302637MASCREW, 3/8-16X1.50 SP
35 BS313473MASPRING,EXT.38 OD X.03
36 BS313471MASPRING,EXT.75 OD X.06
37 BS333721MABELT,POLY-V 10 RIB 35
38 BS313444MAARM,IDLER PIVOT REPLA
39 BS333594MABOLT-SHD.500X.177 .31
40 BS301188MAUNTERLEGSCHEIBE .378X
41 BS1501908MARIEMENSCHEIBE,MOTOR MODELL 9
42 BS121223MAFEDERSTECKER
43 BS414106MAWASHER F
44 BS334079MAGUIDE,BELT
45 BS1501216MAKIT,SHEAR BOLT.25-20X
46 BS71071MAUNTERLEGSCHEIBE
47 BS48901MASCREW
48 BS579052MASCHRAUBE.25-20X0.62 HHC
49 BS311633MASCREW, #8-32X3.00 HHC
50 BS1740037MADISTANZRING, ANTRIEBSSCHEIBE
51 BS1501907MABOLZEN, MOTOR RIEMENSCHEIBE
52 BS1X216MASECHSKANTBOLZEN
53 BS310169MASCREW, 1/4-20X .63 WA
54 BS57444MAVERBINDUNGSKABEL
55 Snapper CORD, STARTER MOTORBS6219MACORD, STARTER MOTOR
