Snapper 8243E - 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3 Engines, Pulley, Idler Spareparts

Engines, Pulley, Idler 8243E - Snapper 24" Snowthrower, 8 HP, Two Stage, Large Frame, Series 3

Snapper Schneefräsen 8243E - Snapper 24

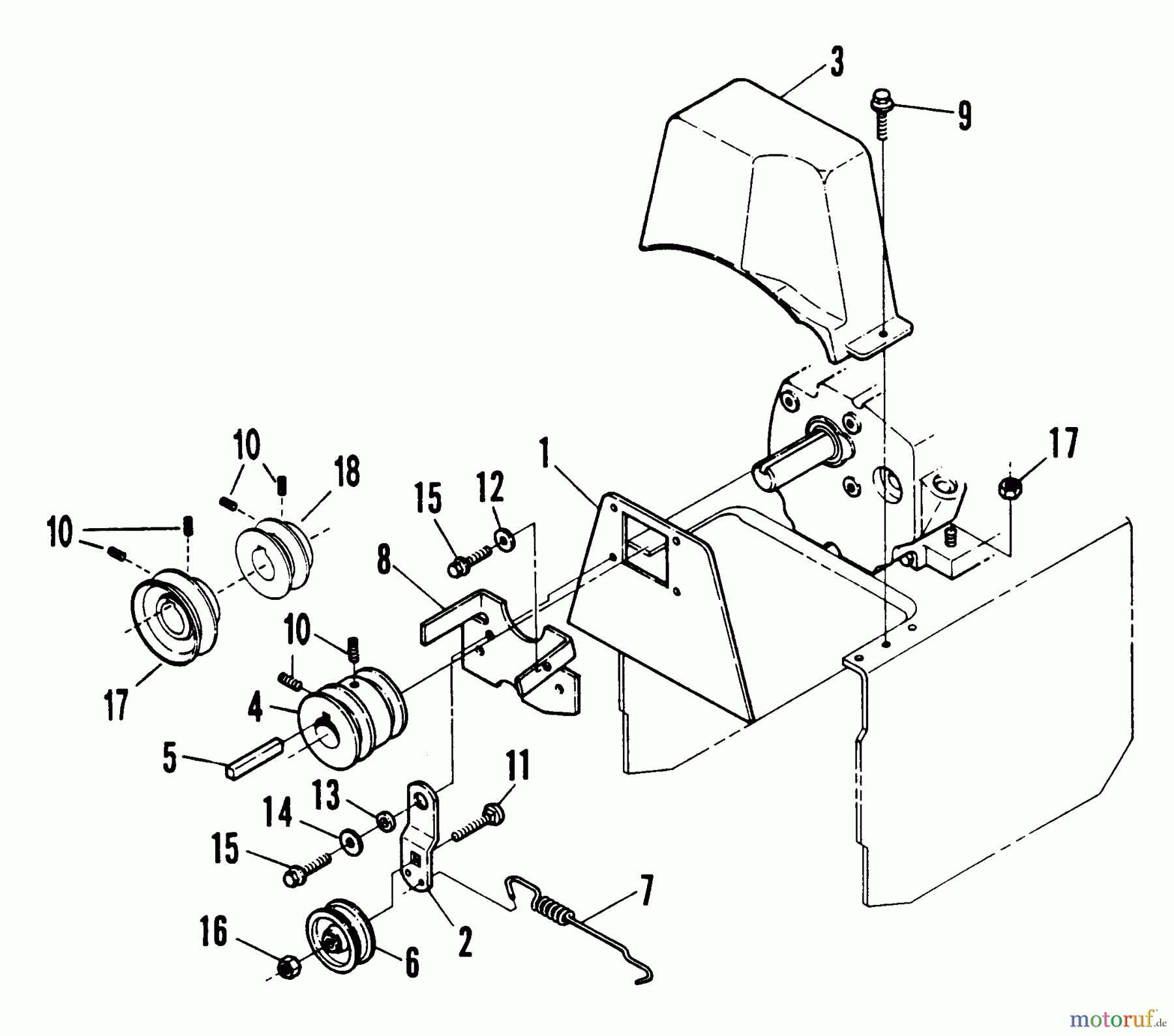

PosArticle NumberDescription
1 BS7038545YP(S) GUARD, ENGINE
1 BS7038545
2 BS7032128YP(S) ARM, IDLER, CLEAR
3 BS7017734YP(S) COVER, BELT
4 BS7014145YP(S) PULLEY, ENGINE
4 BS7014900YP(S) PULLEY, DOUBLE, .
5 BS7010210SMKEY, SQUARE, 1/4X2
6 BS7013850YPSPANNROLLE
7 BS7013918YPFEDER, SPANNROLLE
8 BS7032150YP(S) FINGER, BELT
9 BS7091084YPHWST, 1/4C X3/8 BZ
9 BS7091122
10 BS7090201SMHRSS, 5/16C X5/16
11 BS7091945YPBOLZEN, FAHRGESTELL
12 BS703350U-SCHEIBE, 5/16
12 BS7091076
13 BS703970DISTANZSTUCK
14 BS7013866YPFW, .39X1.5X.11 ZP
15 BS7090227YPHHCS, 5/16F X5/8 GR2
15 BS7091021YPHHCS, 5/16F X3/4
16 BS7090499YPHTLN, 3/8C GR.C ZP
16 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
17 BS7015376YP(S) PULLEY, BLOWER, 4
18 BS7015377YP(S) PULLEY, TRACTION,
