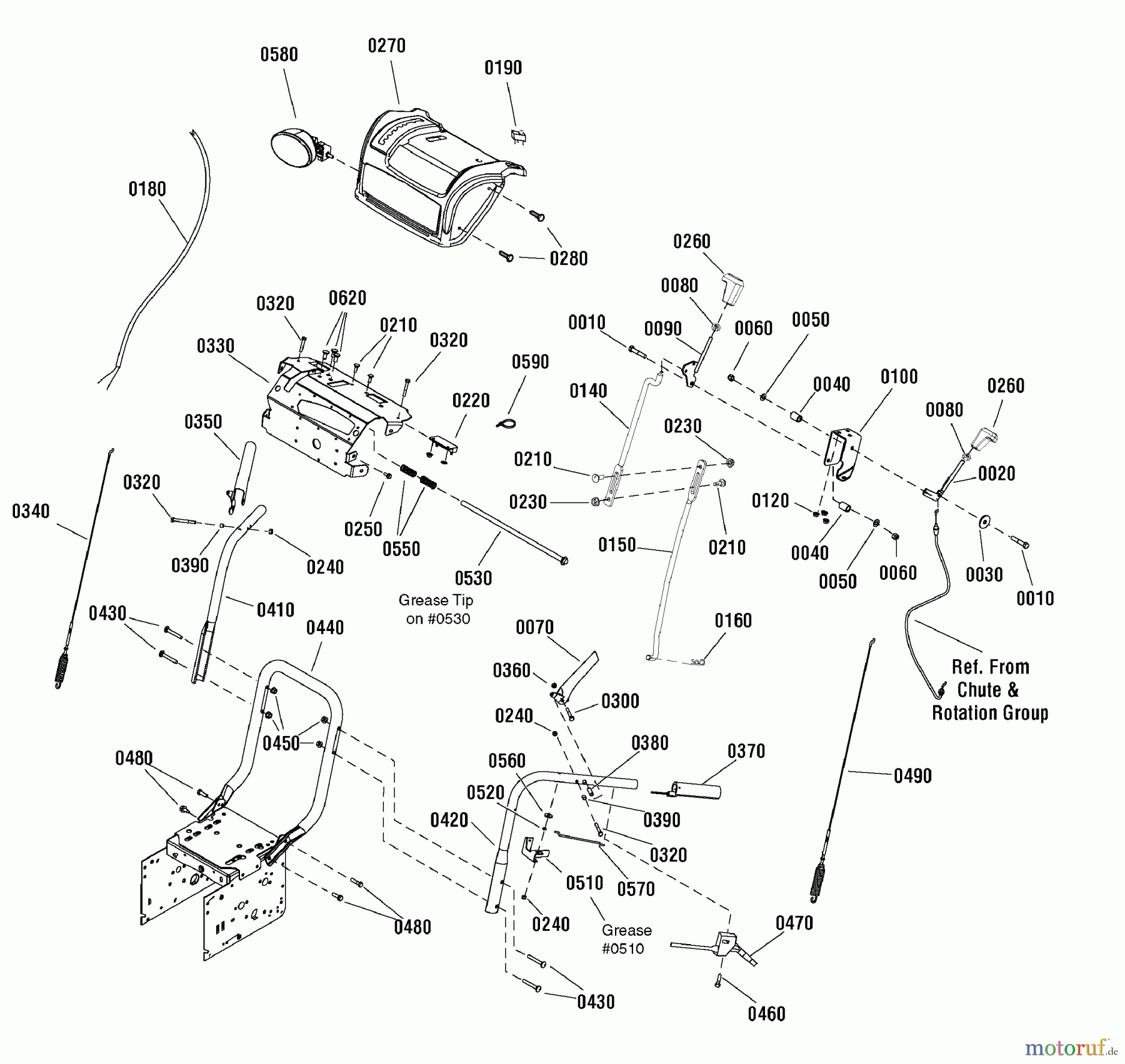

Snapper P1738E (1695684) - 38" Snowthrower, 16.5 HP, Two Stage, Large Frame Handles & Controls Group Spareparts

Handles & Controls Group P1738E (1695684) - Snapper 38" Snowthrower, 16.5 HP, Two Stage, Large Frame

Snapper Schneefräsen P1738E (1695684) - Snapper 38

Pos	Article Number	Description
0010	BS703589	CAPSCREW, 3/8-16X2
0020	BS1732427SM	ROD, CHUTE CONTROL
0030	BS703591	WASHER, .406X1.5X.12
0040	BS50786MA	SPRING,.509 DIA X0.75
0050	BS71072MA	WASHER, FLAT .406X.81
0060	BS1919439SM	NUT - HEX LOCK
0070	BS1737690YP	HEBEL, KUPPLUNG LI.
0080	BS1917421SM	MUTTER
0090	BS1735644YP	GASHEBEL
0100	BS1737684YP	HALTER, BEDIENTEIL
0120	BS703409	MUTTER, 5/16-18, GR5
0140	BS1735647YP	HOHENVERST.HEBEL
0150	BS1666255SM	ROD, SHIFT, LOWER
0160	BS1722460SM	PIN-QUICK .080WIRE 1.
0180	BS1735652YP	KABELSTRANG
0190	BS1732563SM	SWITCH, HANDWARMER
0210	BS1931317
0220	BS1724037SM	RESISTOR BLOCK
0230	BS703061	NUT, HEX KEPS, 1/4-20
0240	BS703232	MUTTER, 1/4-20, NYLOCK
0250	BS1927429SM	SCREW - HEX WASHER HD
0260	BS304437MA	HEBELGRIFF.38-16 SHOR
0270	BS1735642DSM	COVER, PANEL
0280	BS1960715SM	SCHRAUBE - TRUSS HD
0300	BS51374YP	KOPFSCHRAUBE
0320	BS1921971SM	KOPFSCHRAUBE, SECHSK. HD 3/8
0330	BS1732064BMYP	ABDECKUNG, ARMATURENBR.
0340	BS1735643YP	KABEL & FEDER KOMPL.
0350	BS1736323YP	GRIFF-KUPPL.-RECHTS
0360	BS1923358SM	NUT, LOCK
0370	BS1723965SM	HAND GRIP - HEATED
0380	BS703223	ABSTANDSHULSE ABGESETZT
0390	BS703137	SPACER
0410	BS1734587ASM	HANDLE - UPPER RH
0420	BS1734586ASM	HANDLE - UPPER LH
0430	BS1960723SM	BOLT - RD HD
0440	BS1735641AYP	HANDGRIFF UNTEN
0450	BS703115	MUTTER
0460	BS1725702SM	SCHRAUBE
0470	BS1718791SM	CABLE & HANDLE ASMY
0480	BS703585	CAPSCREW, 5/16-18X1
0490	BS1735646YP	ZUG, FRONT ANTRIEB
0510	BS1733505BMYP	HALTER
0520	BS703124	DISTANZSTUCK
0530	BS1733509SM	ROD & SPRING ASSY
0550	BS2108360SM	SPRING
0560	BS1960353SM	ABZIEHER-SCHEIBE
0570	BS1736360YP	GESTANGE
0580	BS1737966YP	SCHEINWERFER, OVAL
0590	BS1701011SM	TIE, SELF LOCKING .18
0620	BS340720MA	BOLT,5/16-18X.75 CARR
