Snapper 2450 - Walk-Behind Trimmer 2450R.T. Carburetor And Primer Pump Spareparts

• Start
• Snapper
• Trimmer
• 2450 - Snapper Walk-Behind Trimmer
• 2450R.T. Carburetor And Primer Pump

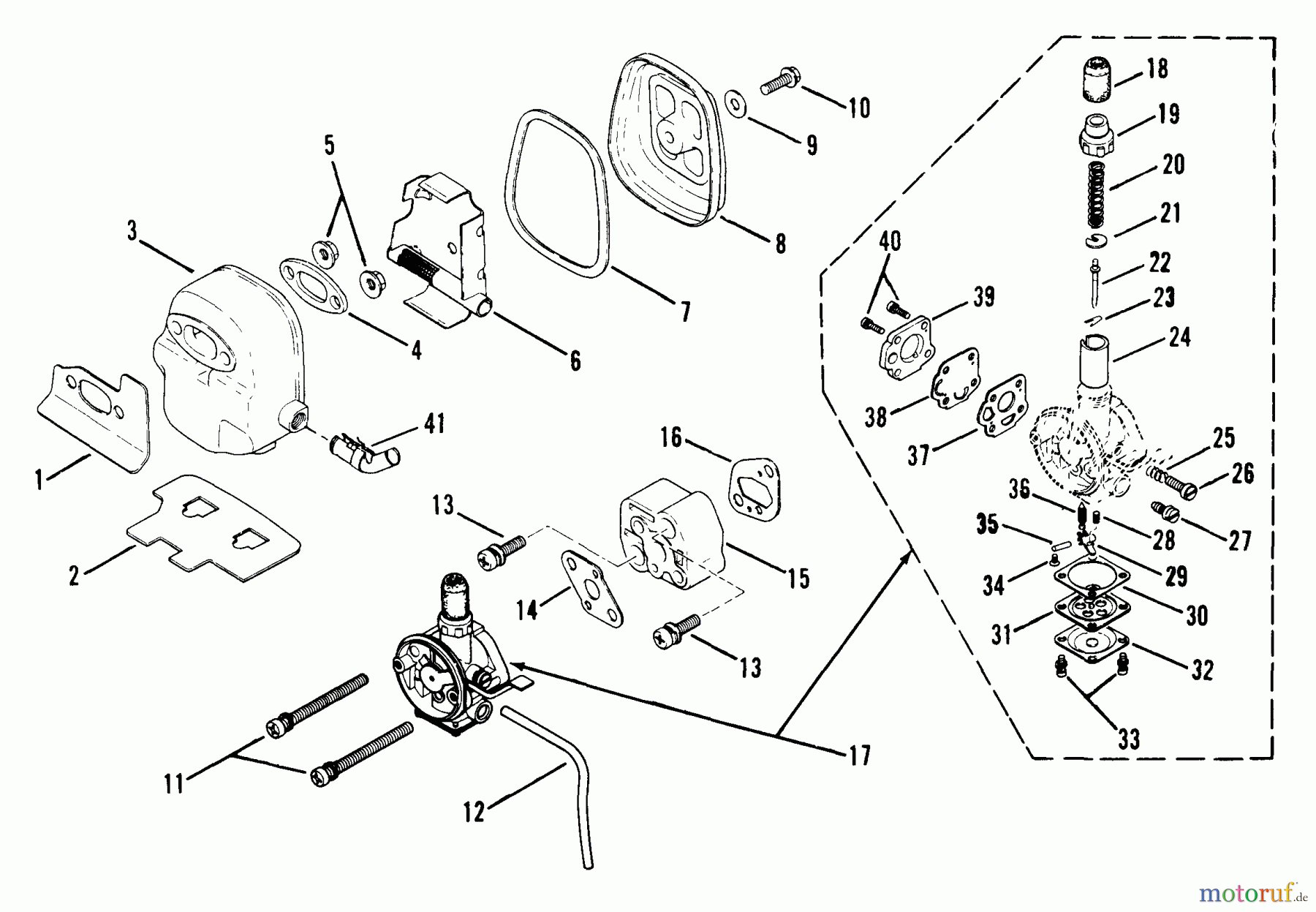

2450R.T. Carburetor And Primer Pump 2450 - Snapper Walk-Behind Trimmer

Pos		Article Number	Description
1		BS7044356YP	GASKET, MUFFLER
2		BS7044365
3		BS7044357
4		BS7044358YP	PLATE, MUFFLER
5		BS7044359
6		BS7044360YP	PLATE, ARRESTER #
7		BS7044361YP	GASKET, MUFFLER ##
8		BS7044362YP	COVER, MUFFLER ##
9		BS7044363YP	WASHER ##
10		BS7044364YP	BOLT, FLANGE ##
11		BS7044656
12		BS7044330YP	TUBE, FUEL ##
13		BS7044549YP	SCREW & WASHER, CARB.
14		BS7044329YP	GASKET, CARBURETOR
15		BS7044326
16		BS7044327YP	GASKET, INSULATOR #
17		BS7044331
18		BS7044057
19		BS7044332YP	CARB.CAP ##
20		BS7044333YP	SPRING, THROTTLE #
21		BS7044334
22		BS7044335
23		BS7044336
24		BS7044337
25		BS7044338
26		BS7044339
27		BS7044340YP	NEEDLE, MAIN ADJ
28		BS7044341YP	SPRING, VALVE INLET
29		BS7044346
30		BS7044342YP	GASKET, MAIN DIAPHRAG
31		BS7044348
32		BS7044349YP	COVER, MAIN DIAPHRAGM
33		BS7044078
34		BS7044076
35		BS7044347
36		BS7044073
37		BS7044345YP	GASKET, PUMP COVER
38		BS7044344
39		BS7044343
40		BS7044069
41		BS7044283
