Snapper 4150 - Walk-Behind Trimmer 4150R.T. Engine And Clutch Assembly Spareparts

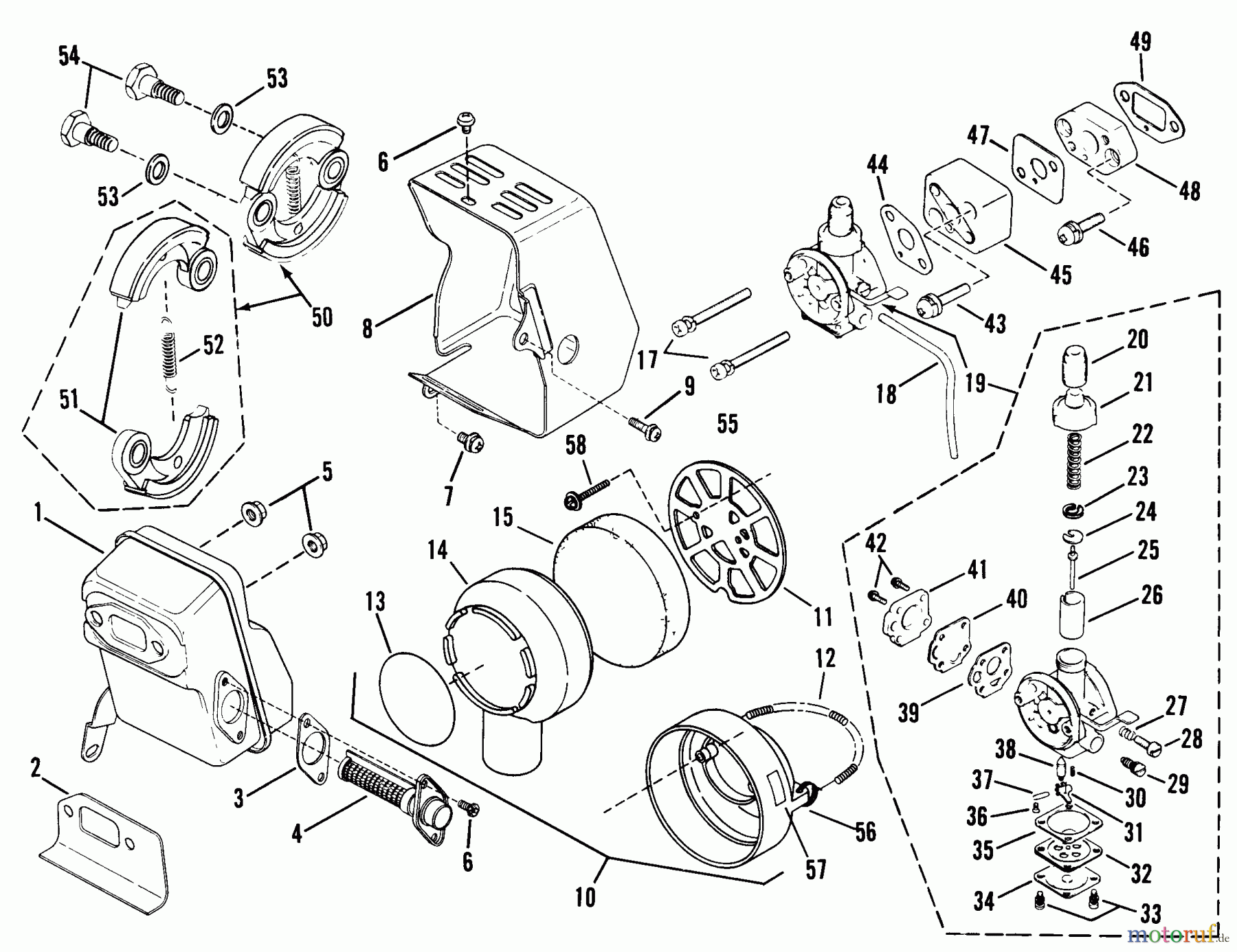

4150R.T. Engine And Clutch Assembly 4150 - Snapper Walk-Behind Trimmer
| Pos | Article Number | Description | |
| 1 | BS7044240 | ||
| 2 | BS7044088 | ||
| 3 | BS7044241YP | GASKET ## | |
| 4 | BS7044242 | ||
| 5 | BS7044091 | ||
| 6 | BS7044093 | ||
| 7 | BS7044095 | ||
| 8 | BS44293 | ||
| 9 | BS7044104 | ||
| 10 | BS7044258 | ||
| 11 | BS7044285YP | SPRING ## | |
| 12 | BS7044199 | ||
| 13 | BS23631 | ||
| 14 | BS7044287 | ||
| 15 | BS7044288 | ||
| 16 | BS7044087YP | SCREW & WASHER ## | |
| 17 | BS7044056 | ||
| 18 | BS7044054 | ||
| 19 | BS7044055 | ||
| 20 | BS7044057 | ||
| 21 | BS7044058 | ||
| 22 | BS7044059YP | SPRING, THROTTLE | |
| 23 | BS7044012YP | CLIP, NEEDLE ## | |
| 24 | BS7044060 | ||
| 25 | BS7044061 | ||
| 26 | BS7044062 | ||
| 27 | BS7044063 | ||
| 28 | BS7044064YP | SCREW, THROTTLE ADJ. | |
| 29 | BS7044065YP | JET NEEDLE ASSY. ## | |
| 30 | BS7044066 | ||
| 31 | BS7044074YP | ARM, FLOAT ## | |
| 32 | BS7044068 | ||
| 33 | BS7044078 | ||
| 34 | BS7044077 | ||
| 35 | BS7044067 | ||
| 36 | BS7044076 | ||
| 37 | BS7044075 | ||
| 38 | BS7044073 | ||
| 39 | BS7044072YP | GASKET, PUMP COVER | |
| 40 | BS7044071YP | DIAPHRAGM, PUMP # | |
| 41 | BS7044070 | ||
| 42 | BS7044069 | ||
| 43 | BS7044053 | ||
| 44 | BS7044051YP | GASKET, CARBURETOR | |
| 45 | BS7044050 | ||
| 46 | BS7044052 | ||
| 47 | BS7044049 | ||
| 48 | BS7044048 | ||
| 49 | BS7044047YP | GASKET, CARBURETOR | |
| 50 | BS7044098YP | CLUTCH ASSY. ## | |
| 51 | BS7044099 | ||
| 52 | BS7044100 | ||
| 53 | BS7044097 | ||
| 54 | BS7044096 | ||
| 55 | BS7044289 | ||
| 56 | BS7044206 | ||
| 57 | BS44291 | ||
| 58 | BS7044205YP | SCREW & WASHER | |
