Snapper 4150 - Walk-Behind Trimmer 4150R.T. Handle Assembly Spareparts

• Start
• Snapper
• Trimmer
• 4150 - Snapper Walk-Behind Trimmer
• 4150R.T. Handle Assembly

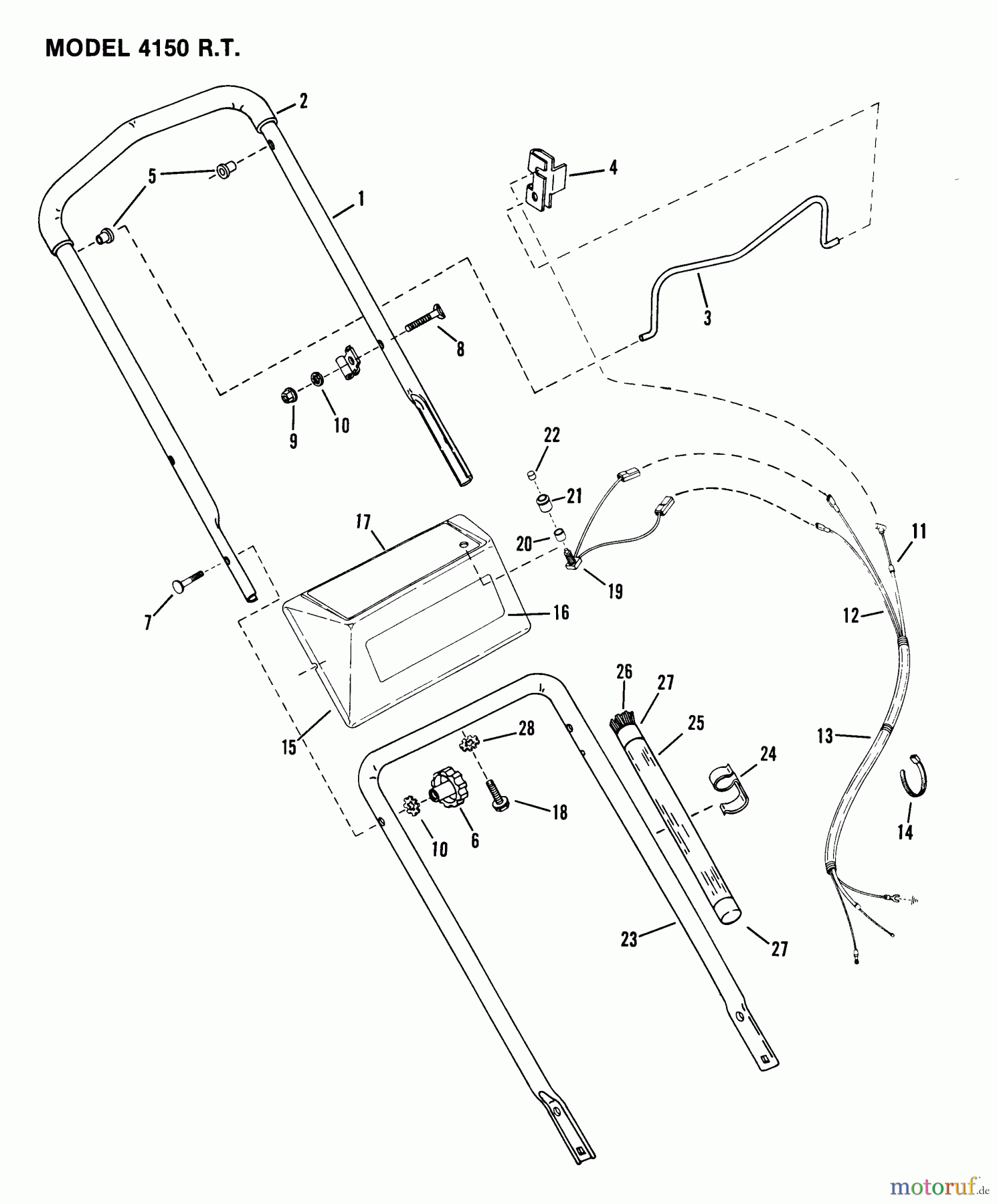

4150R.T. Handle Assembly 4150 - Snapper Walk-Behind Trimmer

Pos		Article Number	Description
1		BS36330
2		BS7023901YP	FOAM GRIP B
3		BS7047011YP	BAIL, OPC CONTROL
4		BS7033904YP	CLIP, ZONE CONTROL
5		BS7014343YP	LAGERBUCHSE
6		BS703065	WINGKNOB, 5/16-18
7		BS7091013SM	CRVHB, 5/16C X2
8		BS7016242
9		BS703233	MUTTER, 1/4-20, GR5
10		BS703936	WASHER, .325IDX.850OD
11		BS7023526
12		BS7023573
13		BS7023762
14		BS23779
15		BS7051820
16		BS7023637
17		BS7023571
18		BS703949	SCHRAUBE, 5/16-18.625
19		BS7023877YP	SWITCH ##
20		BS7023878
21		BS7023879
22		BS7015620YP	CAP, SWITCH
23		BS7036329
24		BS7023530
25		BS19107
26		BS15521
27		BS19108
28		BS7090189
