Compact Utility Attachments PARKING BRAKE ASSEMBLY Spareparts

• Start
• Compact Utility Attachments
• 22366 - Toro CE Kit, Dingo 323 Compact Utility Loader
• PARKING BRAKE ASSEMBLY

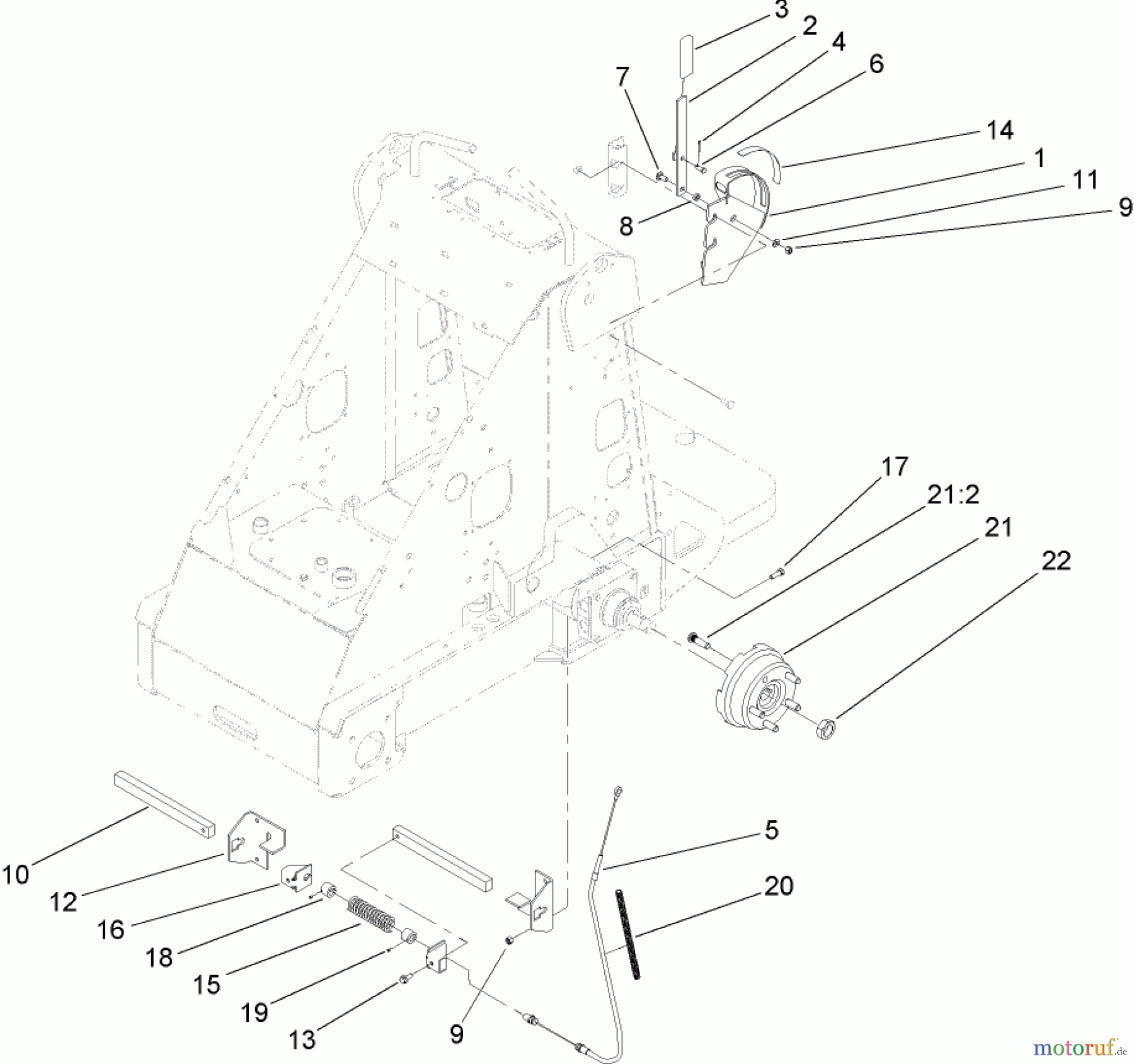

PARKING BRAKE ASSEMBLY 22366 - Toro CE Kit, Dingo 323 Compact Utility Loader

Pos		Article Number	Description
1		TR105-8414-03	PLATE ASM
2		TR100-1684-03	LEVER ASM
3		TR62-9130	Handgriff
4		TR3272-6	Splint
5		TR100-1679	Bremsseil
6		TR283-62	Bolzen
7		TR3230-23	Schloss Schraube
8		TR100-1683	HUB-LEVER
9		TR3296-29	Mutter
10		TR100-1674-03	BAR-BRAKE
11		TR3256-23	Scheibe
12		TR100-1676-03	BRACKET-BRAKE
13		TR100-1668	SCREW-FLANGE
14		TR100-1692	DECAL-BRAKE
15		TR100-1678-03	SPRING
16		TR100-1677-03	BRACKET-CABLE
17		TR322-5	Schraube
18		TR100-6274	TUBE-GUIDE
19		TR3245-20	SCREW-HSH
20		TR100-4697	TUBE-CONVOLUTED
21		TR105-4056	Radnabe
21:2		TR10-6830	Bolzen
22		TR99-3171	Splint
