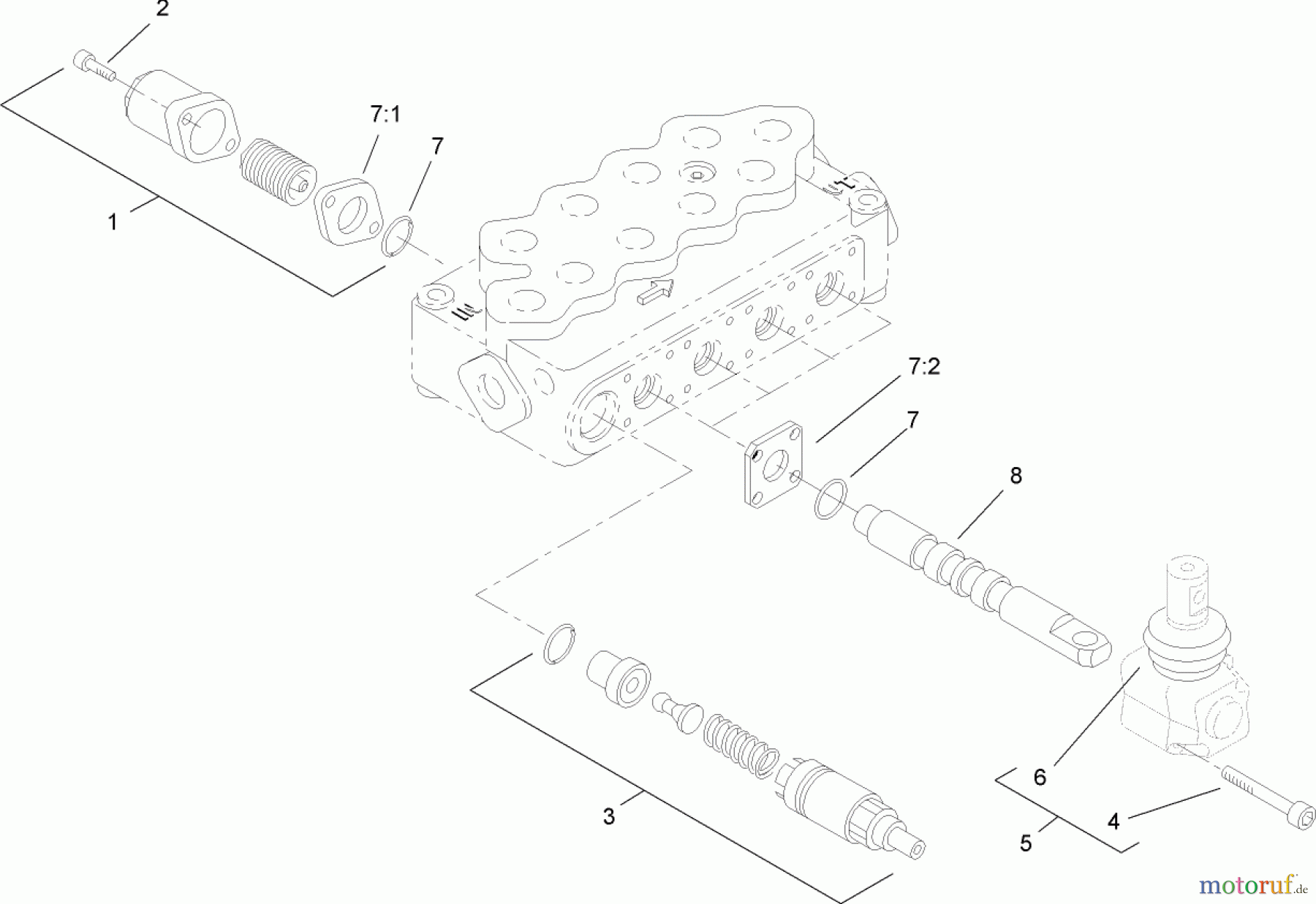

Compact Utility Loaders HYDRAULIC VALVE ASSEMBLY NO. 105-6246 Spareparts

HYDRAULIC VALVE ASSEMBLY NO. 105-6246 22317 - Toro Dingo 220 Compact Utility Loader (SN: 260000001 - 260999999) (2006)

Compact Utility Loaders 22317 - Toro Dingo 220 Compact Utility Loader (SN: 260000001 - 260999999) (2006) HYDRAULIC VALVE ASSEMBLY NO. 105-6246
PosArticle NumberDescription
1 TR100-8801HIGH FORCE SPRING KIT
1 TR100-8800STANDARD SPRING ASM
2 TR100-8802SCREW-CAP, END
3 TR100-8805VALVE-RELIEF
4 TR100-8806SCREW
5 TR100-8807OPERATOR ASM
6 TR100-8829BOOT
7 TR99-4390Dichtungssatz
7:1 TR99-3074Dichtung
7:2 TR99-3075GASKET
8 TR105-8441SPOOL-VALVE
