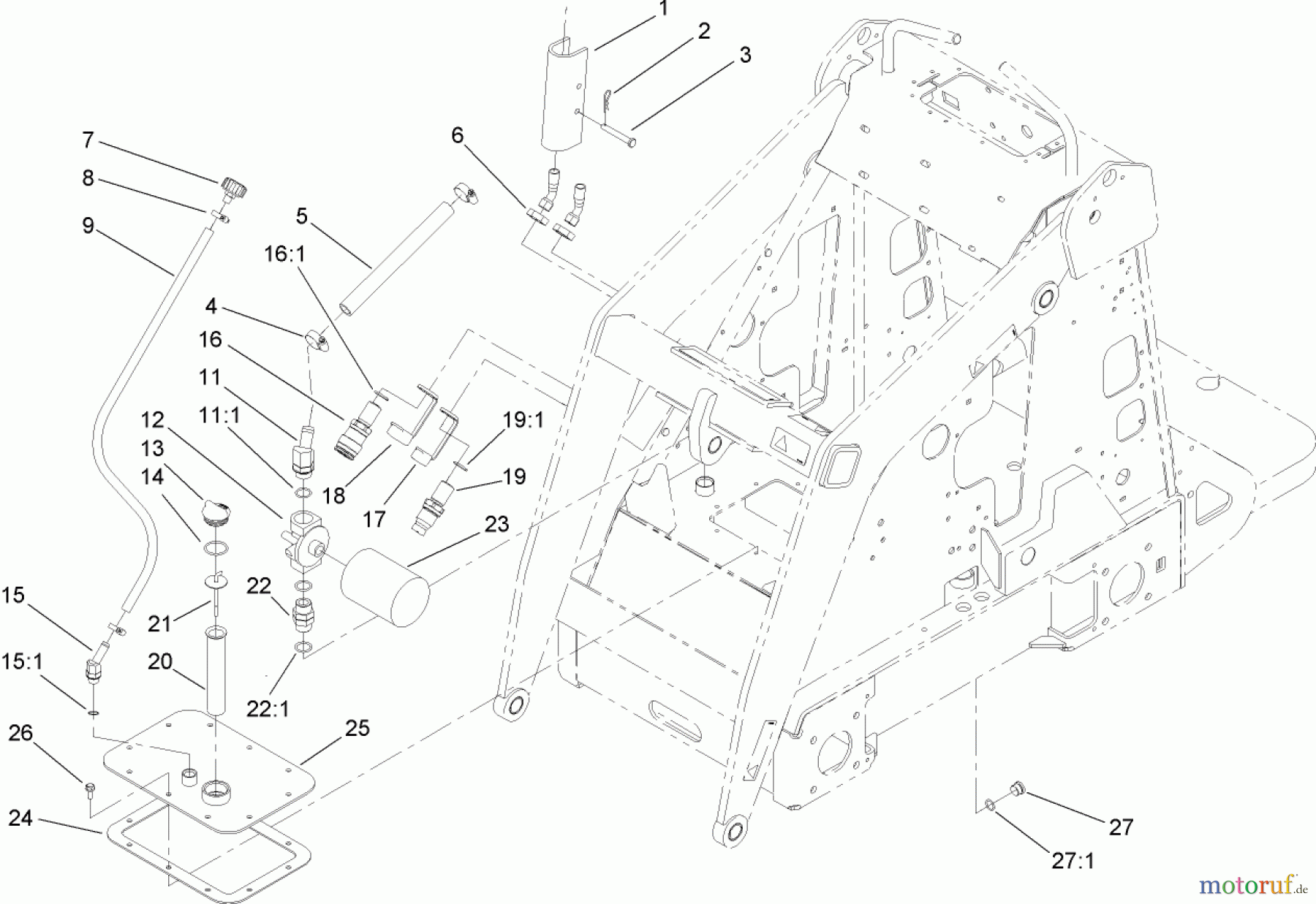

HYDRAULIC TANK AND FILTER ASSEMBLY 22336 - Toro Dingo 320-D Compact Utility Loader (SN: 270000001 - 270999999) (2007)

Compact Utility Loaders 22336 - Toro Dingo 320-D Compact Utility Loader (SN: 270000001 - 270999999) (2007) HYDRAULIC TANK AND FILTER ASSEMBLY
PosArticle NumberDescription
1 TR98-4675-01LOCK-CYLINDER
2 TR3290-467Haarnadelsicherung
3 TR283-52Splintbolzen
4 TR2412-129CLAMP-HOSE
5 TR98-4745HOSE-HYD, SUCTION, HI
6 TR340-74Mutter
7 TR68-6150Entluefter
8 TR2412-36Klemme
9 TR100-1748HOSE-VENT
11 TR354-127FITTING 45
11:1 TR237-81O.-Ring
12 TR92-5821Filterkopf
13 TR93-7498Tankdeckel
14 TR237-123O.Ring
15 TR354-126FITTING-HYD, 45 DEG
15:1 TR237-79O-RING
16 TR105-8394Schlauchkupplung
16:1 TR237-65Ring
17 TR100-8815Abdeckung
18 TR100-8816CAP-DUST, COUPLER
19 TR105-8395Leitung-Kupplung
19:1 TR237-65Ring
19:2 TR100-6120SEAL KIT
20 TR61-2790Sieb Fuer Filter
21 TR100-2097DIPSTICK-OIL
22 TR98-9906FITTING
22:1 TR237-81O.-Ring
23 TR54-0110Hydraulikoelfilter
24 TR98-9927Dichtung
25 TR100-1713-01COVER ASM
26 TR98-9940Schraube
27 TR353-988Stopfen
27:1 TR237-79O-RING
