Mäher, Stand-on DECK ASSEMBLY Spareparts

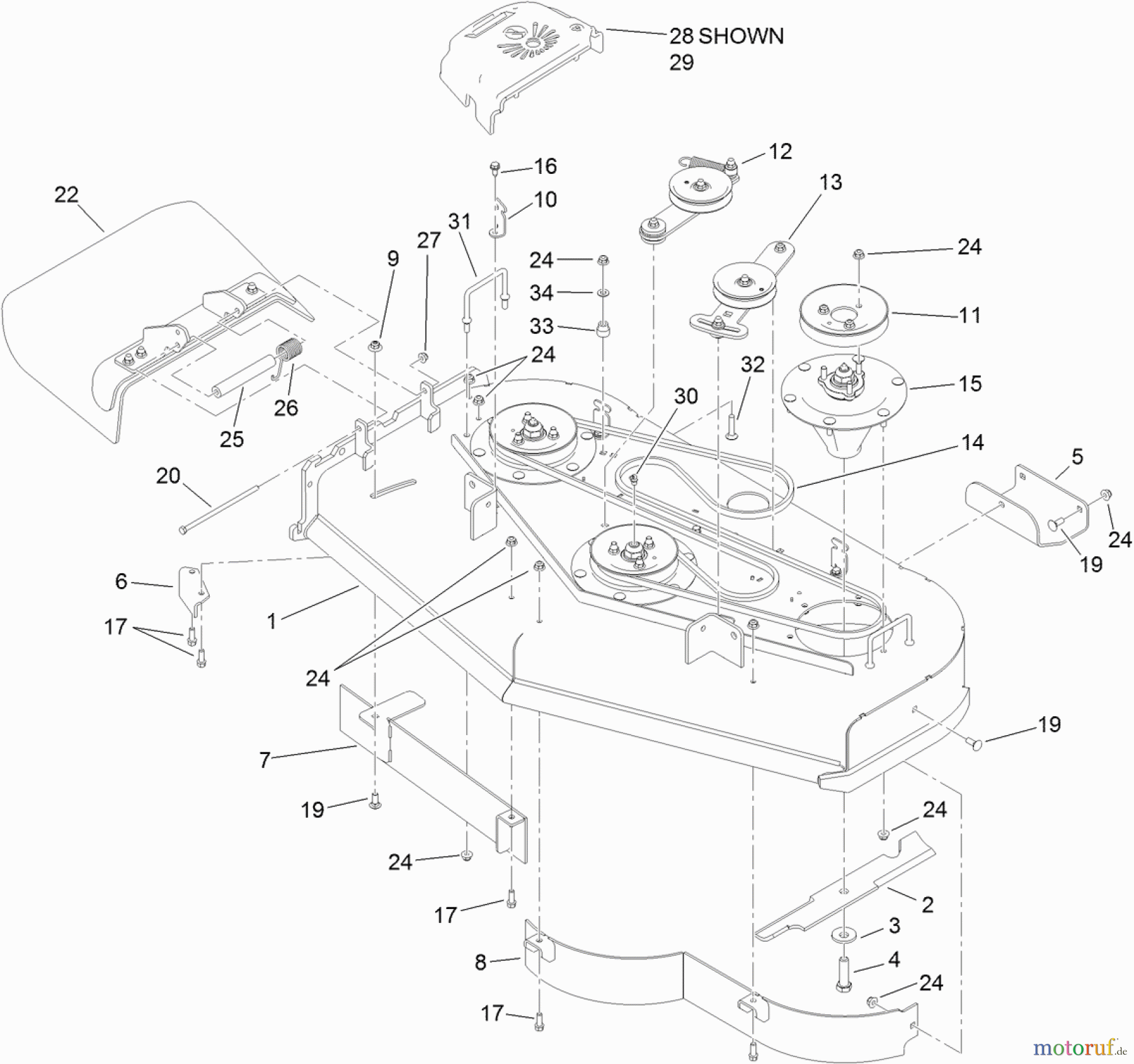

DECK ASSEMBLY 74548 - Toro GrandStand Mower, 48" TURBO FORCE Cutting Unit (SN: 312000001 - 312999999) (2012)

Mäher, Stand-on 74548 - Toro GrandStand Mower, 48
PosArticle NumberDescription
1 TR120-6401DECK ASM
2 TR107-3192-03BLADE-16.5 INCH (HIGH FLOW)
3 TR103-0865Spannscheibe
4 TR51-4060Messerschraube
5 TR114-1908-01SKID
6 TR107-8541-01BAFFLE-DISCHARGE
7 TR121-1790-01BAFFLE ASM
8 TR117-0410-0148 INCH BAFFLE ASM
9 TR109-6658NUT-FLANGE, NI
10 TR117-5758-03BRACKET-COVER
11 TR120-6432PULLEY
12 TR120-6410IDLER ARM ASM
13 TR117-0446IDLER ADJUST ASM
14 TR114-0453BELT-V
15 TR119-8560SPINDLE ASM
16 TR32144-70Schraube
17 TR95-1726Schraube
19 Mäher, Stand-on SchraubeTR3231-2Schraube
20 TR322-50SCREW-HH
22 TR120-2451DEFLECTOR ASM
24 TR104-8301Mutter
25 TR105-4622Buechse
26 TR108-4052SPRING-TORSION
27 TR104-8300Mutter
28 TR120-6431COVER-BELT, RH
29 TR120-6423COVER-BELT
30 TR302-33Fettnippel
31 TR109-6982WIREFORM-COVER
32 TR323-15Schraube
33 TR1-603496BUSHING-IDLER
34 Mäher, Stand-on WASHER-FLATTR3256-24WASHER-FLAT
