Zerto-Turn Mäher INJECTION PUMP AND GOVERNOR ASSEMBLY Spareparts

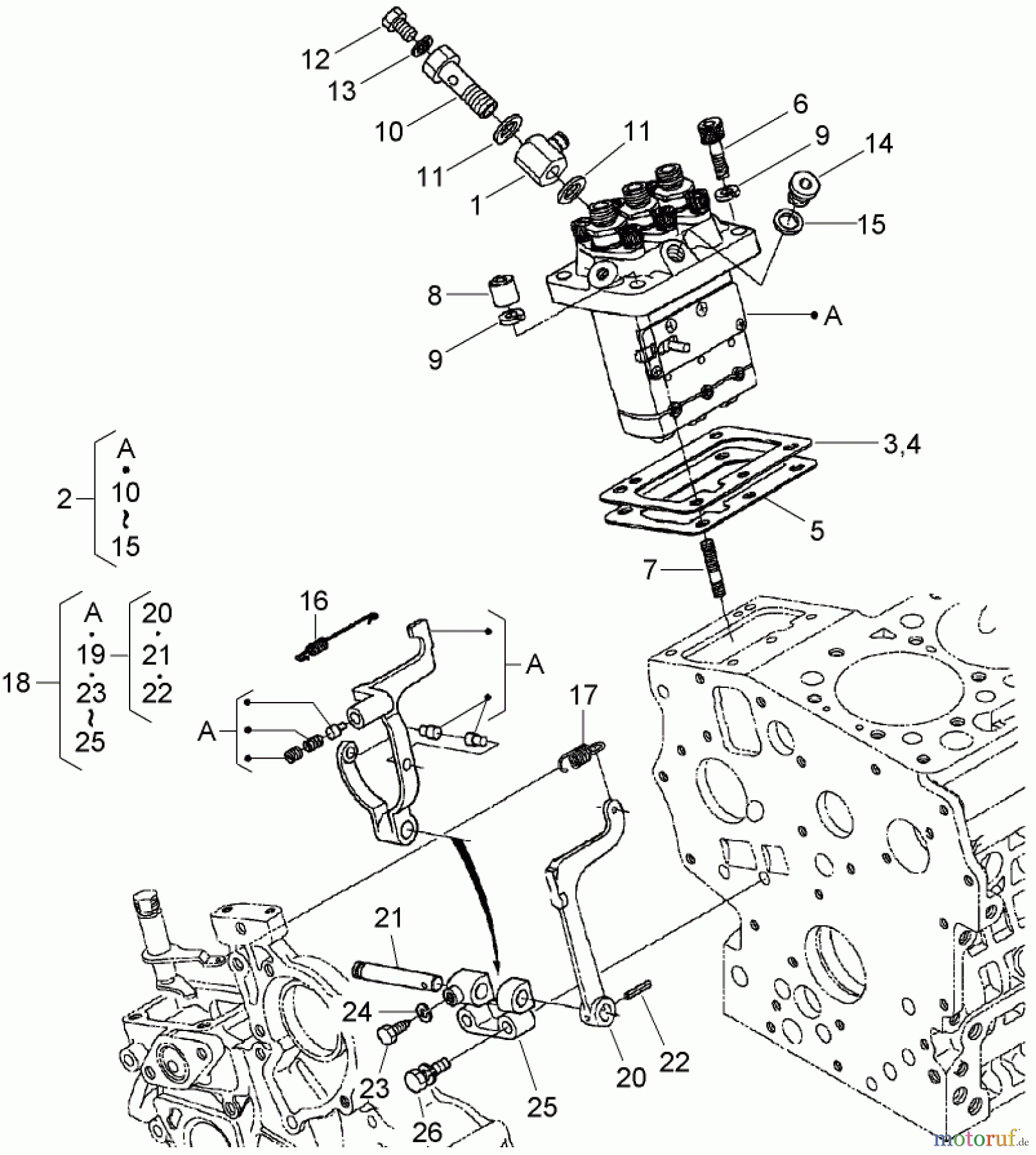

INJECTION PUMP AND GOVERNOR ASSEMBLY 74279TE (Z580-D) - Toro Z Master Mower, 52 Rear Discharge Deck (SN: 280000001 - 280999999) (2008)

Zerto-Turn Mäher 74279TE (Z580-D) - Toro Z Master Mower, 52 Rear Discharge Deck (SN: 280000001 - 280999999) (2008) INJECTION PUMP AND GOVERNOR ASSEMBLY
PosArticle NumberDescription
1 TR110-3764JOINT
2 TR110-3765INJECTION PUMP ASM
3 TR100-195198-9456
4 TR100-195298-9457
5 TR98-9458Ausgleichsscheibe
6 TR98-9361SCHRAUBE
7 TR98-9438Stehbolzen
8 TR98-9440HUTMUTTER
9 TR98-751598-7699
10 TR100-1896SCREW-HOLLOW
11 TR98-9445Dichtung
12 TR98-9430SCHRAUBE
13 TR98-9446GASKET
14 TR98-9466STOPFEN
15 TR98-9451GASKET
16 TR110-3766SPRING-START
17 TR110-3767SPRING-GOVERNOR
18 TR1-103768DISCONTINUED
19 TR100-1905FORK LEVER ASM
20 TR100-1907LEVER-FORK
21 TR100-1908WELLE
22 TR100-1751PIN-SPRING
23 TR100-1845SCHRAUBE
24 TR100-2204WASHER-SPRING
25 TR100-1909REGLERGABEL
26 TR100-1763BOLT
