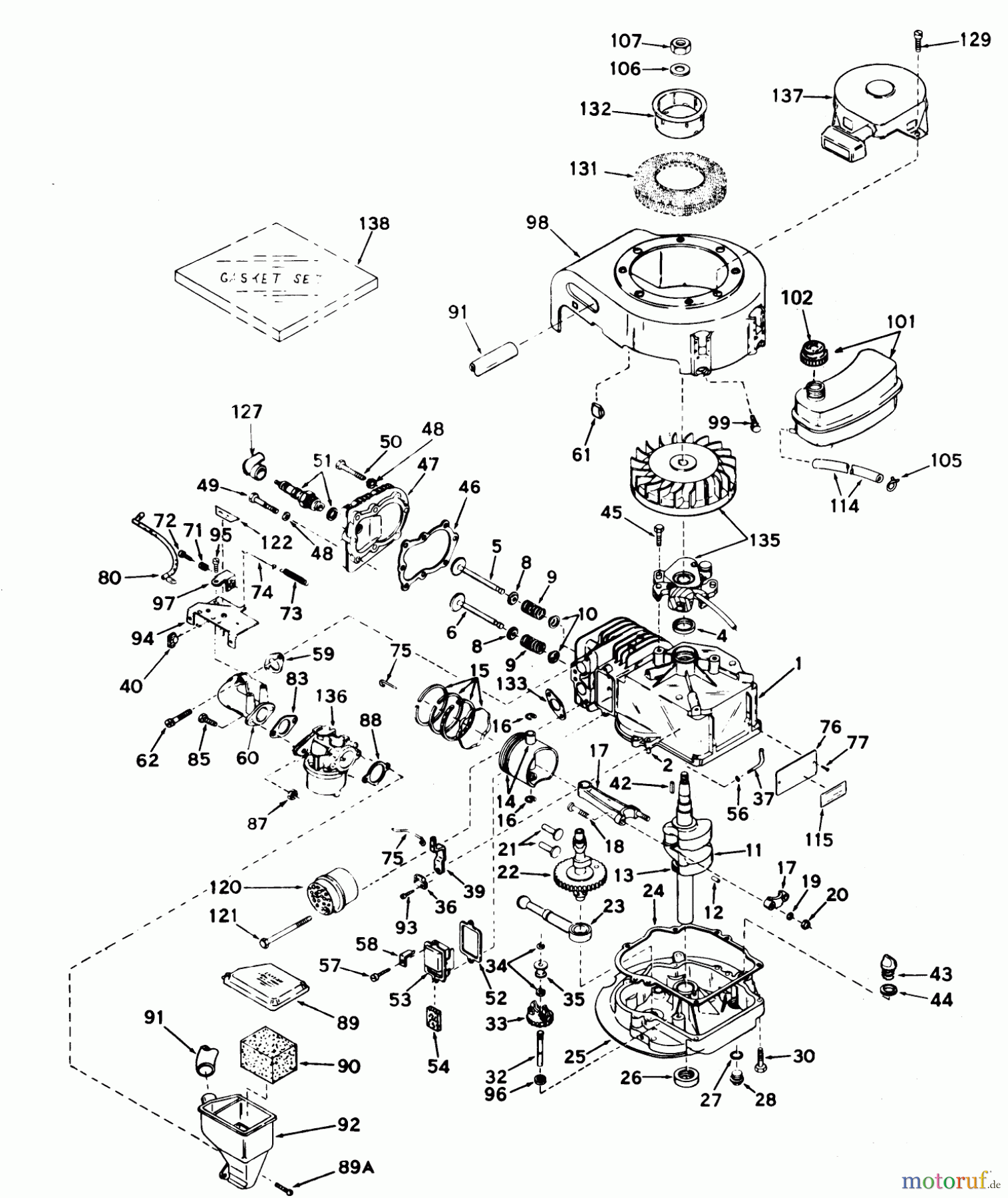

Toro 62837 - Shredder, 1974 (4000001-4999999) ENGINE TECUMSEH PRODUCTS MODEL NO. LAV 35-40712K Spareparts

ENGINE TECUMSEH PRODUCTS MODEL NO. LAV 35-40712K 62837 - Toro Shredder, 1974 (4000001-4999999)

Toro Neu Blowers/Vacuums/Chippers/Shredders 62837 - Toro Shredder, 1974 (4000001-4999999) ENGINE TECUMSEH PRODUCTS MODEL NO. LAV 35-40712K
PosArticle NumberDescription
1 TC32537C
2 TC26727DOWEL PIN
4 TC29183OIL SEAL
5 TC29314CINT VALVE ST
6 TC29315CPILOT FUER EIN- AUSLASSVENTIL
6 TC29313CEXH VALVE STD
6 TC29315A
8 TC31671VENTILTELLER
9 TC31672VENTILFEDER
10 TC31673VENTILTELLER
11 TC32936
12 TC29783SPLINT
13 TC27613
14 TC32538BKOLBEN U, BOLZEN
14 TC32548BPISTON & PIN 10
14 TC32549BKOLBEN U, BOLZEN
15 TC28986KOLBENRINGSATZ
15 TC28987RING SET 010
15 TC28988KOLBENRINGSATZ
16 TC20381RET RING
17 TC30963BCONN ROD
18 TC26706
19 TC20747
20 TC27573
21 TC27241VALVE LIFTER
22 TC35990NOCKENWELLE
23 TC29914OIL PUMP
24 TC37609DICHTUNG
25 TC37620MTG FLANGE
26 TC26208SIMMERRING
27 TC28833GASKET
28 TC36083OELABLASSCHRAUBE
30 TC650488SCREW
32 TC30574AREGLERWELLE
33 Toro ZAHNRADTC30591ZAHNRAD
34 TC29193SICHERUNGSRING
35 TC30588AREGLERSPULE
36 TC31335KLAMMER
37 TC30589REGLERSTANGE
39 TC32651GOV LEVER
40 TC32410KNOPF
42 TC610961KEIL
43 TC27625VERSCHLUSS
44 TC29673DICHTUNG
45 TC650489SCHRAUBE
46 TC29953CGASKET
47 TC36438CYL HEAD
48 TC26073SCHEIBE
49 Toro SCHRAUBETC6021ASCHRAUBE
50 TC650694ASCREW
51 TC33636ZUENDKERZE
52 TC31619AGASKET
53 TC31337BBREATHER
54 TC31410ELEMENT
56 TC28277WASHER
57 TC650128SCHRAUBE
58 TC30593CLIP
59 TC32649ADICHTUNG
60 TC33004AEINLASSROHR
61 TC27275CLIP
62 TC650451SCREW
71 TC32924ADJ SPRING
72 TC650688SCHRAUBE
73 TC31386REGLERFEDER
74 TC33151REGLERGELENK
75 TC33133REGLERGELENK
76 TC31345
77 TC28670
80 TC35349GROUND WIRE
83 TC26756DICHTUNG
85 TC6201SCHRAUBE
87 TC29752NUT
88 TC33051DICHTUNG
89 TC33007FILTERDECKEL
89A TC650707SCREW
90 TC33006AIR CLEANER
91 TC33008CLEANER TUBE
92 TC33005CLEANER BODY
93 TC651018Reglerschraube 8/32 x 19/64"
94 TC33152AVERGASERVERKLEIDUNG
95 TC30200SCHRAUBE
96 TC30590AWASHER
97 TC33150HALTER
98 TC32455B
99 TC650561SCHRAUBE
101 TC37947FUEL TANK
102 TC33032TANKDECKEL
105 TC26460CLAMP
106 TC650815WASHER
107 TC650607NUT
114 TC29774KRAFTSTOFFLEITUNG
115 TC36261AUFKLEBER
120 TC27181CSCHALLDAEMPFER
121 TC650253SCREW
122 TC36507AUFKLEBER
127 TC610118KERZENSTECKER
129 TC29716SCREW
131 TC590417SCREEN
132 TC590416STARTER CUP
133 TC26754ADICHTUNG
135 TC610794
136 TC631581VERGASER
137 TC590420ASTARTER
138 TC33238EDICHTUNGSATZ
