Toro 74140 (724-Z) - 724-Z Tractor, 1995 (590001-599999) FRAME, REAR HUB AND FRONT WHEEL FORK Spareparts

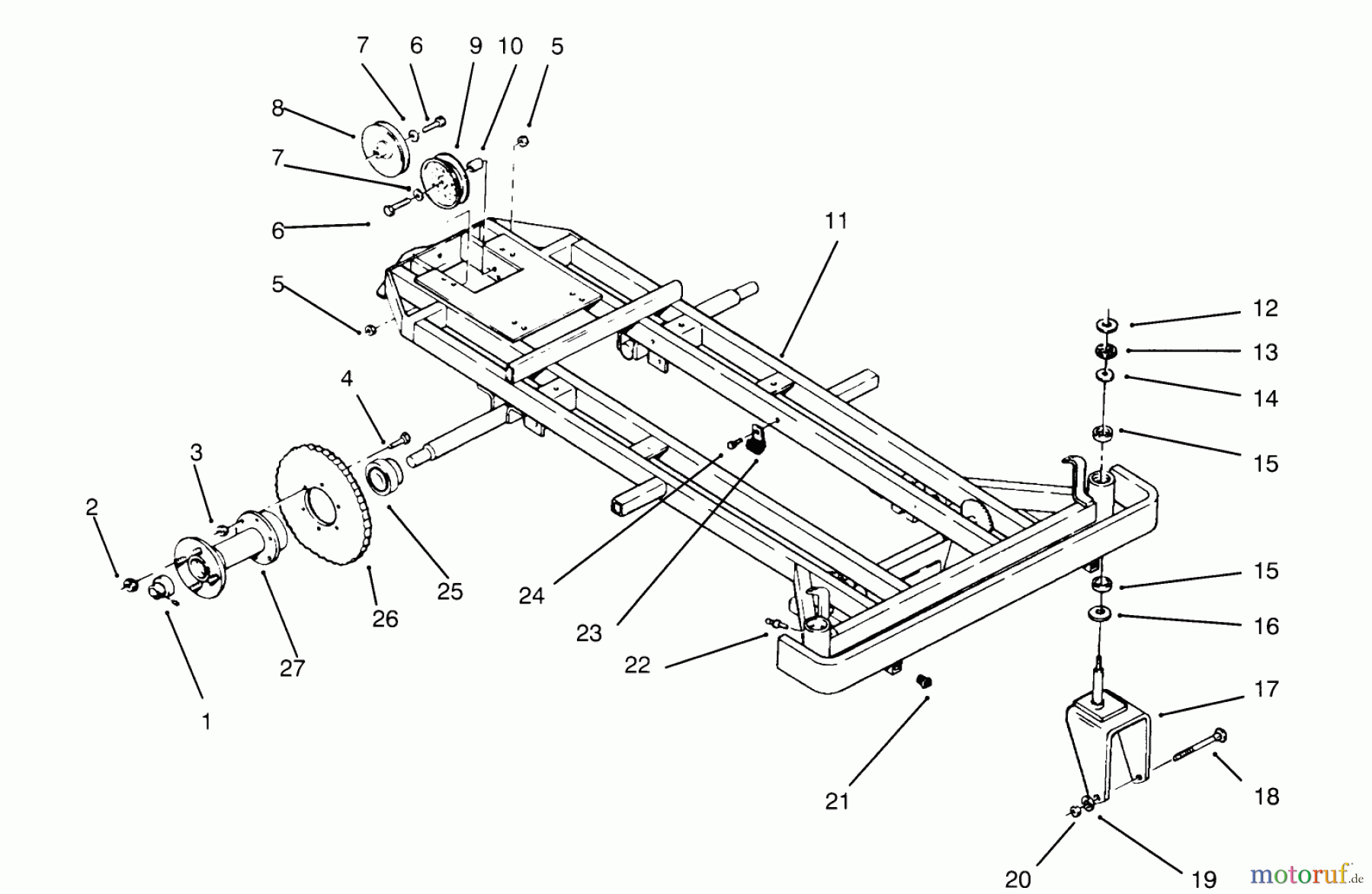

FRAME, REAR HUB AND FRONT WHEEL FORK 74140 (724-Z) - Toro 724-Z Tractor, 1995 (590001-599999)

Toro Neu Mowers, Zero-Turn 74140 (724-Z) - Toro 724-Z Tractor, 1995 (590001-599999) FRAME, REAR HUB AND FRONT WHEEL FORK
PosArticle NumberDescription
1 TR113530BEARING-REAR AXLE
2 TR242-50Mutter
3 TR32-9639
4 TR323-7Schraube
5 TR32-9639
6 TR323-10Schraube
7 TR3256-4WASHER-FLAT
8 TC115110
9 TR113633-03PULLEY-IDLER, FLAT
10 TC115108
11 TR92-1759DISCONTINUED
12 TR32151-91Seegerring
13 TR9547WASHER-THRUST
14 TR920251Scheibe
15 TR92-1714BUSHING PIVOT
16 TR9548WASHER-THRUST
17 TR79-4210-01FORK-FRONT WHEEL
18 TR327-15Schraube
19 TR3253-8Federring
20 TR3217-30NUT-HEX,HEAVY
21 TR115226PLUG-SQUARE PLASTIC
22 Toro SchmiernippelTR302-5Schmiernippel
23 TR8830Klemme
24 TR32144-4Schraube
25 TR113529BEARING-REAR AXLE
26 TR114295SPROCKET-REAR HUB
27 TR92-4845HUB-WHL REAR W/ZERK *B
TR3290-378KABELHALTER
