Toro 74353 (Z480) - TimeCutter Z480 Riding Mower, 2006 (260000001-260999999) CONTROL ASSEMBLY Spareparts

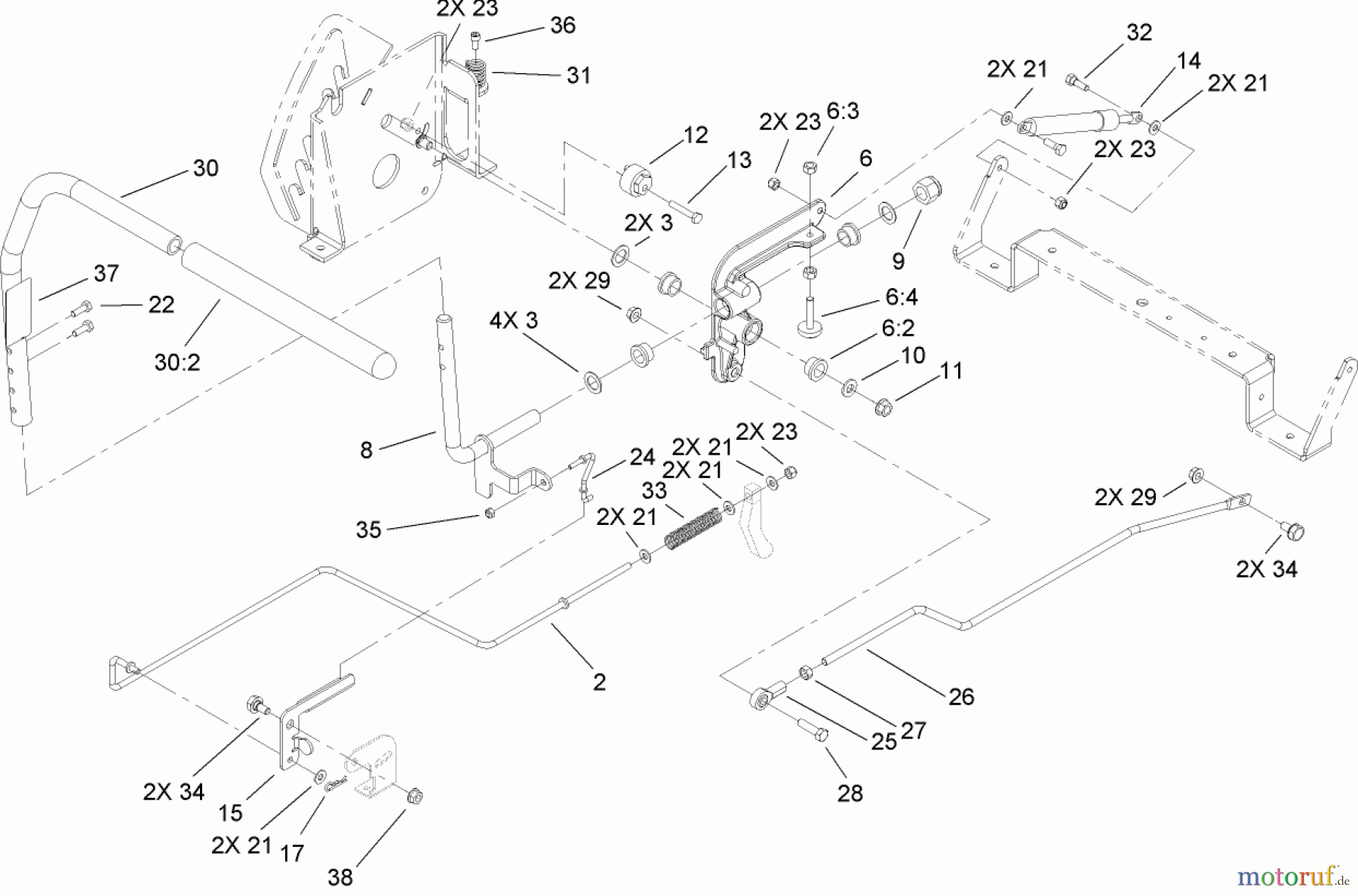

CONTROL ASSEMBLY 74353 (Z480) - Toro TimeCutter Z480 Riding Mower, 2006 (260000001-260999999)

Toro Neu Mowers, Zero-Turn 74353 (Z480) - Toro TimeCutter Z480 Riding Mower, 2006 (260000001-260999999) CONTROL ASSEMBLY
PosArticle NumberDescription
1 TR105-7045Bremsgestaenge Links
2 TR105-7044Bremsgestaenge Rechts
3 TR105-3481Lagerscheibe
5:2 TR105-3455BUSHING
5:3 TR3217-6NUT-HEX
5:4 TR105-3486STOP-ADJUSTMENT
5 TR110-1869LH ACTIVATOR ARM ASM
6 TR110-1870RH ACTIVATOR ARM ASM
6:2 TR105-3455BUSHING
6:3 TR3217-6NUT-HEX
6:4 TR105-3486STOP-ADJUSTMENT
7 TR105-3488LH PIVOT SHAFT ASM
8 TR105-3487RH PIVOT SHAFT ASM
9 TR3296-53Mutter
10 Toro WASHER-FLATTR3256-24WASHER-FLAT
11 TR3296-59Mutter
12 TR107-4874ECCENTRIC
13 TR321-9SCREW-HH
14 TR103-2913Stossdaempfer
15 TR106-2181BELLCRANK
17 TR1-806003HAARNADELSICHERUNG
21 TR3256-22Scheibe
22 Toro SchraubeTR321-4Schraube
23 Toro MutterTR3296-42Mutter
24 TR106-2179Bremsgestaenge
25 TR1-543017Kugelgelenk Rechts
26 TR105-7048ROD-HYDRO
27 TR3219-2Mutter
28 TR322-6Schraube
29 Toro MutterTR32128-20Mutter
30 TR110-6508HANDLE / GRIP ASM
30:2 TR108-6187GRIP
31 TR105-3469Druckfeder
32 TR106-2214BOLT-SHOULDER
33 TR105-3465Druckfeder
34 TR37-8771Schraube
35 TR3296-2Mutter
36 TR3274-52Schraube
37 TR106-8742DECAL
38 TR32128-25NUT-HF
