Toro 74360 (Z4200) - TimeCutter Z4200 Riding Mower, 2009 (290000001-290001198) FRAME ASSEMBLY Spareparts

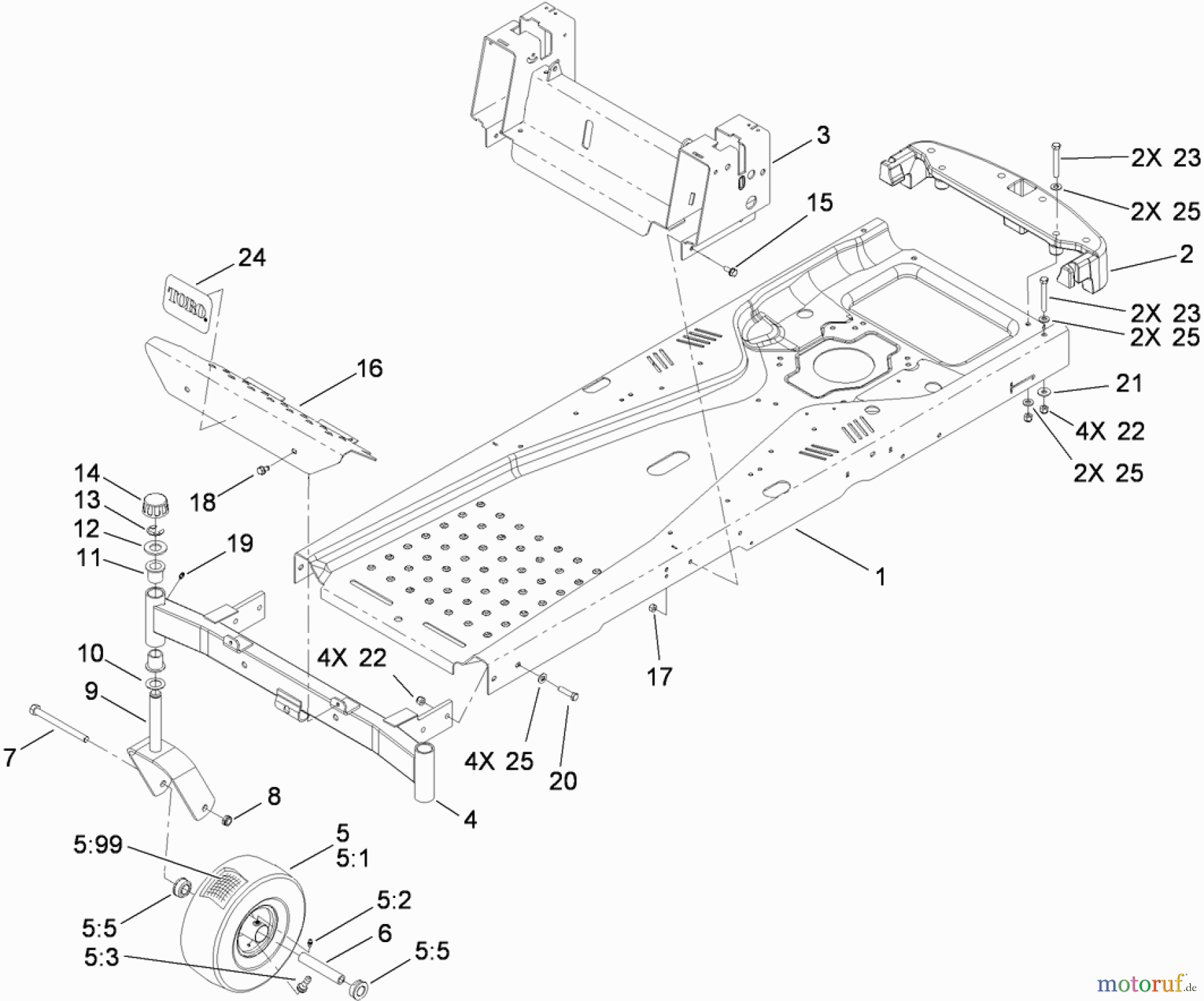

FRAME ASSEMBLY 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2009 (290000001-290001198)

Toro Neu Mowers, Zero-Turn 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2009 (290000001-290001198) FRAME ASSEMBLY
PosArticle NumberDescription
1 TR115-2464-01FRAME
2 TR110-6899-03BUMPER-REAR
3 TR115-5041-03SEAT PIVOT/CONTROL ASM
4 TR108-7882-01FRONT AXLE ASM
5 TR105-3471Rad
5:1 TR105-1943TIRE
5:2 Toro SchmiernippelTR302-5Schmiernippel
5:3 TR5108VENTIL
5:5 TR114-1640BUSHING-FLANGE
5:99 TR93-4244Schlauch
6 TR104-3667Radbuechse
7 TR3252-2SCHRAUBE
8 TR3296-45NUT-LOCK, NI
9 TR108-7851-01CASTER FORK ASM
10 TR110-6767WASHER-THRUST
11 TR1-303514BEARING-FLANGED
12 TR104-8076Scheibe
13 TR32151-103Seegerring
14 TR61-9780Abdeckung
15 TR3234-47SCREW-HHF
16 TR108-7855-03FOOTREST
17 Toro MutterTR3296-29Mutter
18 TR32104-32SCREW-HWH
19 Toro SchmiernippelTR302-5Schmiernippel
20 TR323-8SCREW-HH
21 TR80-6990Scheibe
22 TR32-9639
23 TR323-13Schraube
24 TR99-2385DECAL
25 Toro WASHER-FLATTR3256-24WASHER-FLAT
