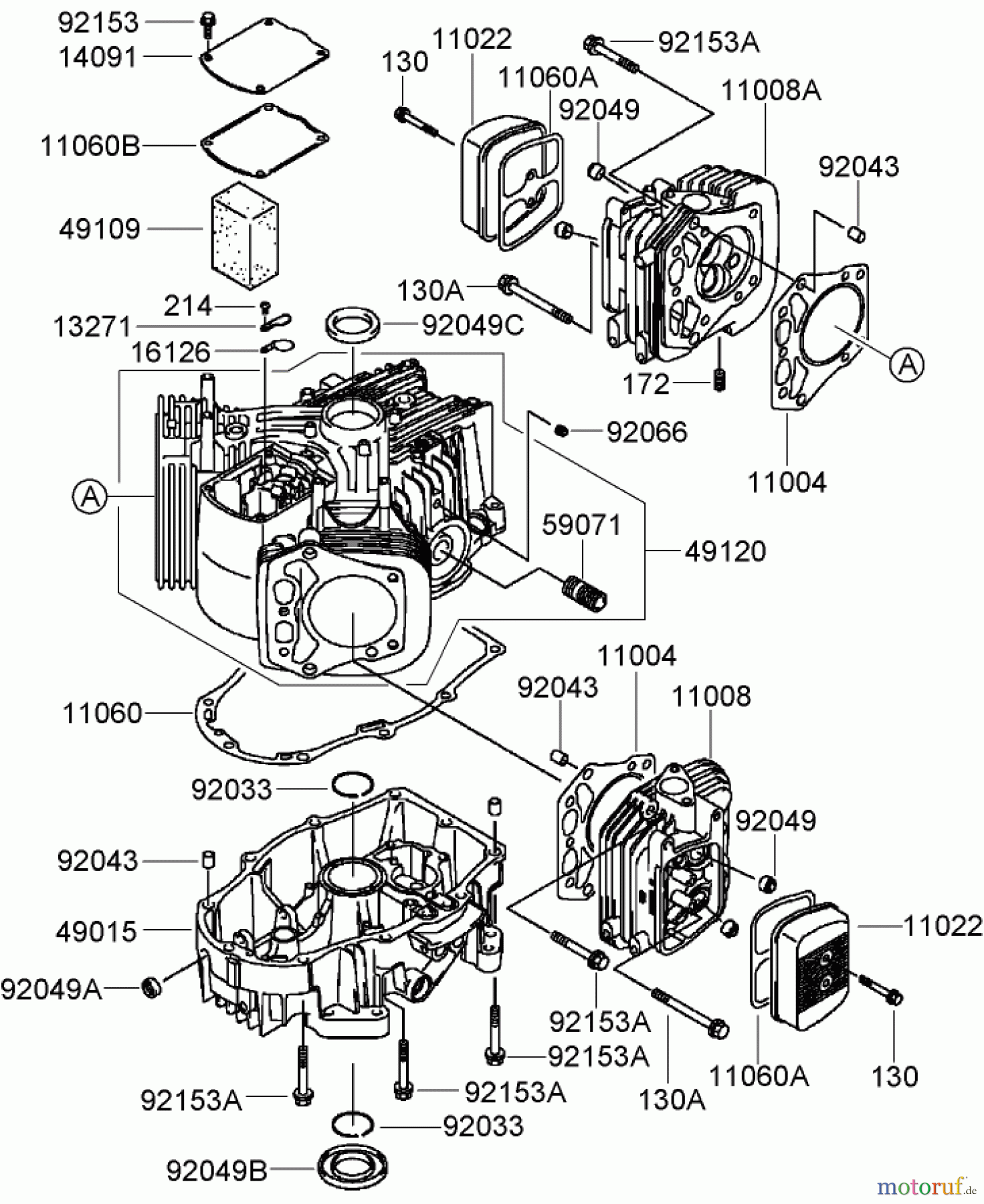

Toro 74374 (Z5040) - TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH641V-AS31 Spareparts
CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH641V-AS31 74374 (Z5040) - Toro TimeCutter Z5040 Riding Mower, 2008 (280000001-280999999)
| Pos | Article Number | Description | |
| 11004 | KA110047006 | ZYLINDERKOPFDICHTUNG | |
| 11008 | KA110087023 | HEAD-COMP-CYLINDER,#2 | |
| 11008A | KA110087024 | HEAD-COMP-CYLINDER,#1 | |
| 11022 | KA110227029 | CASE-ROCKER | |
| 11060 | KA110617098 | GASKET,CRANKCASE COVE | |
| 11060A | KA110607013 | GASKET,ROCKER CASE B2 | |
| 11060B | KA110607014 | GASKET,BREATHER B2 | |
| 13271 | KA132717006 | PLATE | |
| 14091 | KA140917004 | COVER | |
| 16126 | KA161267001 | VALVE | |
| 49015 | KA490157064 | COVER-CRANKCASE | |
| 49109 | KA999997072 | KIT.,COVER | |
| 49120 | KA491207092 | CRANKCASE-COMP | |
| 59071 | KA590712079 | JOINT | |
| 92033 | KA920337004 | RING-SNAP | |
| 92043 | KA920437001 | PIN | |
| 92049 |  | KA920497001 | SEAL-OIL |
| 92049A |  | KA920497019 | SEAL-OIL,SO 8X14X5 HS |
| 92049B | KA920497011 | SEAL-OIL,SD 35X62X8 L | |
| 92049C | KA920497014 | SEAL-OIL,SD 35X52X7 R | |
| 92066 | KA920667026 | PLUG | |
| 92153 | KA921537043 | BOLT,6X12 | |
| 92153A | KA921537054 | BOLT,8X50 | |
| 130 | KA130AA0640 | BOLT-FLANGED | |
| 130A | KA130CA0875 | BOLT-FLANGED,8X75 | |
| 172 | KA172BA0818 | BOLT-STUD | |
| 214 | KA214AA0408 | SCREW-PAN+- | |
