Toro 74399 (Z5020) - TimeCutter Z5020 Riding Mower, 2008 (280000001-280999999) DECK LIFT AND SEAT SUPPORT ASSEMBLY Spareparts

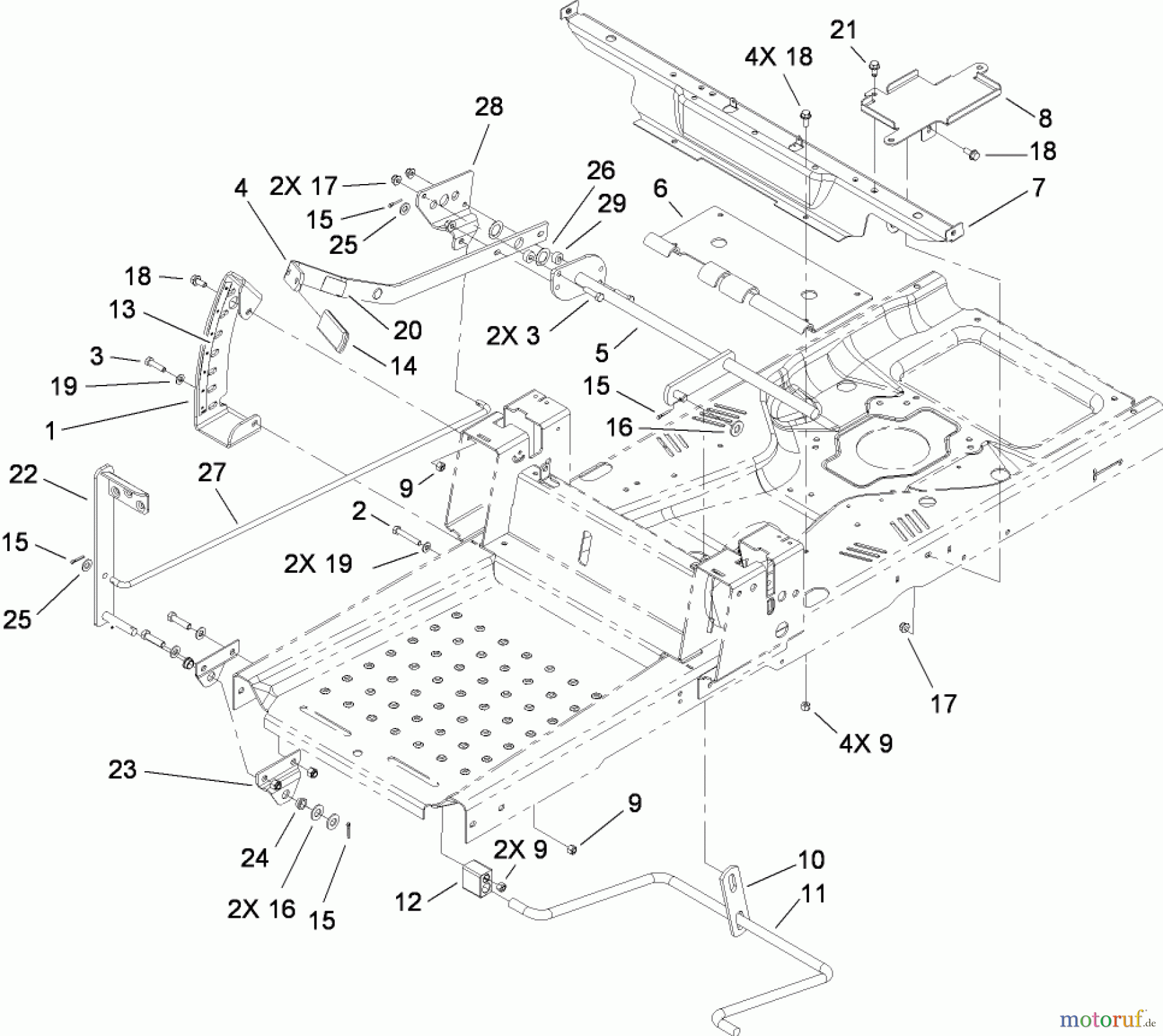

DECK LIFT AND SEAT SUPPORT ASSEMBLY 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2008 (280000001-280999999) DECK LIFT AND SEAT SUPPORT ASSEMBLY
PosArticle NumberDescription
1 TR112-4027-03SECTOR-HOC
2 TR322-10Schraube
3 TR322-6Schraube
4 TR112-3960-03LIFT ARM ASM
5 TR108-7841-03LIFT LEVER ASM
6 TR110-6800-03PLATE-LIFT
7 TR110-6805-03BRACKET-SEAT/PODS
8 TR110-1937-03TRAY-BATTERY
9 Toro MutterTR3296-29Mutter
10 TR108-7840LINK-LIFT
11 TR108-7839ARM-LIFT, REAR
12 TR108-7845BLOCK-PIVOT
13 TR110-6824DECAL-HOC
14 TR105-3450GRIP-LEVER, LIFT
15 TR3272-10PIN-COTTER
16 TR3256-26WASHER-FLAT
17 TR104-8300Mutter
18 TR3234-47SCREW-HHF
19 TR3256-23Scheibe
20 TR106-8743DECAL-HOC
21 TR32104-32SCREW-HWH
22 TR112-4018-03PEDAL ASM
23 TR112-3954-03BRACKET-FOOTLIFT
24 TR256-156BUECHSE
25 Toro WASHER-FLATTR3256-24WASHER-FLAT
26 TR3-6498Scheibe
27 TR112-3958ROD-LIFT
28 TR112-3959PLATE-FOOTLIFT
29 TR112-3961SPACER
