Toro 74433 (ZD420) - TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999) CONTROL ASSEMBLY Spareparts

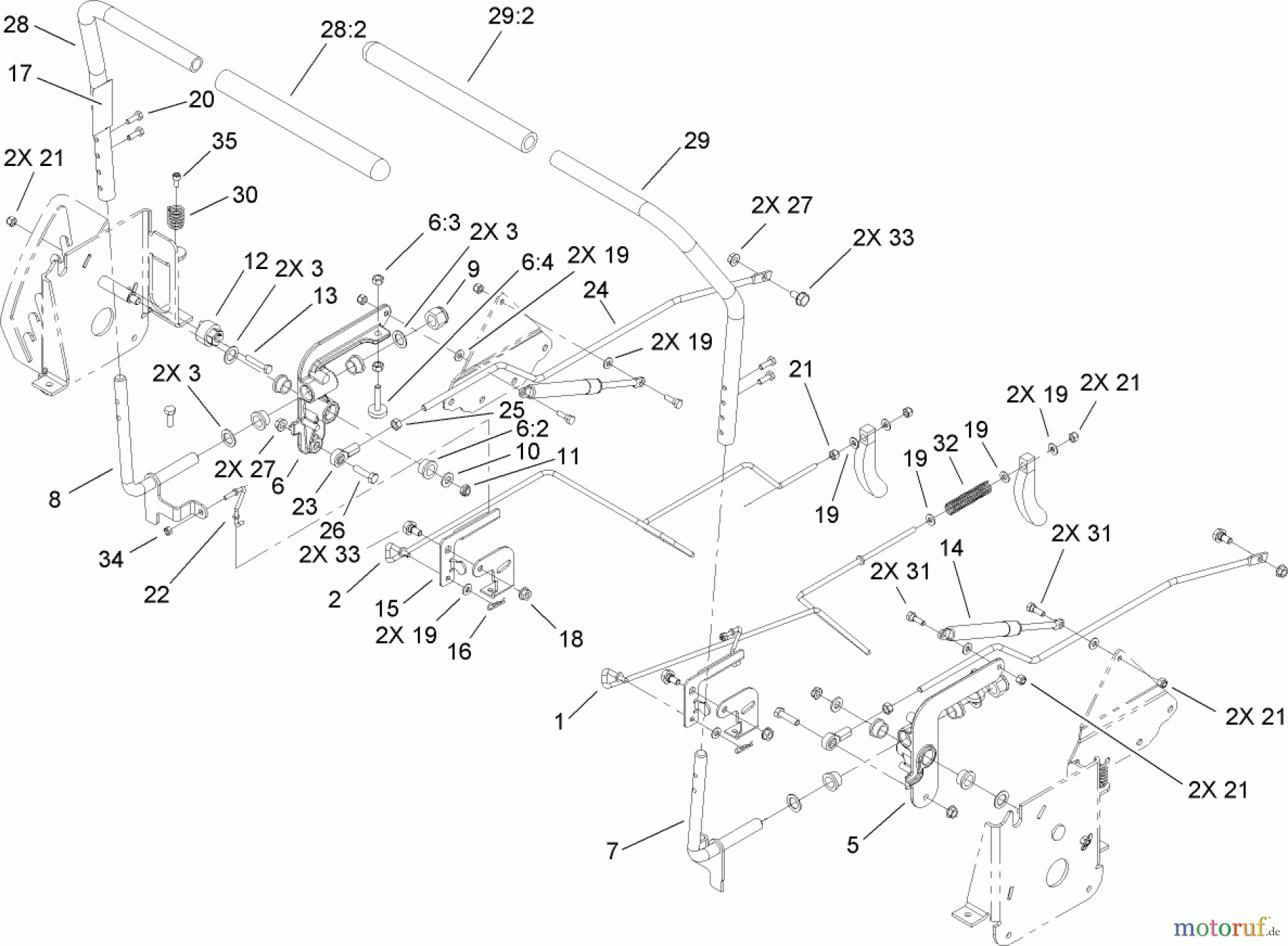

CONTROL ASSEMBLY 74433 (ZD420) - Toro TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74433 (ZD420) - Toro TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999) CONTROL ASSEMBLY
PosArticle NumberDescription
1 TR108-8792ROD-BRAKE, LH
2 TR110-1041ROD-BRAKE, RH
3 TR105-3481Lagerscheibe
5 TR110-1869LH ACTIVATOR ARM ASM
5:2 TR105-3455BUSHING
5:3 TR3217-6NUT-HEX
5:4 TR105-3486STOP-ADJUSTMENT
6 TR110-1870RH ACTIVATOR ARM ASM
6:2 TR105-3455BUSHING
6:3 TR3217-6NUT-HEX
6:4 TR105-3486STOP-ADJUSTMENT
7 TR105-3488LH PIVOT SHAFT ASM
8 TR105-3487RH PIVOT SHAFT ASM
9 TR3296-53Mutter
10 Toro WASHER-FLATTR3256-24WASHER-FLAT
11 TR3296-59Mutter
12 TR107-4874ECCENTRIC
13 TR321-9SCREW-HH
14 TR103-2913Stossdaempfer
15 TR106-2181BELLCRANK
16 TR1-806003HAARNADELSICHERUNG
17 TR106-8742DECAL
18 TR32128-25NUT-HF
19 TR3256-22Scheibe
20 Toro SchraubeTR321-4Schraube
21 Toro MutterTR3296-42Mutter
22 TR106-2179Bremsgestaenge
23 TR1-543017Kugelgelenk Rechts
24 TR105-7048ROD-HYDRO
25 TR3219-2Mutter
26 TR322-6Schraube
27 Toro MutterTR32128-20Mutter
28 TR108-8746RH CONTROL HANDLE ASM
28:2 TR1-633257GRIFFGUMMI
29 TR108-8747LH CONTROL HANDLE ASM
29:2 TR1-633257GRIFFGUMMI
30 TR105-3469Druckfeder
31 TR106-2214BOLT-SHOULDER
32 TR105-3465Druckfeder
33 TR37-8771Schraube
34 TR3296-2Mutter
35 TR3274-52Schraube
