Toro 74601 (Z17-44) - Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220000912) MOTION CONTROL ASSEMBLY Spareparts

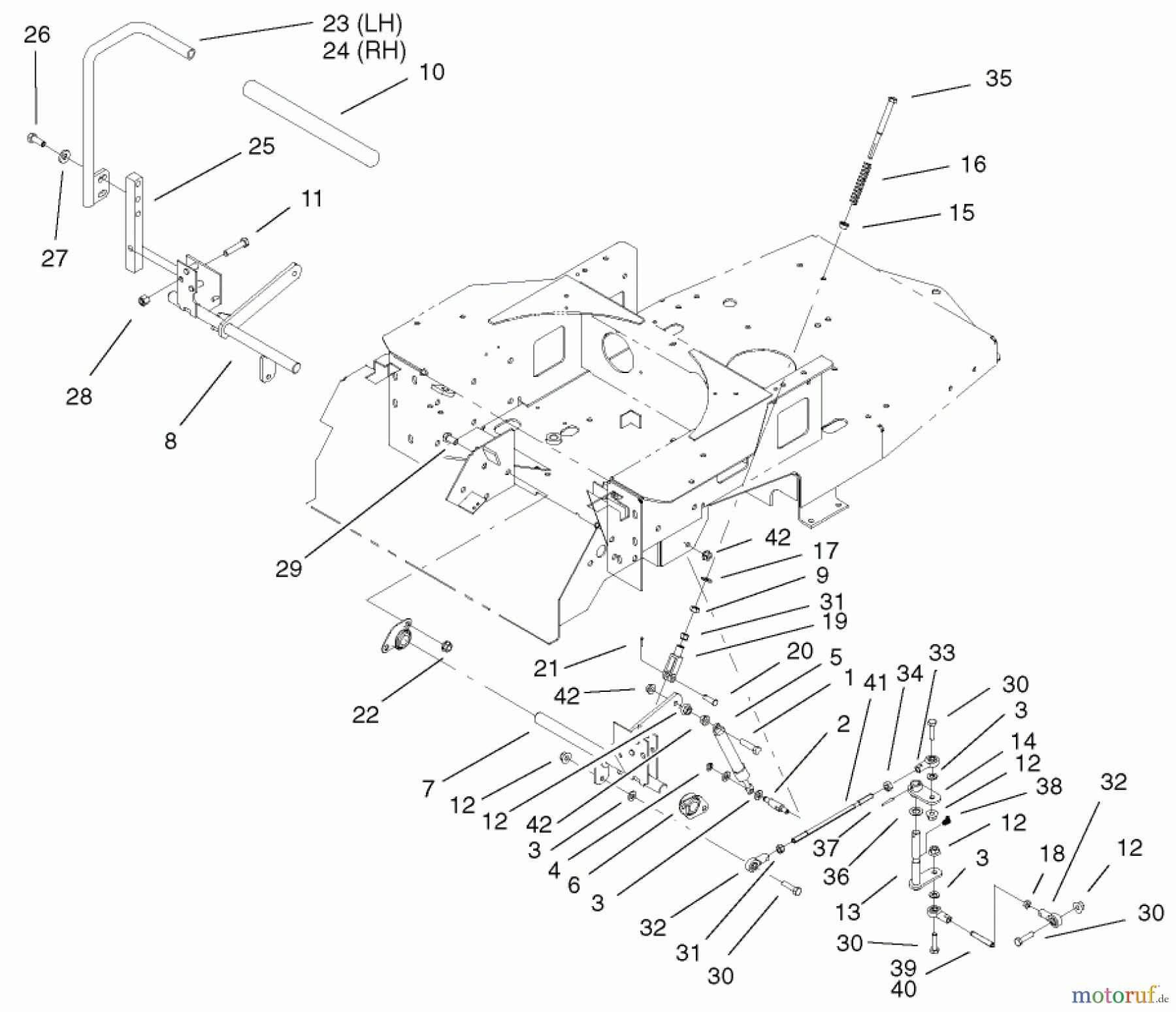

MOTION CONTROL ASSEMBLY 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220000912)

Toro Neu Mowers, Zero-Turn 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2002 (220000001-220000912) MOTION CONTROL ASSEMBLY
PosArticle NumberDescription
1 TR1-403180SCREW-HH
2 TR1-653316BOLZEN
3 TR3256-23Scheibe
4 TR32120-35Ring
5 TR103-2913Stossdaempfer
6 TR1-633102Flanschlager
7 TR100-7341BRACKET-MOTION CONTROL, LH
8 TR100-7340KIPPHEBEL
9 TR3296-4Mutter
10 TR1-633257GRIFFGUMMI
11 TR323-9Schraube
12 Toro MutterTR32128-20Mutter
13 TR100-7311PIVOT ASM
14 TR100-7313Fuehrungshebel
15 TR1-603735BUSHING-FLANGED
16 TR1-603807Druckfeder
17 TR3256-2Scheibe
18 TR3220-2Mutter
19 TR1-303105YOKE-ADJUSTABLE
20 TR1-808280PIN-CLEVIS
21 TR3272-5Splint
22 TR3290-357NUT-HHF, WHIZ
23 TR103-0409-03LEVER-CONTROL, LH
24 TR103-0410-03LEVER-CONTROL, RH
25 TR103-0407ARM
26 TR323-6Schraube
27 TR98-5975Wellenscheibe
28 TR32-9639
29 TR323-4Schraube
30 TR322-5Schraube
31 TR3219-2Mutter
32 TR1-543017Kugelgelenk Rechts
33 TR1-633152BALLJOINT-LH
34 TR1-804524Mutter
35 TR1-603737BOLT-RETURN, NEUTRAL
36 TR100-7336WASHER
37 TR933156Spannstift (10)
38 TR302-11Nippel
39 TR104-3606LINKAGE-LOWER, RH
40 TR104-3607Gestaenge Links
41 TR104-3605Gestaenge
42 TR32128-25NUT-HF
