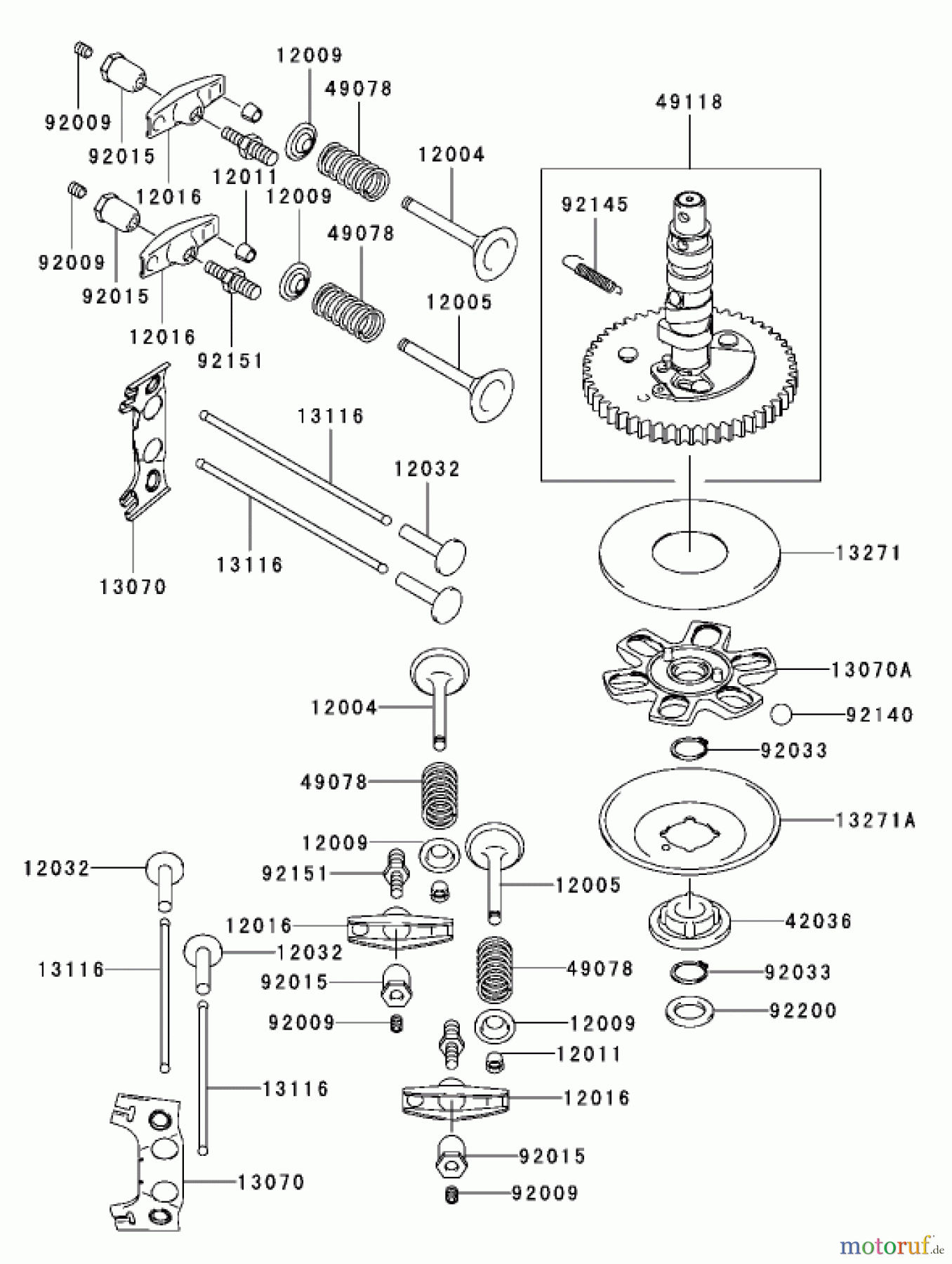

Toro 74801 (18-52ZX) - 18-52ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999) VALVE / CAMSHAFT ASSEMBLY KAWASAKI FH531V-CS07 Spareparts
VALVE / CAMSHAFT ASSEMBLY KAWASAKI FH531V-CS07 74801 (18-52ZX) - Toro 18-52ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999)
| Pos | Article Number | Description | |
| 12004 | KA120047001 | EINLASSVENTIL | |
| 12005 | KA120057001 | AUSLASSVENTIL | |
| 12009 | KA120097001 | RETAINER-VALVE-SPRING | |
| 12011 | KA120112056 | VENTILKEIL | |
| 12016 | KA120167008 | ARM-ROCKER | |
| 12032 | KA120327001 | TAPPET | |
| 13070 | KA130707001 | GUIDE | |
| 13070A | KA130707004 | GUIDE | |
| 13116 | KA131162057 | STOESSELSTANGE 8X16 | |
| 13271 | KA132717007 | PLATE | |
| 13271A | KA132717021 | PLATE | |
| 42036 | KA420367001 | SLEEVE | |
| 49078 | KA490787001 | SPRING-ENGINE VALVE | |
| 49118 | KA491187004 | CAMSHAFT-COMP | |
| 92009 | KA920092341 | SCREW | |
| 92015 | KA920152253 | SCHRAUBENMUTTER | |
| 92033 |  | KA920337001 | RING-SNAP |
| 92140 | KA921407005 | BALL | |
| 92145 | KA921457001 | SPRING | |
| 92151 | KA921537019 | BOLT | |
| 92200 | KA922007001 | WASHER | |
