Toro 74801 (Z18-52) - Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999) FUEL TANK AND CONTROL POD ASSEMBLY Spareparts

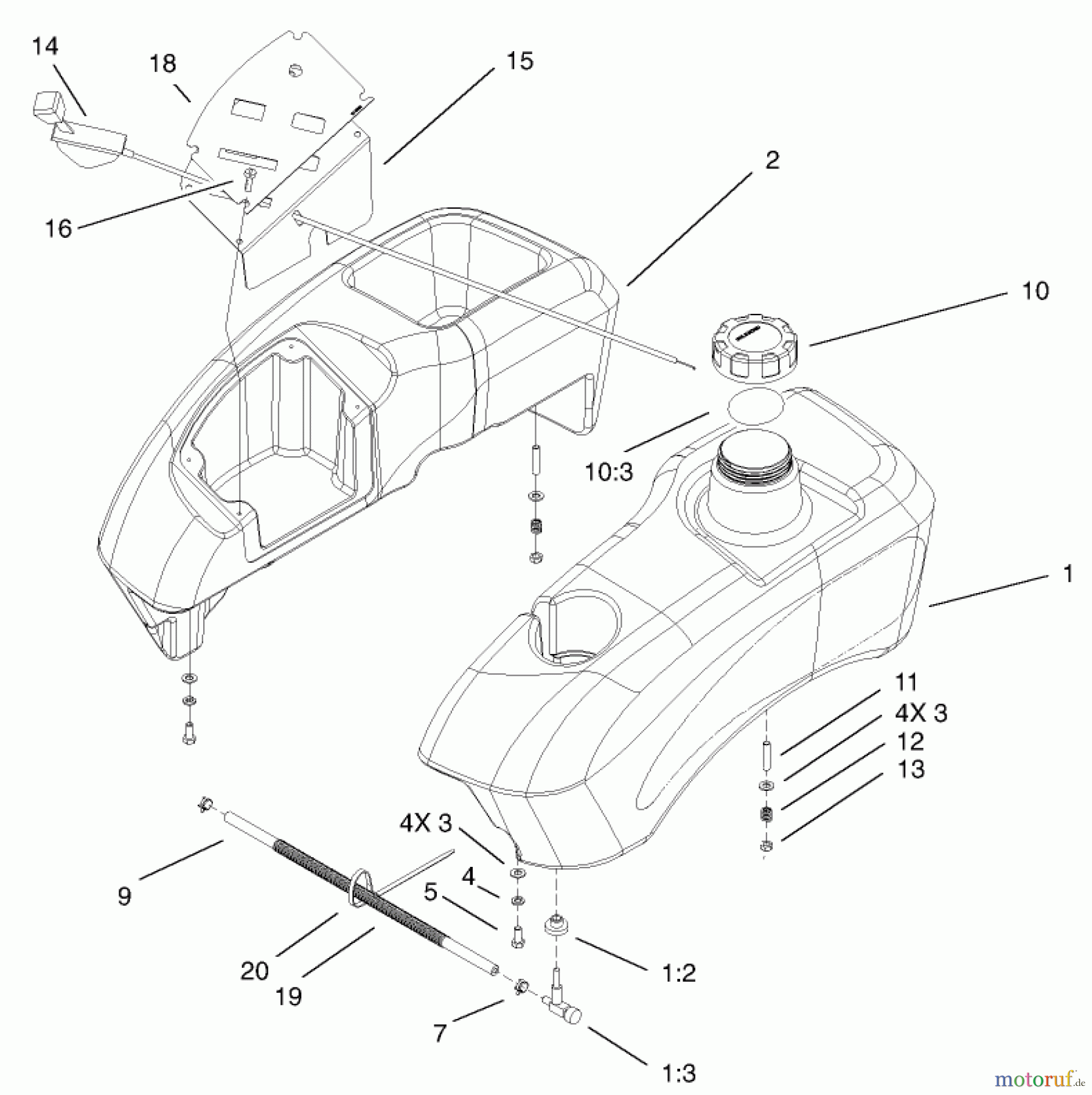

FUEL TANK AND CONTROL POD ASSEMBLY 74801 (Z18-52) - Toro Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999)

Toro Neu Mowers, Zero-Turn 74801 (Z18-52) - Toro Z18-52 TimeCutter Z Riding Mower, 2002 (220000001-220999999) FUEL TANK AND CONTROL POD ASSEMBLY
PosArticle NumberDescription
1 TR105-3403105-3494
1:2 TR46-6560BUSHING
1:3 TR104048Benzinhahn
2 TR104-3649TANK-CONSOLE
3 TR3256-23Scheibe
4 TR3253-4Federring
5 TR322-3Schraube
7 TR702355BRACKET-THATCHER
9 TR104-8060110-1872
10 TR88-3980Tankdeckel
10:3 TR88-4010Deckeldichtung
11 TR1-633023STUD
12 TR1-633349Feder
13 TR3296-47Mutter
14 TR104-8081CABLE-THROTTLE
15 TR104-3664-03PANEL-CONTROL
16 TR3250-14Schraube
18 TR104-8009PVC-SCHILD
19 TR105-1854Schutzhuelle
20 TR614249Kabelband
