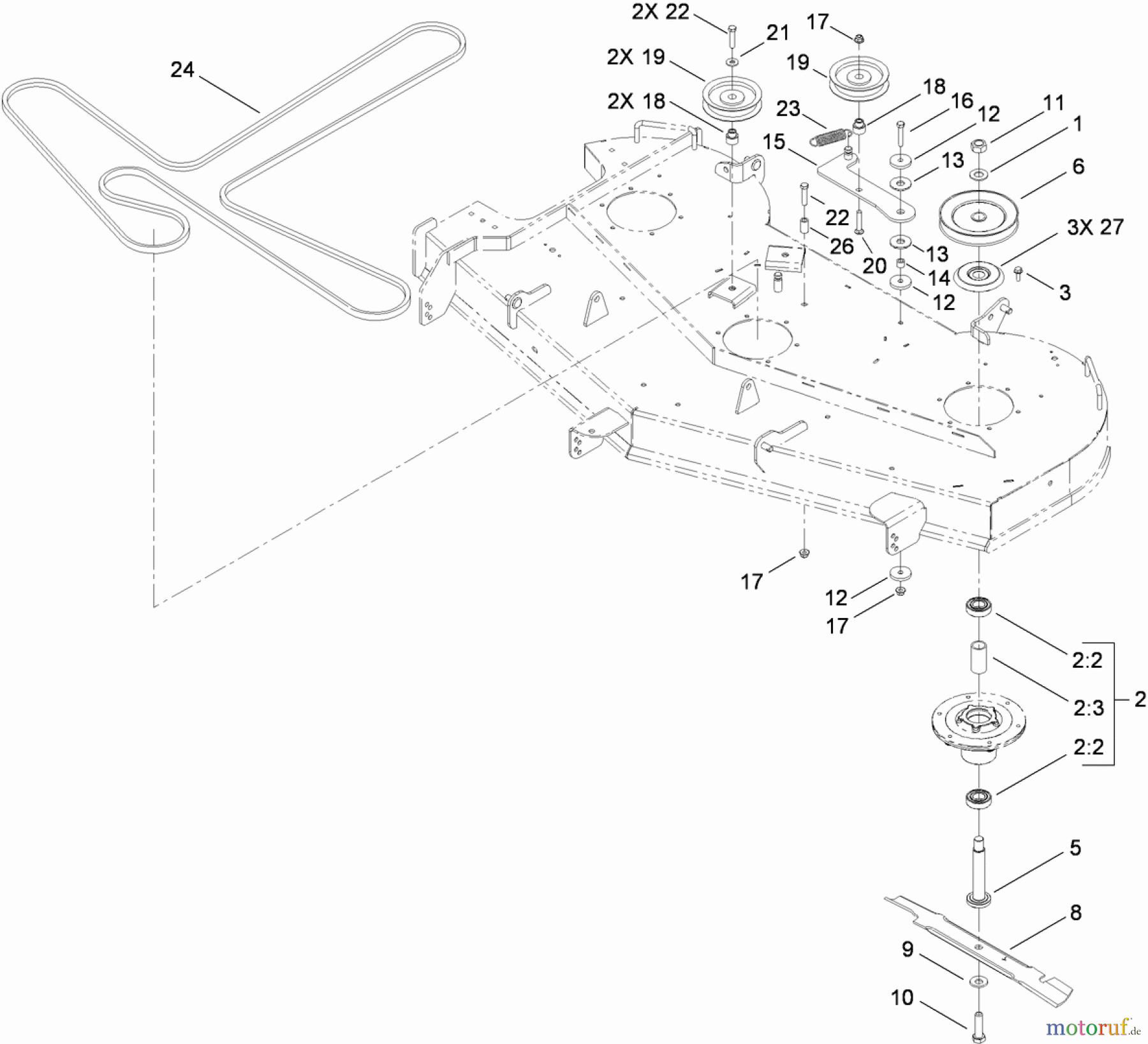

Toro 74824 (ZX6050) - TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) 60 INCH DECK SPINDLE AND BELT ASSEMBLY Spareparts

60 INCH DECK SPINDLE AND BELT ASSEMBLY 74824 (ZX6050) - Toro TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74824 (ZX6050) - Toro TITAN ZX6050 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) 60 INCH DECK SPINDLE AND BELT ASSEMBLY
PosArticle NumberDescription
1 TR7-4150WASHER
2 TR117-1250120-5477
2:2 TR104-6325Lager
2:3 TR115-2641SPACER-BEARING
3 Toro SchraubeTR32144-41Schraube
5 TR115-2642SHAFT-SPINDLE
6 TR115-4975PULLEY
8 TR115-9649-03BLADE-HI FLO, 20.5IN
9 TR22-8520WASHER-BELLEVILLE
10 TR51-4060Messerschraube
11 TR3219-7Mutter
12 TR110-9981WASHER-PLAIN
13 Toro WASHER-FRICTION, COMPOSITETR114-0463WASHER-FRICTION, COMPOSITE
14 TR1-413088BUSHING-LEVER, LIFT
15 TR115-5054IDLER ARM ASM
16 TR323-10Schraube
17 TR104-8301Mutter
18 TR115-2577BUSHING-IDLER
19 TR1-603843Spannrolle
20 TR3231-6SCHRAUBE
21 TR80-6990Scheibe
22 TR323-9Schraube
23 TR108-4056SPRING-EXTENSION
24 TR115-4972BELT-V
26 TR1-603401SPACER-FENDER
27 TR117-7210SHIELD-BEARING
