Toro 74832 (ZX5450) - TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) ENGINE ASSEMBLY Spareparts

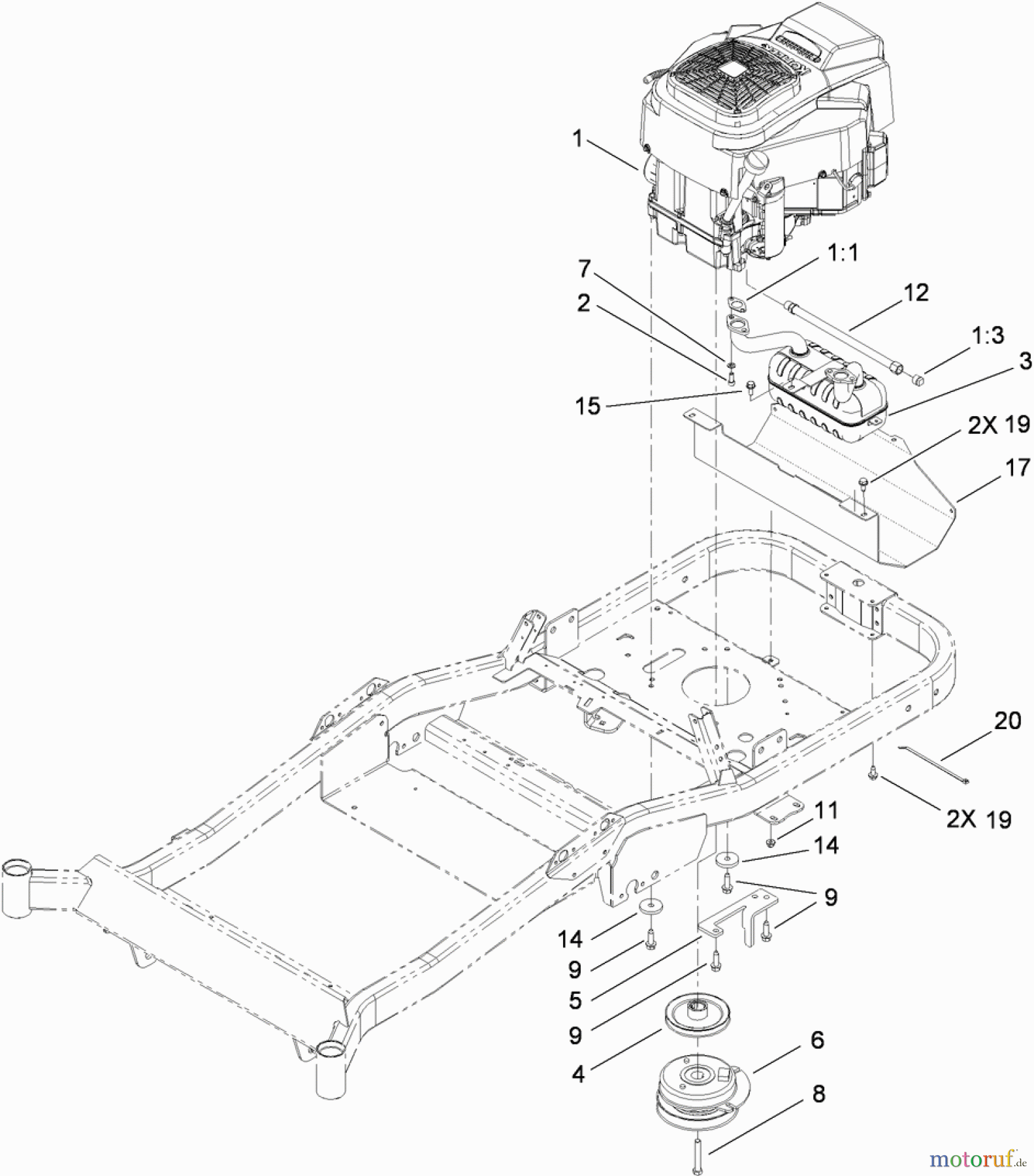

ENGINE ASSEMBLY 74832 (ZX5450) - Toro TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Zero-Turn 74832 (ZX5450) - Toro TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) ENGINE ASSEMBLY
PosArticle NumberDescription
1 TR
1:1 TR110-6697GASKET-EXHAUST
1:3 TR281-2Oelablass-Schraube
2 TR3274-10Schraube
3 TR117-7463MUFFLER-TWIN, KOHLER
4 TR125-5576
5 TR117-1269-03BRACKET-STOP, PTO
6 TR117-1252CLUTCH-PTO
7 TR3253-4Federring
8 TR32121-1Stift
9 TR32144-109Schraube
11 TR104-8300Mutter
12 TR117-1261OIL DRAIN HOSE ASM
14 TR110-9981WASHER-PLAIN
15 TR3234-47SCREW-HHF
17 TR117-5330-03SHIELD-HEAT
19 TR32144-70Schraube
20 TR614249Kabelband
