Toro 37770 - Power Max 724 OE Snowthrower, 2013 (SN 313000001-313999999) 24 INCH AUGER GEARCASE ASSEMBLY NO. 120-3859 Spareparts

24 INCH AUGER GEARCASE ASSEMBLY NO. 120-3859 37770 - Toro Power Max 724 OE Snowthrower, 2013 (SN 313000001-313999999)

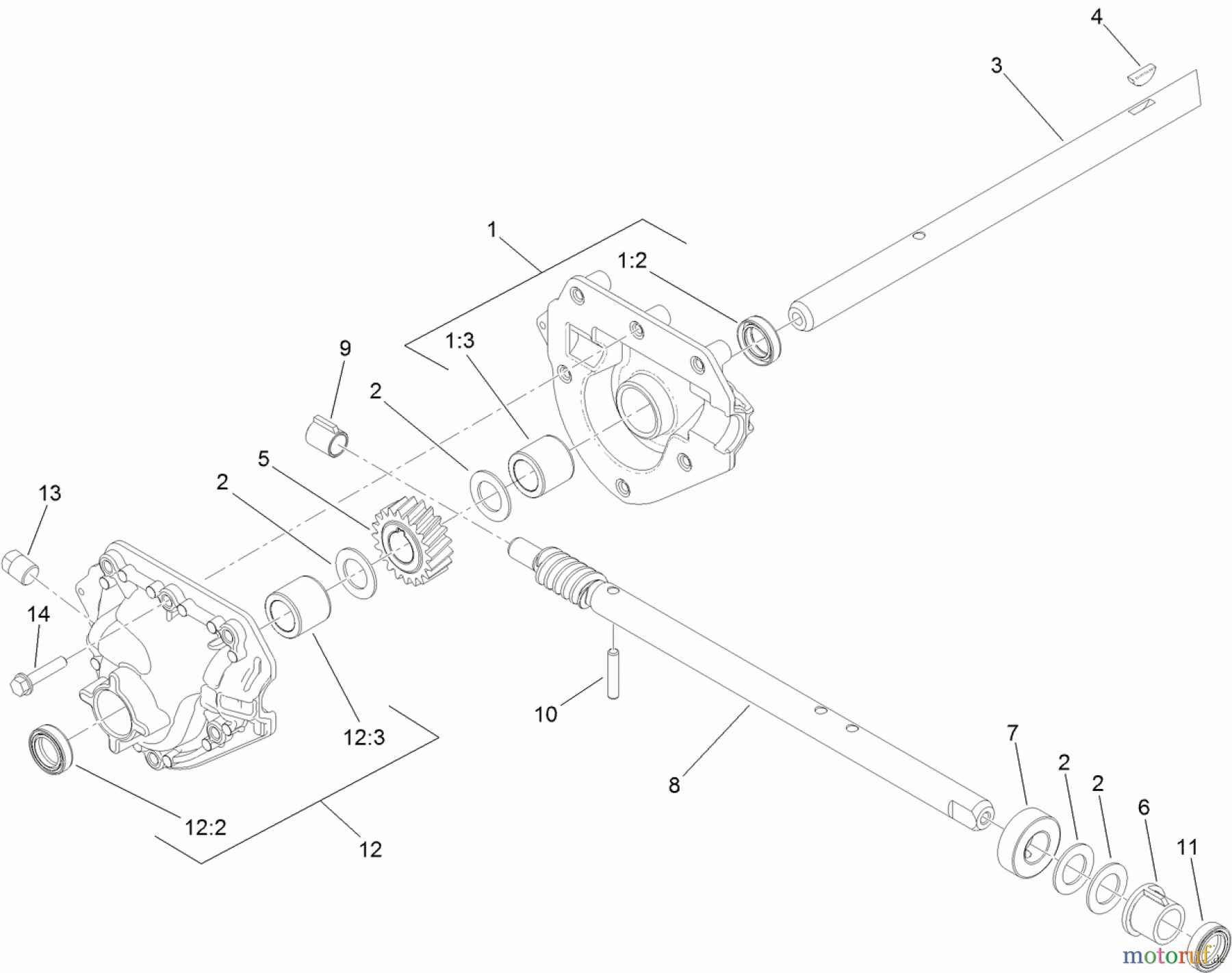

Toro Neu Snow Blowers/Snow Throwers Seite 1 37770 - Toro Power Max 724 OE Snowthrower, 2013 (SN 313000001-313999999) 24 INCH AUGER GEARCASE ASSEMBLY NO. 120-3859
PosArticle NumberDescription
1 TR121-1209
1:2 TR121-6634SEAL-SHAFT
1:3 TR120-9269
2 TR119-7640WASHER-THRUST
3 TR120-3858SHAFT-OUTPUT, AUGER
4 TR3257-5Keil
5 TR119-1576GEAR-HELICAL, 20 TOOTH
6 TR119-7635BUSHING-INPUT
7 TR119-7636COLLAR-THRUST
8 TR121-1234SHAFT-IMPELLER, ROLLED
9 TR62-1150Buechse
10 TR107-8899PIN-DOWEL
11 TR121-6634SEAL-SHAFT
12 TR121-1210
12:2 TR121-6634SEAL-SHAFT
12:3 TR120-9269
13 TR121-6832PLUG-PIPE, SQH
14 TR108-4862Schraube
