Toro 38116C (CR-20R) - CR-20 Snowthrower, 1987 (7000001-7999999) ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1622-M (MODEL NO. 38110C) Spareparts

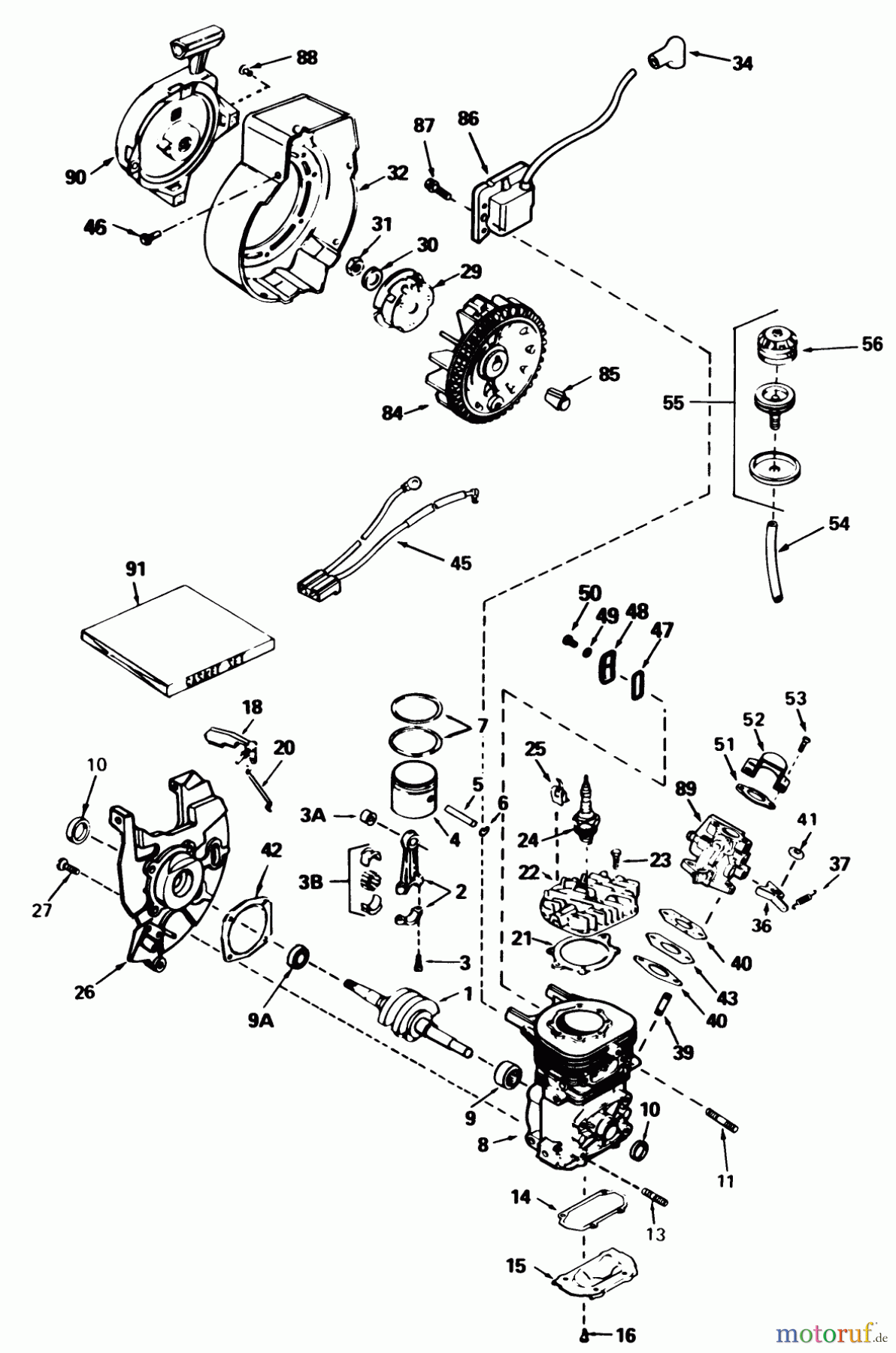

ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1622-M (MODEL NO. 38110C) 38116C (CR-20R) - Toro CR-20 Snowthrower, 1987 (7000001-7999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38116C (CR-20R) - Toro CR-20 Snowthrower, 1987 (7000001-7999999) ENGINE TECUMSEH MODEL NO. AH-600 TYPE 1622-M (MODEL NO. 38110C)
PosArticle NumberDescription
1 TC290571USE 00290607
2 TC310235BPLEUL
3 TC650633SCHRAUBE
3A TC530104ALAGER
3B TC530150BEARING
4 TC310283AKOLBEN U. BOLZEN
5 TC310264KOLBENBOLZEN
6 TC310167RET RING
7 TC310289AKOLBENRINGSATZ
9 TC530105CAGED BEARING
9A TC530110LAGER
10 TC510319SIMMERRING
11 TC650801STEHBOLZEN
13 TC650796STEHBOLZEN
14 TC510323GASKET
15 TC570644COVER PLATE
50 TC650579SCREW
18 TC490291AWINDFAHNE
20 TC490294REGLERGELENK
21 TC510274USE 510274A
22 TC250240AUSE 00250240B
23 TC650477SCREW
24 TC611049SPARK PLUG
25 TC611034CLIP
26 TC350396GEHAUSE
27 TC650561SCHRAUBE
29 TC590551STARTER CUP
30 TC650815WASHER
31 TC650390MUTTER
32 TC350397BLOWER HSG
34 TC610118KERZENSTECKER
36 TC570645STELLHEBEL
37 TC570646REGLERFEDER
39 TC650527CARB STUD
40 TC510326GASKET
41 TC650457NUT
42 TC510292GASKET
43 TC570438ADISTANZSTUECK
45 TC611065
46 TC650356SCREW
47 TC510325USE 510325A
48 TC570647DECKEL
49 TC650838FLAT WASHER
50 TC650579SCREW
51 TC35815GASKET
52 TC570434ABLENKBLECH
53 TC650229SCHRAUBE
54 TC32180CPRIMERLEITUNG
55 TC570629AUSE 00570629B
56 TC570629BPRIMER
84 TC611046AFLYWHEEL
85 TC611032DISTANZSTUECK
86 TC34443DLAMINATION
87 TC650814SCREW
89 TC632142AUSE 00632142B
90 TC590420ASTARTER
91 TC510324AUSE 510324B
