Toro 38518 (3650) - CCR 3650 GTS Snowthrower, 2007 (270010001-270999999) IMPELLER DRIVE ASSEMBLY Spareparts

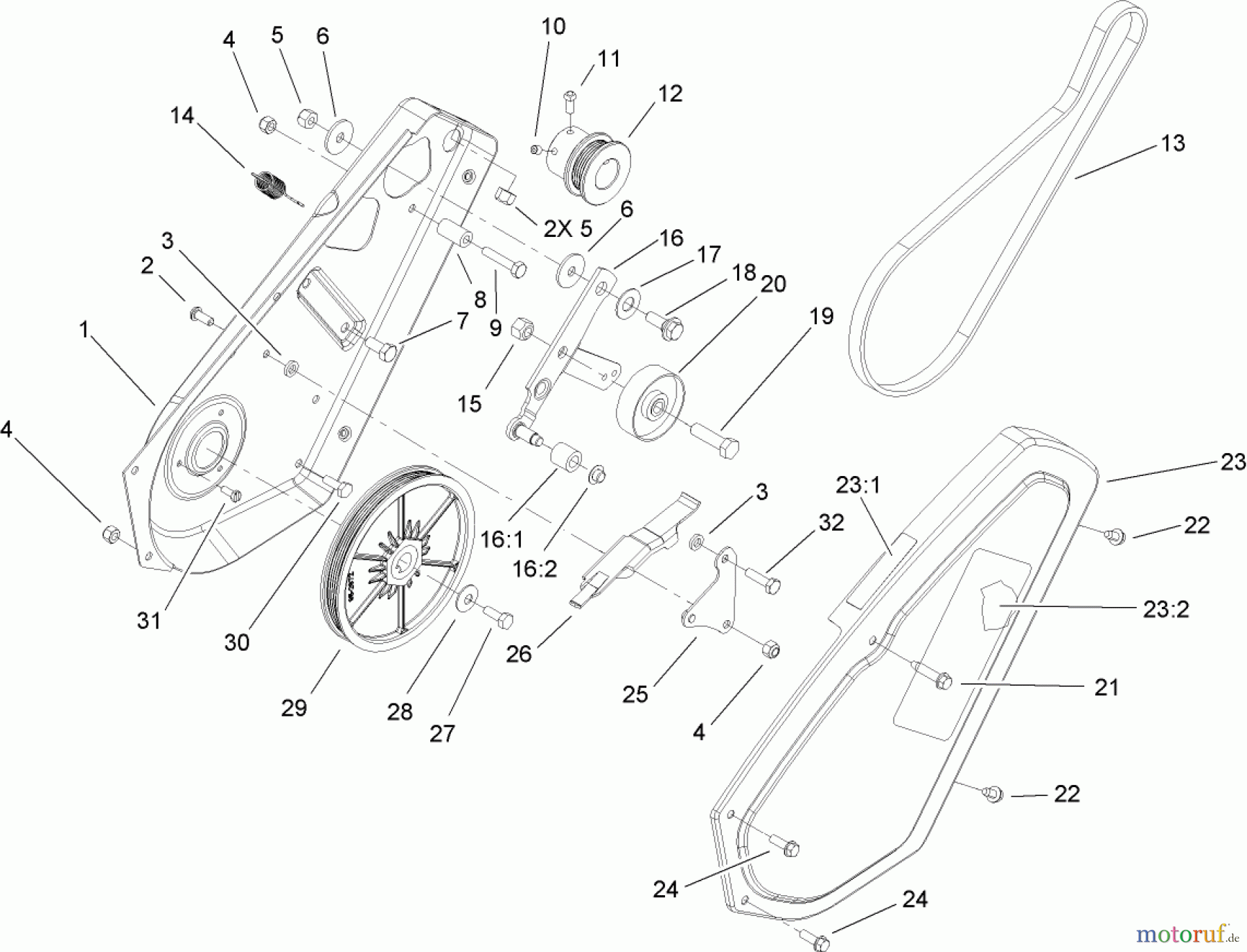

IMPELLER DRIVE ASSEMBLY 38518 (3650) - Toro CCR 3650 GTS Snowthrower, 2007 (270010001-270999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38518 (3650) - Toro CCR 3650 GTS Snowthrower, 2007 (270010001-270999999) IMPELLER DRIVE ASSEMBLY
PosArticle NumberDescription
1 TR55-8851-03PLATE-SIDE, LH
2 TR3274-31SCHRAUBE
3 TR55-9620Distanzscheibe
4 Toro MutterTR3296-42Mutter
5 Toro MutterTR3296-29Mutter
6 TR5-4460Scheibe
7 TR322-3Schraube
8 TR55-9530Riemenfuehrung
9 TR321-13Schraube
10 TR3245-32Schraube
11 TR3241-7Schraube
12 TR95-2673Riemenscheibe F.Motor
13 TR95-6151BELT-DRIVE
14 TR55-9280Feder
15 TR32152-2NUT-LOCK, CONE
16 TR105-3542Spannarm
16:1 TR55-9520Bremsrolle
16:2 Toro NUT-PUSHTR32112-11NUT-PUSH
17 TR25-5641WASHER
18 TR27-0410SCREW-SHOULDER
19 TR323-29Schraube
20 TR55-9290Spannrolle
21 TR32144-110Schraube
22 TR12-3270Schraube
23 TR105-1997COVER-DRIVE
23:1 TR104-2767Schild
23:2 TR60-9480DECAL
24 TR32105-15Schraube
25 TR55-9570Platte
26 TR55-9550BRAKE-ARM
27 TR321-30Schraube
28 TR3290-456Tellerscheibe
29 TR95-2672Riemenscheibe
30 Toro SchraubeTR321-4Schraube
31 TR32105-8SCREW-SHH
32 TR321-6Schraube
