Bestgreen BG 92 RBK 13H2765E655 (2017) Engine hood 5-Style to 16.11.2016 Spareparts

• Start
• Bestgreen
• Lawn tractors
• BG 92 RBK
• 13H2765E655 (2017)
• Engine hood 5-Style to 16.11.2016

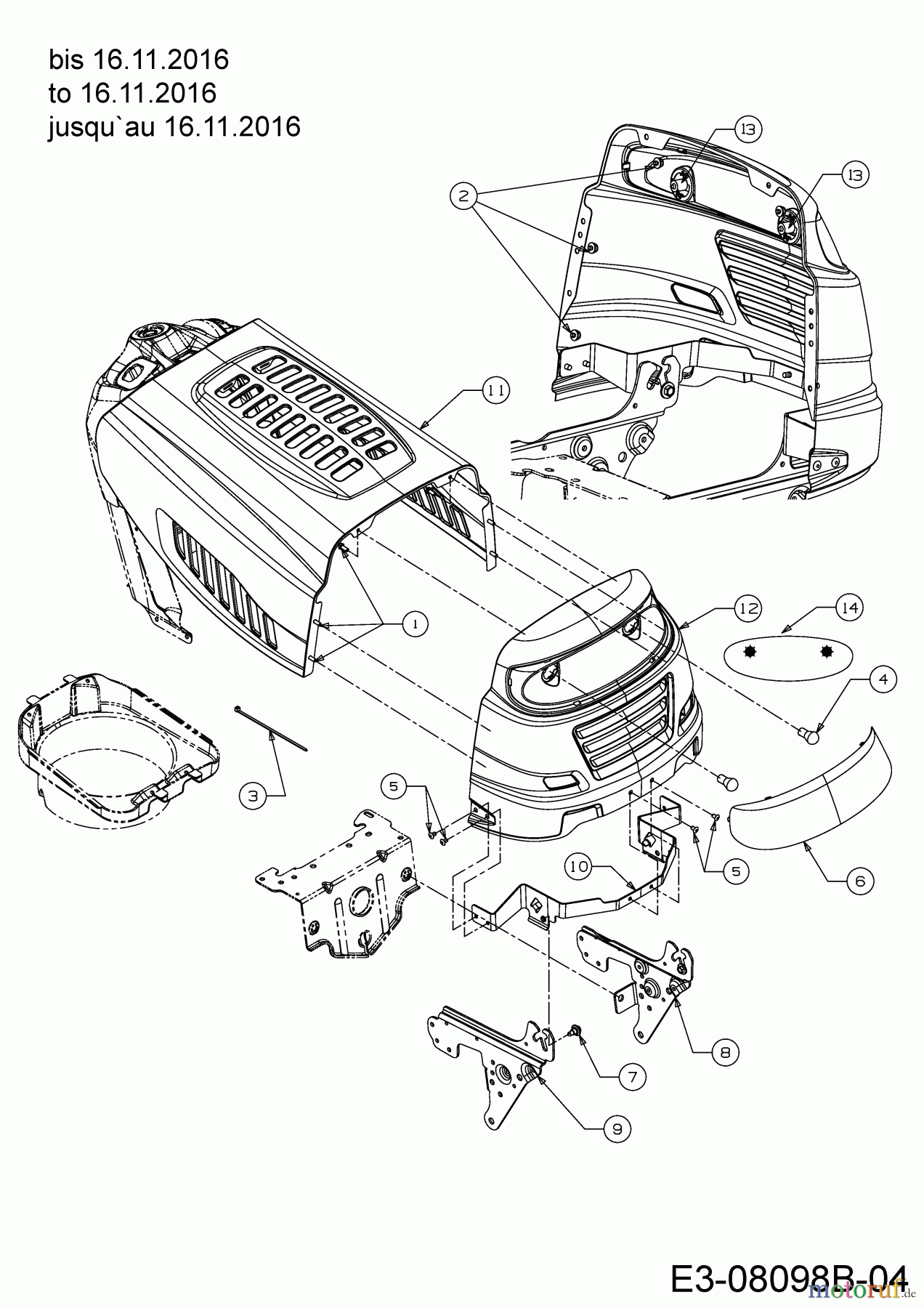

Engine hood 5-Style to 16.11.2016 13H2765E655 (2017)

Pos		Article Number	Description
1		710-0751	HHCS:1/4-20:.620:GR5:STD
2		712-04064	NUT:FLGLK:1/4-20:GRF:NYLON
3		725-0157	CBL:TIE: 3/16 X .05 X 7.4
4		725-0963	LAMP:#1156
5		728-04063	RIV:POP:6.4mm x 10mm
6		731-04949A	LENS:GRILL:1 STYLE
7		738-04091A	SCR:SHLDR:.43 x.29:TT:5/16-18
8		783-05417	BRKT:SUPT:PIVOT LH
9		783-05418	BRKT:SUPT:PIVOT RH
10		783-05454	BRKT:PIVOT:HOOD LT-5
11		783-05683	HOOD:5 STYLE
12		783-05685A
13		725-1649	SOC:LAM: 1/4 TURN
14		777X41984	LBL:RDR:1&5 STYLE:GRILL
